TECHNICAL INFORMATION

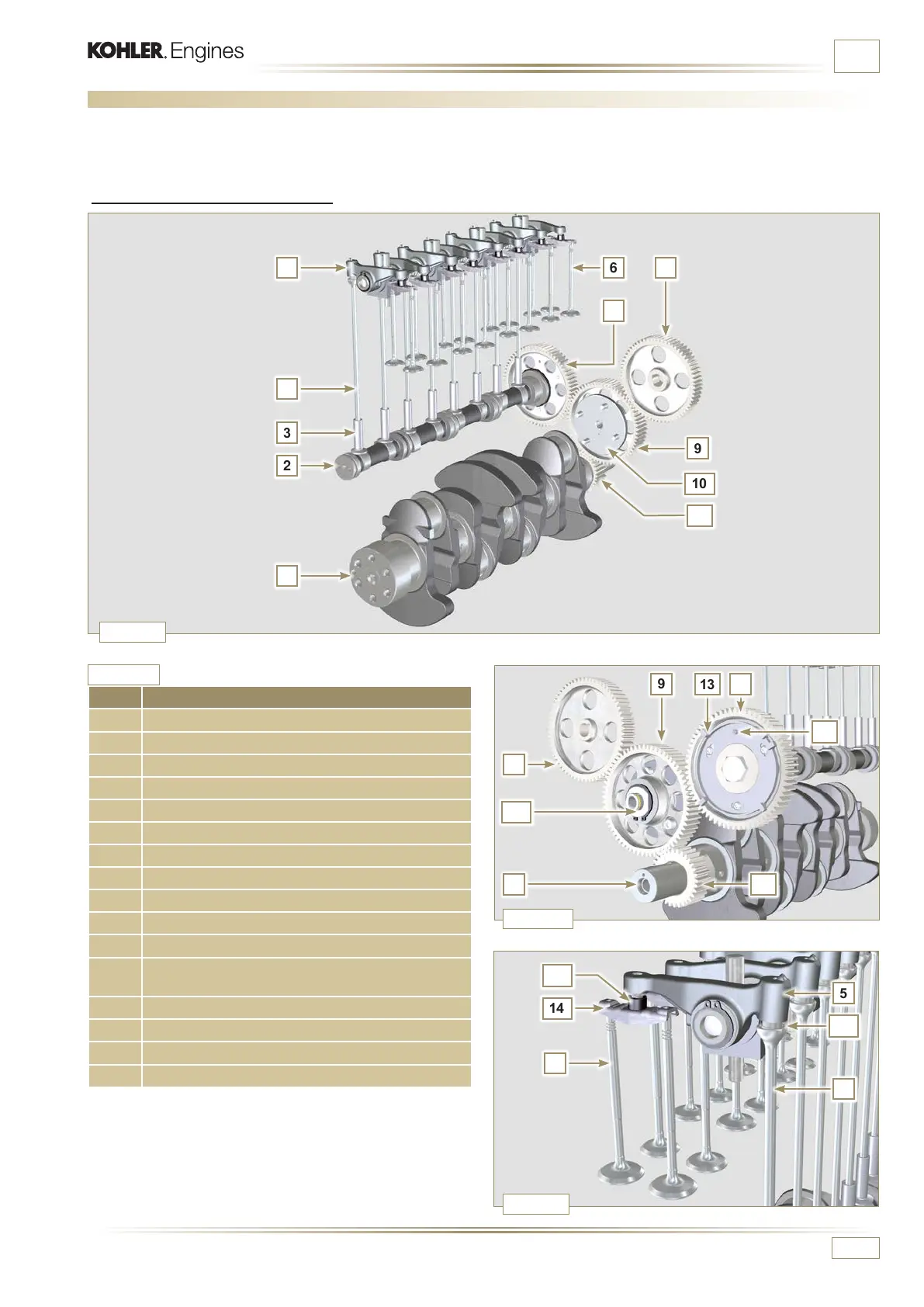

2.16 Timing system and tappets
The timing system is equipped with hydraulic tappets that automatically recover the operation of the rocker rods assembly. No
registration is therefore required.
2.16.1 Components identication
POS. DESCRIPTION
1 Crankshaft
2 Camshaft
3 Camshaft tappets
4 Rocker arm control rod
5 Rocker arms
6 Valves
7 High-pressure fuel injection gear pump control
8 Camshaft control gear
9 Intermediate gear
10 Intermediate gear pin
11 Crankshaft gear
12
Phonic wheel positioning reference pin on
camshaft
13 Camshaft phonic wheel
14 Valve control bridge
15 Articulation control valves
16 Hydraulic tappets
Tab. 2.39
