Kohler KDI Series

52
2
_07
Fig. 2.50
A1
A3
A2
A4
Fig. 2.50a
Fig. 2.50b
Fig. 2.50c
Fig. 2.50d
B
B
B
B
C
A1
A2
A3
A4
OUT
OUT
OUT
OUT
IN
IN
IN
IN
ED0053029590
TECHNICAL INFORMATION

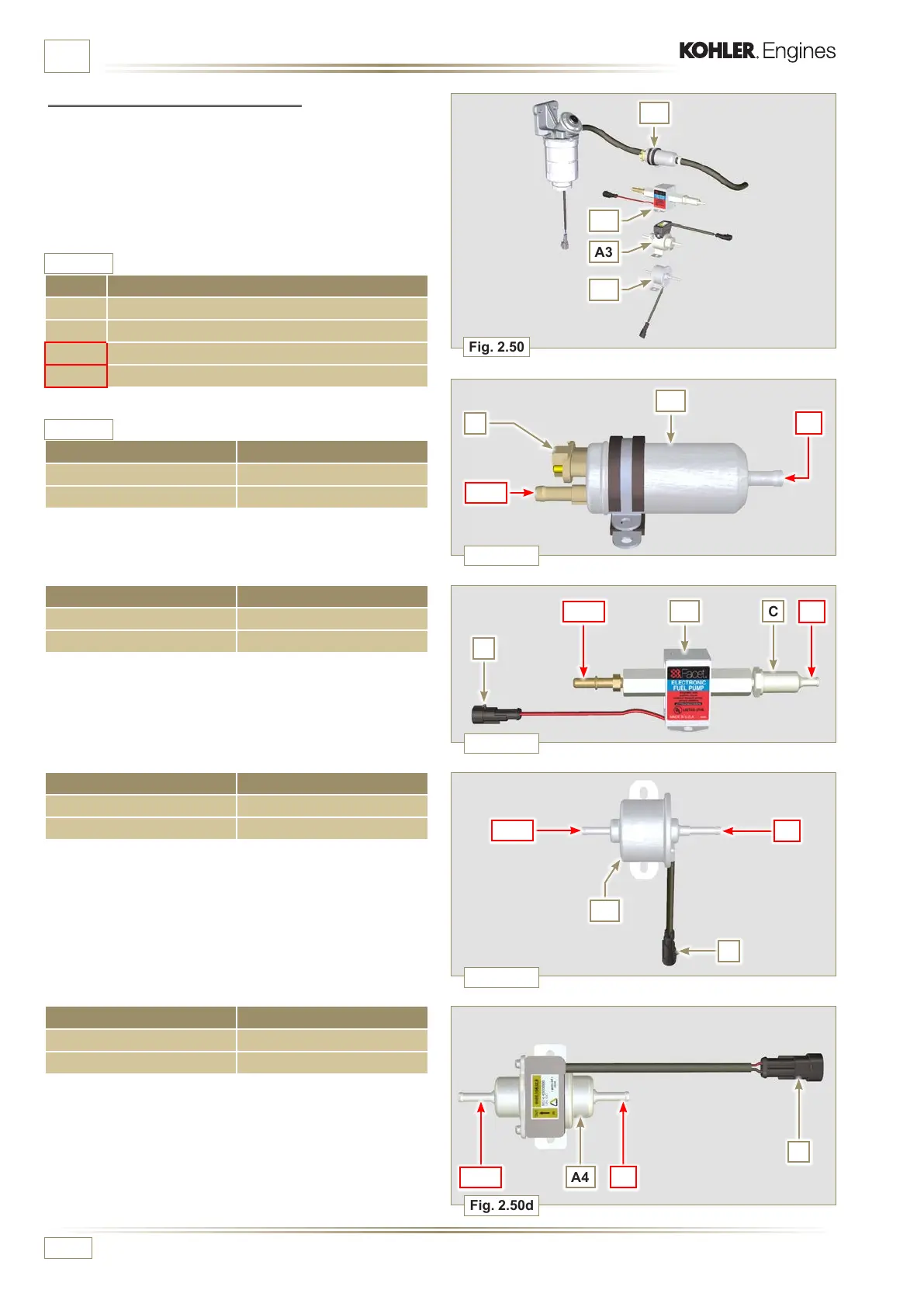

2.15.7 Electric fuel pump (optional)
NOTE: Component not necessarily supplied by KOHLER.
The electric pump is located before the fuel lter. One of the
following pumps can be assembled A1 - A2 - A3 - A4.
Tab. 2.38 indicates the pumps' features.
A1 VALUE
Voltage 12 - 24 V
Delivery 100 L/h @ 0.44 - 0.56 bar
A2 VALUE
Voltage 12 V
Delivery 60.56 L/h @ 0.41 bar
A3 VALUE
Voltage 12 V
Delivery 24 L/h @ 0.1 bar
A4 VALORE
Voltage 12 V
Delivery 30 L/h @ 0.4 bar
Tab. 2.38
Tab. 2.37
POS. DESCRIPTION
1 Electrical connection
2 Prelter pump
IN Ingoing tting (IN) from tank
OUT Outgoing tting (OUT) to fuel lter
