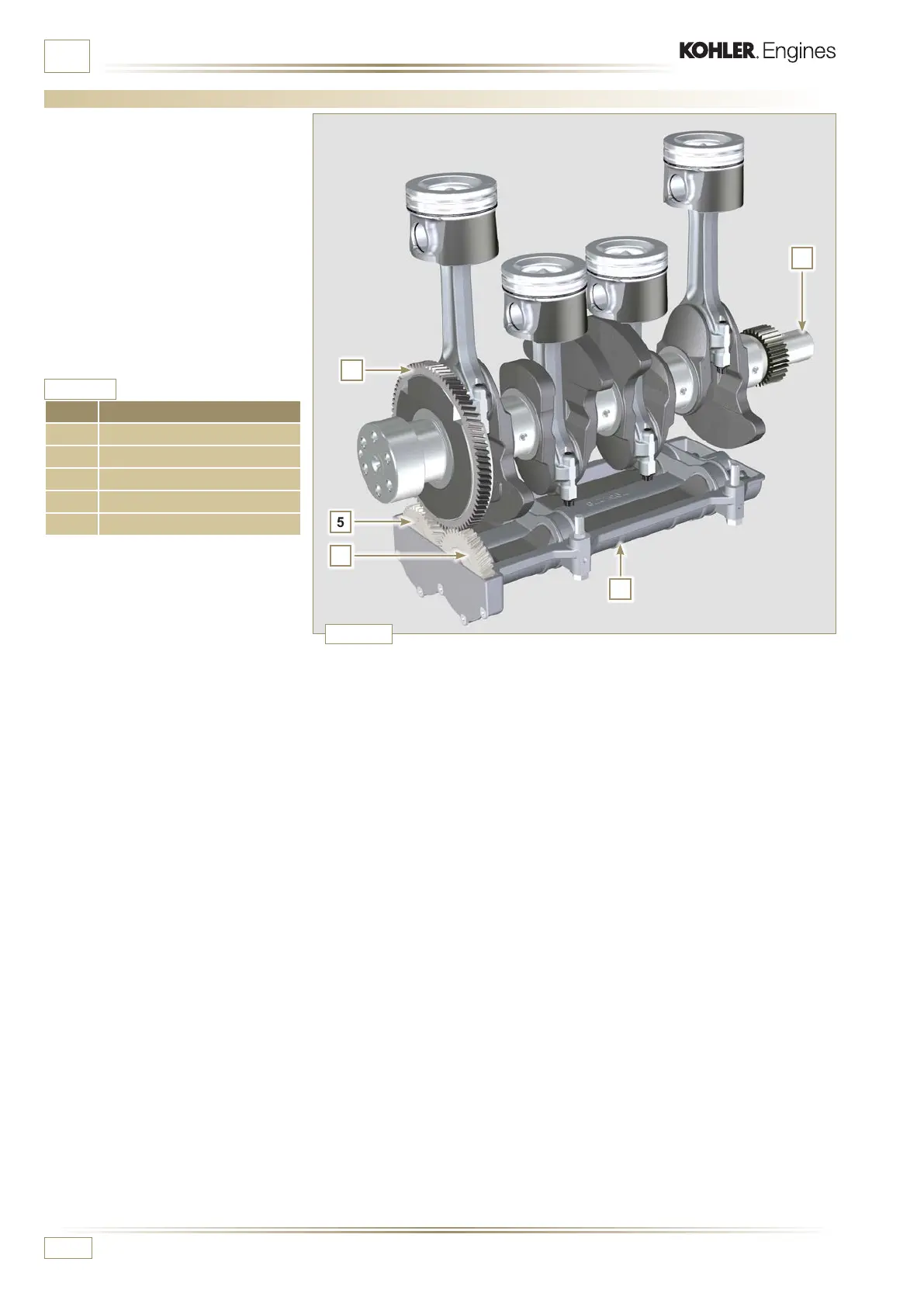

2.17 Balancer device (optional - only KDI 2504)
The balancer device is composed of
a special crankshaft that activates 2
additional shafts (balancers). Rotation of
the balancers, which have counterweights
that oppose the movement of alternating
weights (crankshaft - connecting rods -
pistons), reduces vibrations caused by
them.
The device is developed under the
crankshaft, xed on the crankcase, closed
by the oil sump.
Tab. 2.44
POS. DESCRIPTION
1 Crankshaft
2 Balancer shaft control gear
3 Balancer shaft support box
4 Conductor balance shaft
5 Conducted balance shaft
