Kohler MAGNUM M18

SECTION 10
INSPECTION AND RECONDITIONING
Check oil pump relief valve ball, seat and spring (refer NOTE: An oil relief valve repair kit is available which
to Figure 10-20). Ball and seat should be free of contains a new spring, check ball and sleeve.
nicks or burrs. Check spring for wear or distortion. Refer to your parts manual for correct kit part
Spring free length should be approximately .992". number.
Replace spring if distorted or wen.
GOVERNOR GEAR
а= саана v-
Crankcase (РТО End) Inspection
Inspect the governor gear teeth. Look for any evi-
dence of wom, chipped, or cracked teeth. If one or
more of these problems is noted, replace the governor
gear.

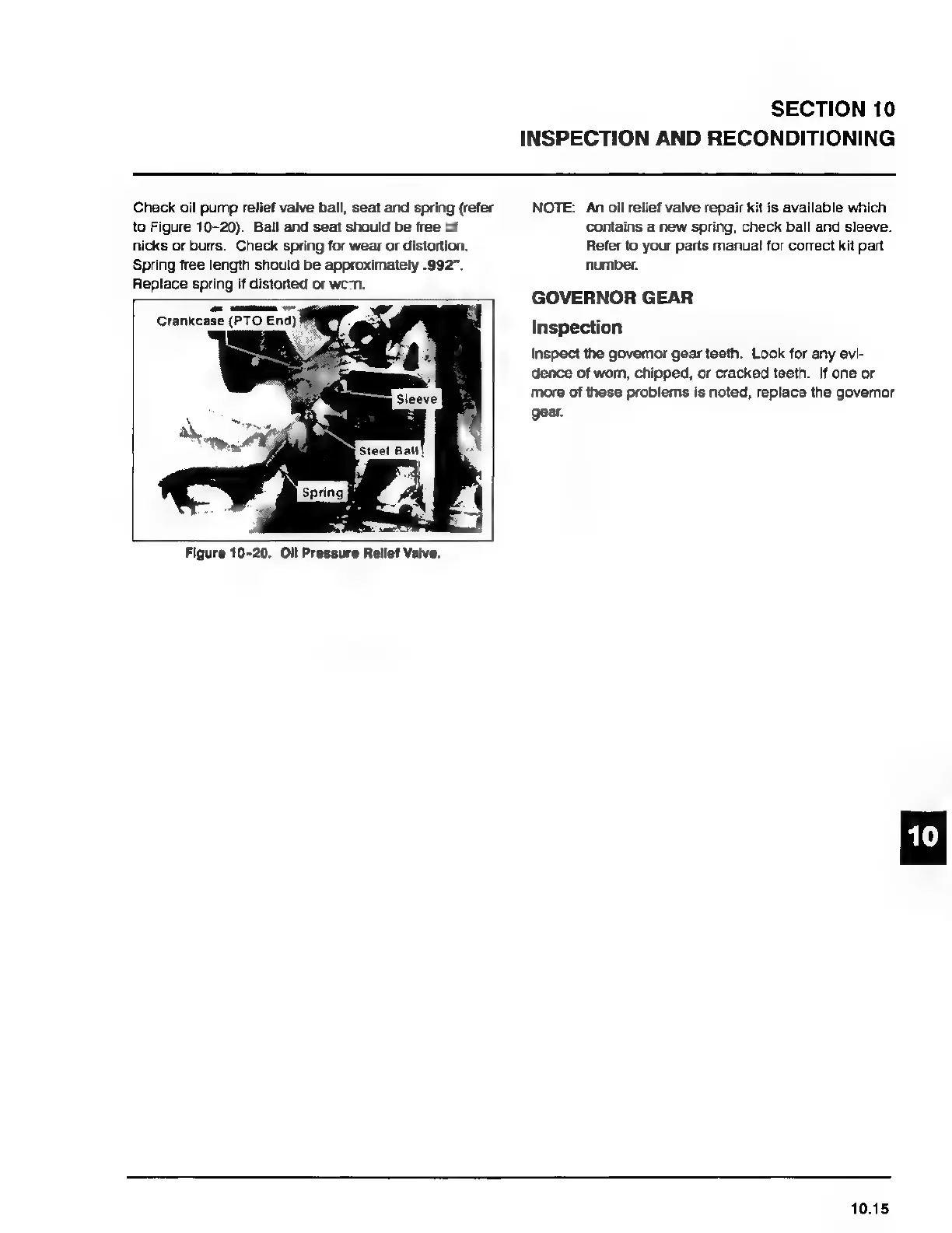

Figure 10-20. Olt Pressure Rellef Valve.
10.15
