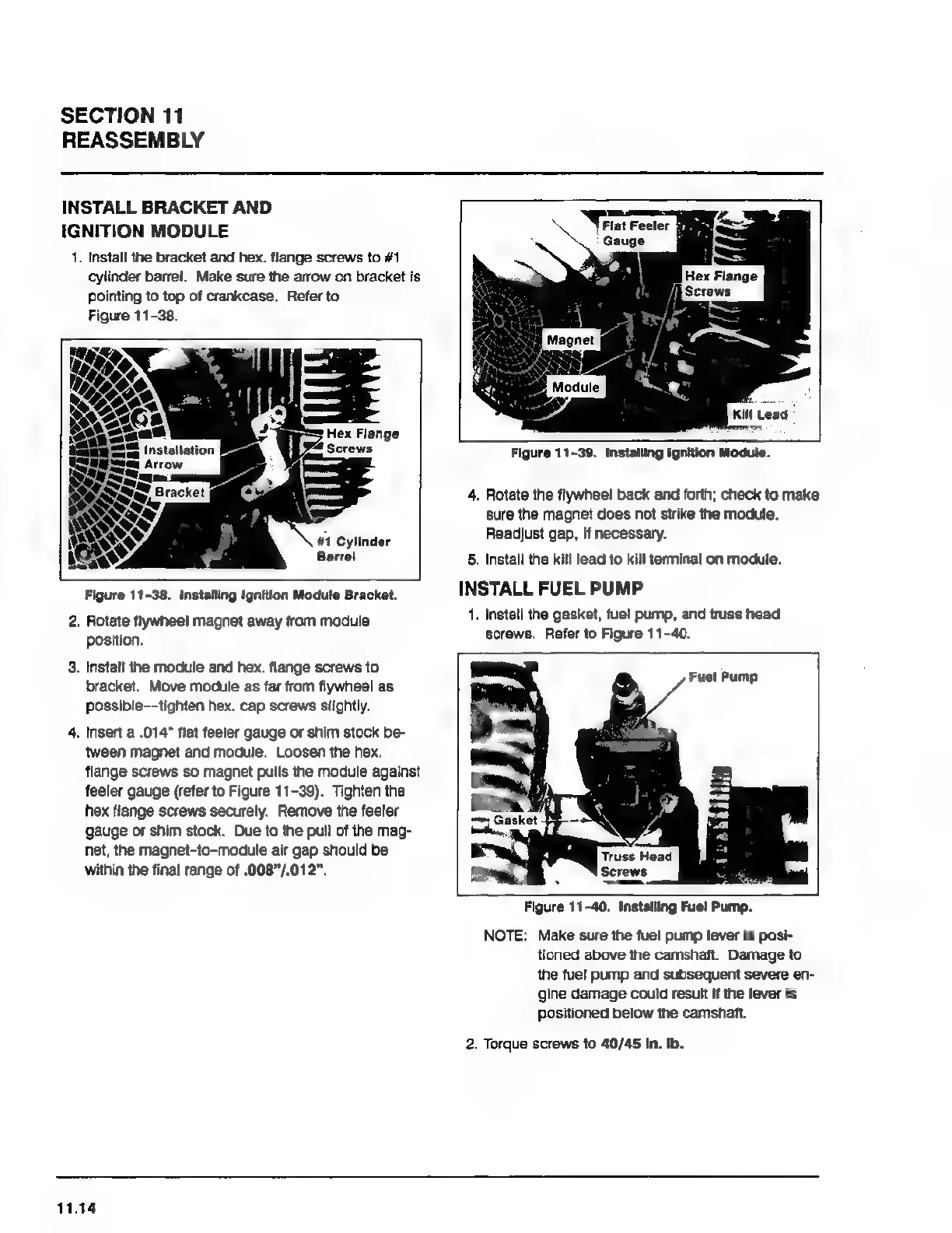

INSTALL BRACKET AND
IGNITION MODULE
1. Install the bracket and hex. flange screws to #1
cylinder barrel. Make sure the arrow on bracket is
pointing to top of crankcase. Refer to
Figure 11-38.
#1 Cylinder
Barrel
Figure 11-38. installing ignition Module Bracket.
Rotate flywheel magnet away from module
position.
ю
3. Install the module and hex. flange screws to
bracket. Move module as far from flywheel as
possible—tighten hex. cap screws slightly.
4. Insert a .014" flat feeler gauge or shim stock be-
tween magnet and module. Loosen the hex.
flange screws so magnet pulls the module against
feeler gauge (refer to Figure 11-39). Tighten the
hex flange screws securely. Remove the feeler
gauge or shim stock. Due to the pull of the mag-
net, the magnet-to-module air gap should be
within the final range of .008"/.012".
11.14
Bron Feeler 3
li Hex Flange
ih Screws
Figure 11-39. Installing ignition Module.
4. Rotate the flywheel back and forth; check to make
sure the magnet does not strike the module.
Readjust gap, if necessary.
5. install the kill lead to kill terminal on module.
INSTALL FUEL PUMP
1. Install the gasket, fuel pump, and truss head
screws. Refer to Figure 11-40.
Fuel Pump
Truss Head
Figure 11-40. Installing Fuel Pump.
NOTE: Make sure the fuel pump lever is posi-
tioned above the camshaft. Damage to
the fuel pump and subsequent severe en-
gine damage could result if the lever is
Positioned below the camshaft.
2. Torque screws to 40/45 In. Ib.
