Kohler MAGNUM M18

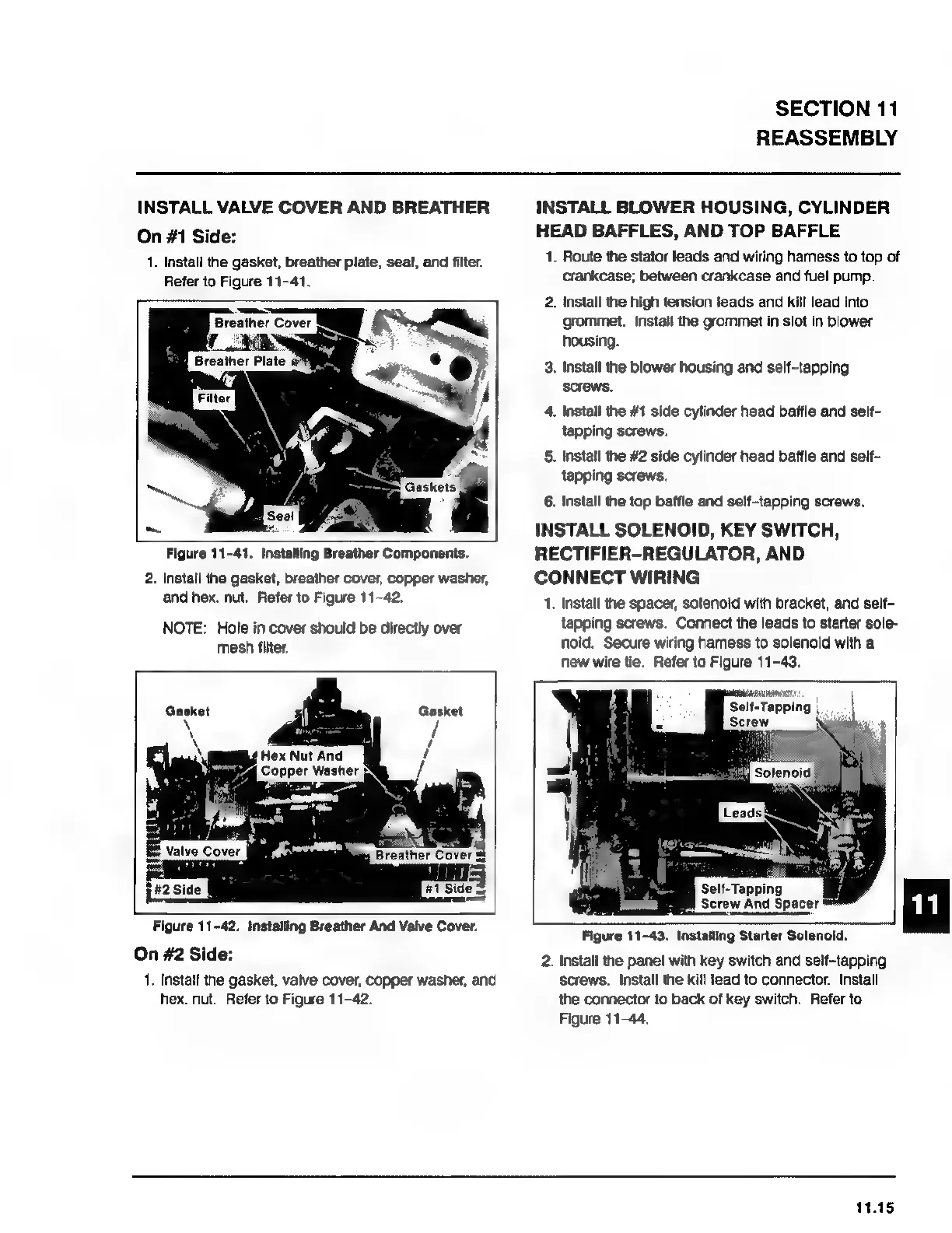

SECTION 11
REASSEMBLY
INSTALL VALVE COVER AND BREATHER
On #1 Side:
1. Install the gasket, breather plate, seal, and filter.
Refer to Figure 11-41.
—
Breather Cover
Figure 11-41. Installing Breather Components.
2. Install the gasket, breather cover, copper washer,
and hex. nut. Refer to Figure 11-42.
NOTE: Hole in cover should be directly over
mesh filter.
Hex Nut And
Copper Washer
La
Figure 11-42. Installing Breather And Valve Cover.
On £2 Side:
1. Instali the gasket, valve cover, copper washer, and
hex. nut. Refer to Figure 11-42.
INSTALL BLOWER HOUSING, CYLINDER
HEAD BAFFLES, AND TOP BAFFLE
1. Route the stator leads and wiring harness to top of
crankcase; between crankcase and fuel pump.
2. install the high tension leads and kill lead into
grommet. Install the grommet in slot in blower
housing.
3. Install the blower housing and self-tapping
screws.
4. Install the #1 side cylinder head baffle and self-
tapping screws.
5. Install the #2 side cylinder head baffle and self-
tapping screws.
6. Install the top baffle and self-tapping screws.
INSTALL SOLENOID, KEY SWITCH,
RECTIFIER-REGULATOR, AND
CONNECT WIRING
1. Install the spacer, solenoid with bracket, and self-
tapping screws. Connect the leads to starter sole-
noid. Secure wiring harness to solenoid with a
new wire tie. Refer to Figure 11-43.
а
Self-Tapping
Self-Tapping
Screw And Spacer
Figure 11-43. Installing Starter Solenoid.
2. Install the panel with key switch and seif-tapping
screws. Install the kill lead to connector. Install
the connector to back of key switch. Refer to
Figure 11-44.
11.15
