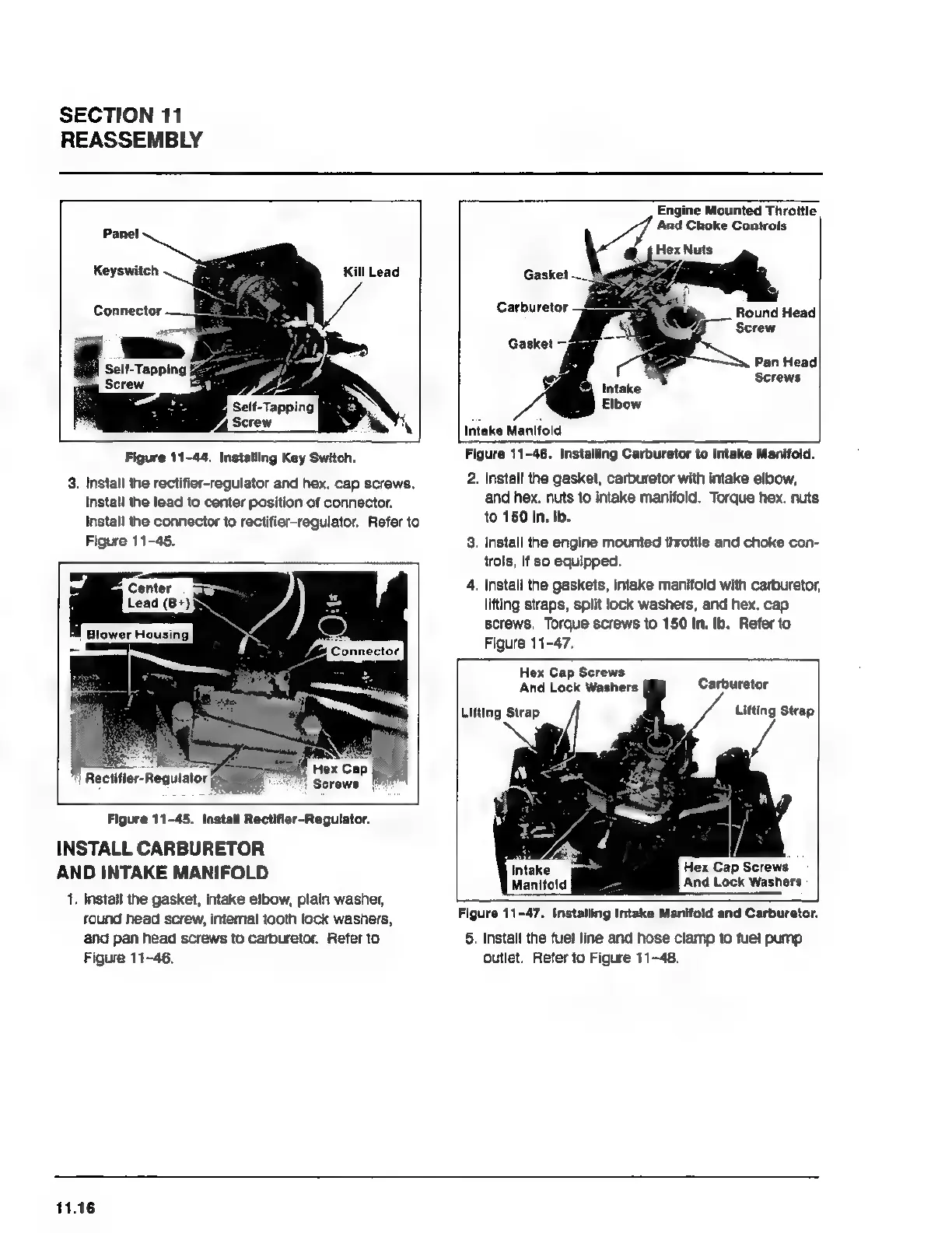

Kohler MAGNUM M18

SECTION 11
REASSEMBLY
Keyswitch Kill Lead
Connector
Self-Tapping
Screw
Engine Mounted Throttle
And Choke Controis
Round Head
Pan Head
Screws
Intake Manifold
Figure 11-44. Installing Key Switch.
3. Install the rectifier-regulator and hex. cap screws.
Install the lead to center position of connector.
Install the connector to rectifier-regulator. Refer to
Figure 11-45.
Figure 11-45. Install Rectifler-Regulator.
INSTALL CARBURETOR
AND INTAKE MANIFOLD
1. Install the gasket, intake elbow, plain washer,
round head screw, intemal tooth lock washers,
and pan head screws to carburetor. Refer to
Figure 11-46.
11.16
Figure 11-46. Installing Carburetor to Intake Manifold.
2. Install the gasket, carburetor with intake elbow,
and hex. nuts to intake manifold. Torque hex. nuts
to 150 In. Ib.
3. Install the engine mounted throttle and choke con-
trols, if so equipped.
4. Install the gaskets, intake manifold with carburetor,
lifting straps, split lock washers, and hex. cap
screws. Torque screws to 150 In. Ib. Refer to
Figure 11-47.
Hex Cap Screws
And Lock Washers @
Lifting Strap
Carburetor
Lifting Strap
intake
Hex
Cap
Screws
Manitold
And
Lock
Washers
Figure 11-47. Installing Intake Manifold and Carburetor.
5. Install the fuel line and hose clamp to fuel pump
outlet. Refer to Figure 11-48.
