Kohler MAGNUM M18

Speed Control :
Lever Carburetor
Governor
| Linkage
Intake
Manifold

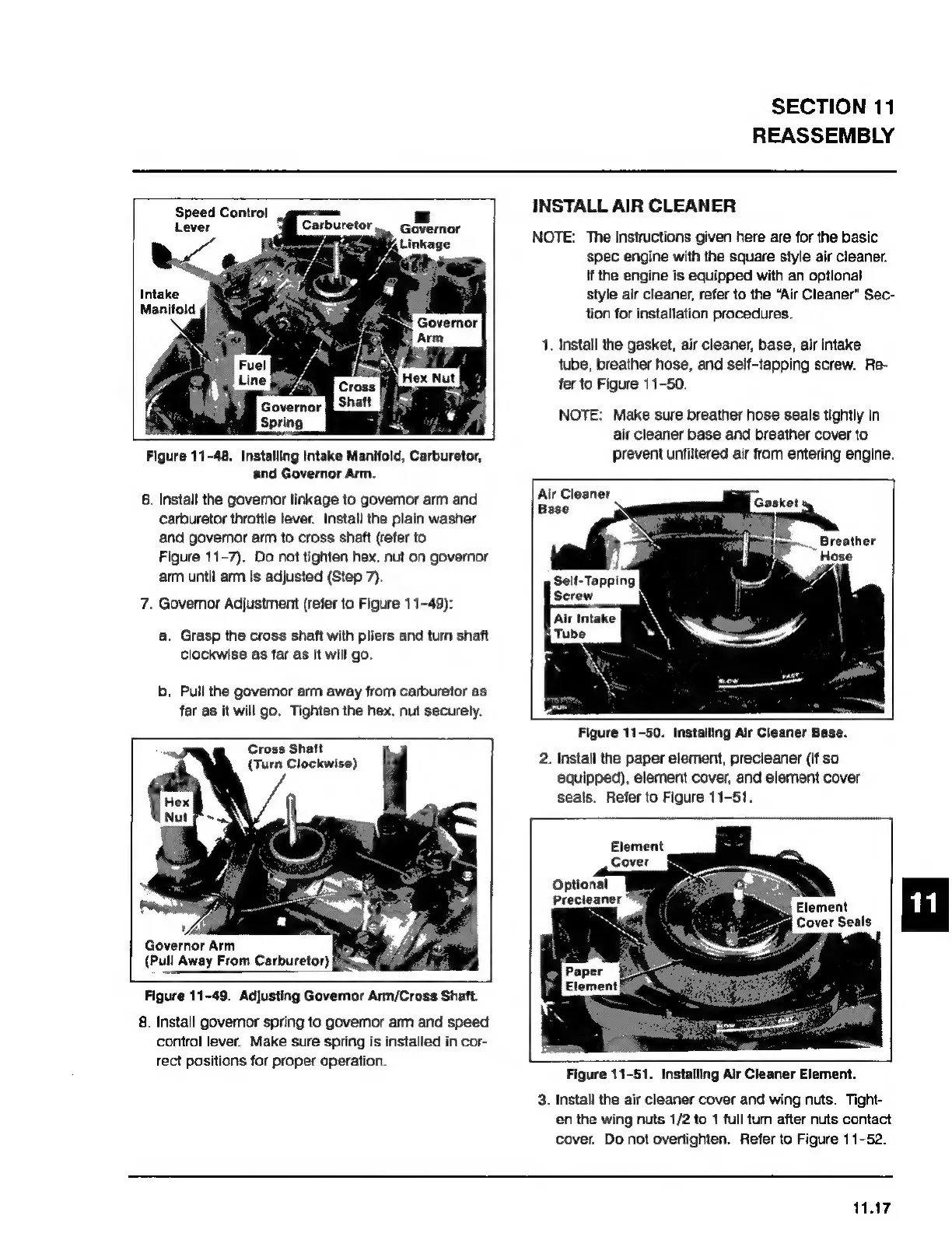

Figure 11-48. Installing Intake Manifold, Carburetor,
and Governor Arm.
6. Install the govemor linkage to governor arm and
carburetor throttle lever. Install the plain washer
and governor arm to cross shaft (refer to
Figure 11-7). Do not tighten hex. nut on governor
arm until arm is adjusted (Step 7).
7. Governor Adjustrnent (refer to Figure 11-49):
a. Grasp the cross shaft with pliers and turn shaft
Clockwise as far as it will go.
b. Pull the govemor arm away from carburetor as
far as it will go. Tighten the hex. nut securely.
Cross Shaft
(Turn Clockwise)
Governor Arm
(Pull Away From Carburetor)
Figure 11-49. Adjusting Governor Arm/Cross Shaft.
8. Install governor spring to governor arm and speed
control lever. Make sure spring is installed in cor-
rect positions for proper operation.
SECTION 11
REASSEMBLY
INSTALL AIR CLEANER
NOTE: The Instructions given here are for the basic
spec engine with the square style air cleaner.
If the engine is equipped with an optional
style air cleaner, refer to the "Air Cleaner" Sec-
tion for installation procedures.
1. Install the gasket, air cleaner, base, air intake
tube, breather hose, and self-tapping screw. Re-
fer to Figure 11-50.
NOTE: Make sure breather hose seals tightly in
air cleaner base and breather cover to
prevent unfiltered air from entering engine.
Air Cleaner
Base
., Breather
Hose
Self-Tapping
Screw
Figure 11-50. Installing Air Cleaner Base.
2. Install the paper element, precteaner (if so
equipped), element cover, and element cover
seals. Refer to Figure 11-51.
Element
Cover #
Optional
Precleaner
Figure 11-51. Installing Alr Cleaner Element.
3. Install the air cleaner cover and wing nuts. Tight-
en the wing nuts 1/2 to 1 full turn after nuts contact
cover. Do not overtighten. Refer to Figure 11-52.
