Kohler MAGNUM M18

SECTION 11
REASSEMBLY
Air Cleaner
Cover

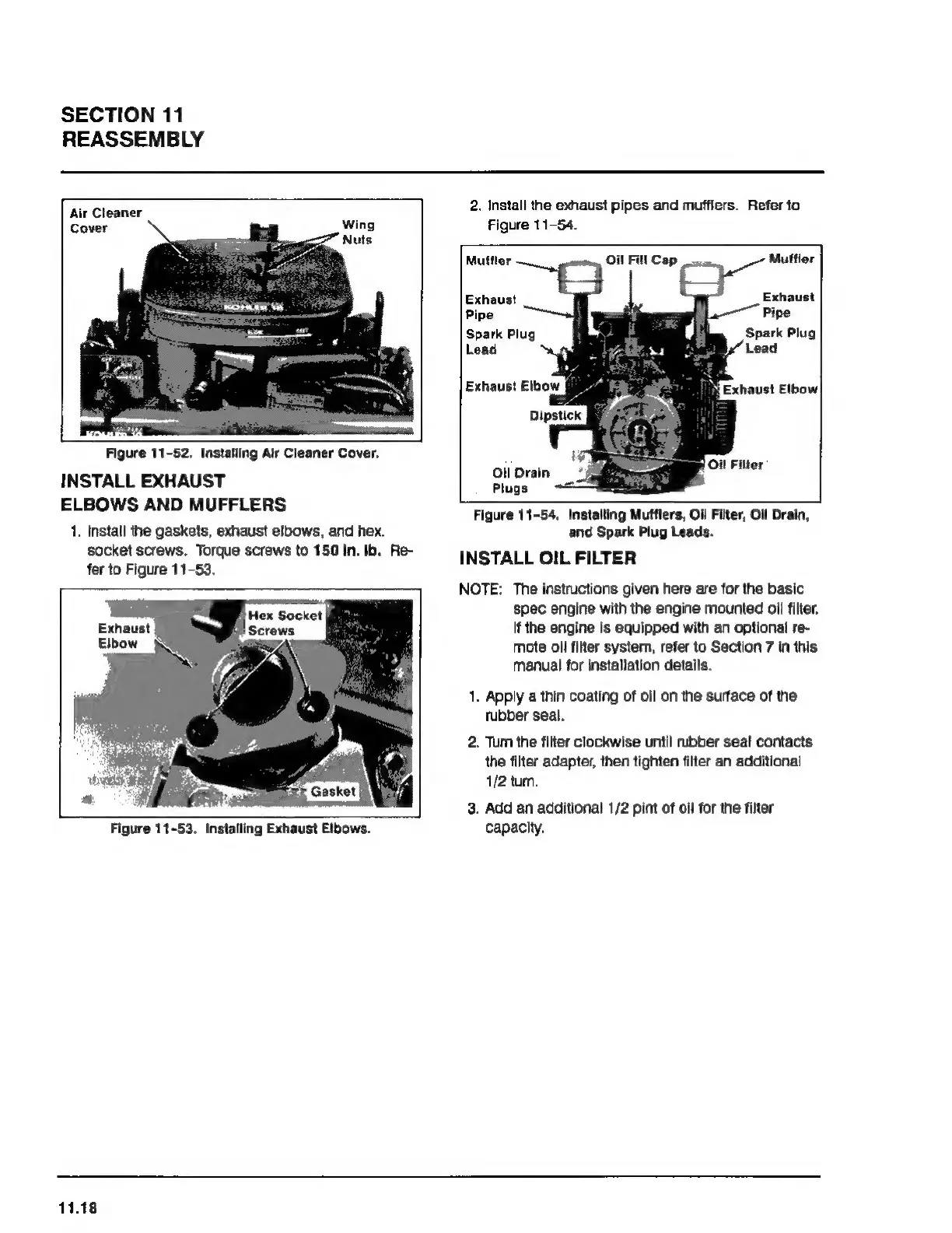

Figure 11-52. Installing Alr Cleaner Cover.
INSTALL EXHAUST
ELBOWS AND MUFFLERS
1. Install the gaskets, exhaust elbows, and hex.
socket screws. Torque screws to 150 In. Ib. Re-
fer to Figure 11-53.
I Hex Socket |
he Screws
Exhaust
Elbow
Figure 11-53. Installing Exhaust Elbows.
11.18
2. Install the exhaust pipes and mufflers. Refer to
Figure 11-54.
Muffler Muffler
Exhaust
Exhaust
Pipe
=
Pipe
Spark
Plug
Spark
Plug
Lead
А
:
Lead
Exhaust Elbow
КОП! Filter
Oil Drain
Plugs
Figure 11-54. Installing Mufflers, Ой Filter, Oil Drain,
and Spark Plug Leads.
INSTALL OIL FILTER
NOTE: The instructions given here are for the basic
spec engine with the engine mounted oil filter.
If the engine is equipped with an optional re-
mote oil filter system, refer to Section 7 in this
manual for installation details.
1. Apply a thin coating of oil on the surface of the
rubber seal.
2. Tum the filter clockwise until rubber seal contacts
the filter adapter, then tighten filter an additional
1/2 tum.
3. Add an additional 1/2 pint of oil for the filter
capacity.
