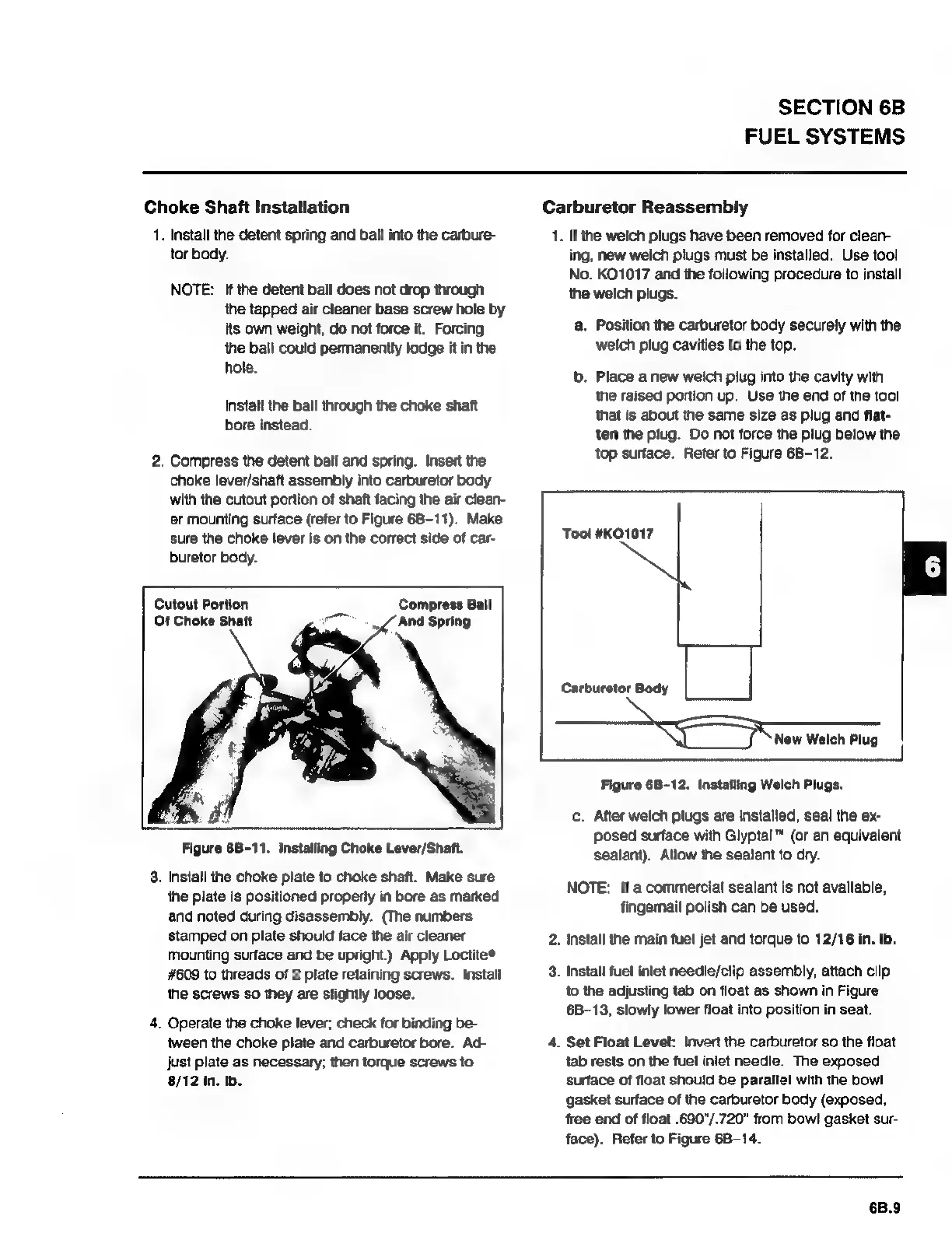

Choke
Shaft
Installation
1.
Install
the
detent
spring
and
ball into
the
carbure-
tor
body.
NOTE:
If
the
detent
ball
does
not
drop
through
the
tapped
air
cleaner
base
screw
hole
by
its
own
weight,
do
not
force
it.
Forcing
the
ball
could
permanently
lodge
it
in
the
hole.
Install
the
ball
through
the
choke
shaft
bore
instead.
2.
Compress
the
detent
ball
and
spring.
Insert
the
choke
lever/shaft
assembly
into
carburetor
body
with
the
cutout
portion
of
shaft
facing
the
air
clean-
er
mounting
surface
(refer
to
Figure
6B-11).
Make
sure
the
choke
lever
is
on
the
correct
side
of
car-
buretor
body.
Compress
Bail
And
Spring
Cutout
Portion
Ot
Choke
Shaft
Figure
68-11.
installing
Choke
Lever/Shaft.
3.
Install
the
choke
plate
to
choke
shaft.
Make
sure
the
plate
is
positioned
properly
in
bore
as
marked
and
noted
during
disassembly.
(The
numbers
stamped
on
plate
should
face
the
air
cleaner
mounting
surface
and
be
upright.)
Apply
Loctite®
#609
to
threads
of
2
plate
retaining
screws.
Install
the
screws
so
they
are
slightly
loose.
4,
Operate
the
choke
lever;
check
for
binding
be-
tween
the
choke
plate
and
carburetor
bore.
Ad-
just
plate
as
necessary;
then
torque
screws
to
8/12
in. Ib.
SECTION
6B
FUEL
SYSTEMS
Carburetor
Reassembly
1.
If
the
welch
plugs
have
been
removed
for
сіеаг-
ing,
new
welch
plugs
must
be
installed.
Use
tool
No.
KO1017
and
the
following
procedure
to
install
the
welch
plugs.
a.
Position
the
carburetor
body
securely
with
the
welch
plug
cavities
to
the
top.
b.
Place
a
new
welch
plug
into
the
cavity
with
the
raised
portion
up.
Use
the
end
of
the
tool
that
is
about
the
same
size
as
plug
and
flat-
ten
the
plug.
Do
not
force
the
plug
below
the
top
surface.
Refer
to
Figure
6B-12.
Tool
#KO1017
Carburetor
Body
New
Welch
Plug
Figure
6B-12.
Installing
Welch
Plugs.
c.
After
welch
plugs
are
installed,
seal
the
ex-
posed
surface
with
Glyptal™
(or
an
equivalent
sealant).
Allow
the
sealant
to
dry.
NOTE:
If
a
commercial
sealant
is
not
available,
fingemail
polish
can
be
used.
2.
Install
the
main
fuel
jet
and
torque
to
12/16
in. Ib.
3.
Install
fuel
inlet
needle/clip
assembly,
attach
clip
to
the
adjusting
tab
on
float
as
shown
in
Figure
6B-13,
slowly
lower
float
into
position
in
seat.
4.
Set
Float
Level:
Invert
the
carburetor
so
the
float
tab
rests
on
the
fuel
inlet
needle.
The
exposed
surface
of
float
should
be
parallel
with
the
bowl
gasket
surface
of
the
carburetor
body
(exposed,
free
end
of
float
.690"/.720"
from
bowl
gasket
sur-
face).
Refer
to
Figure
6B-14.
