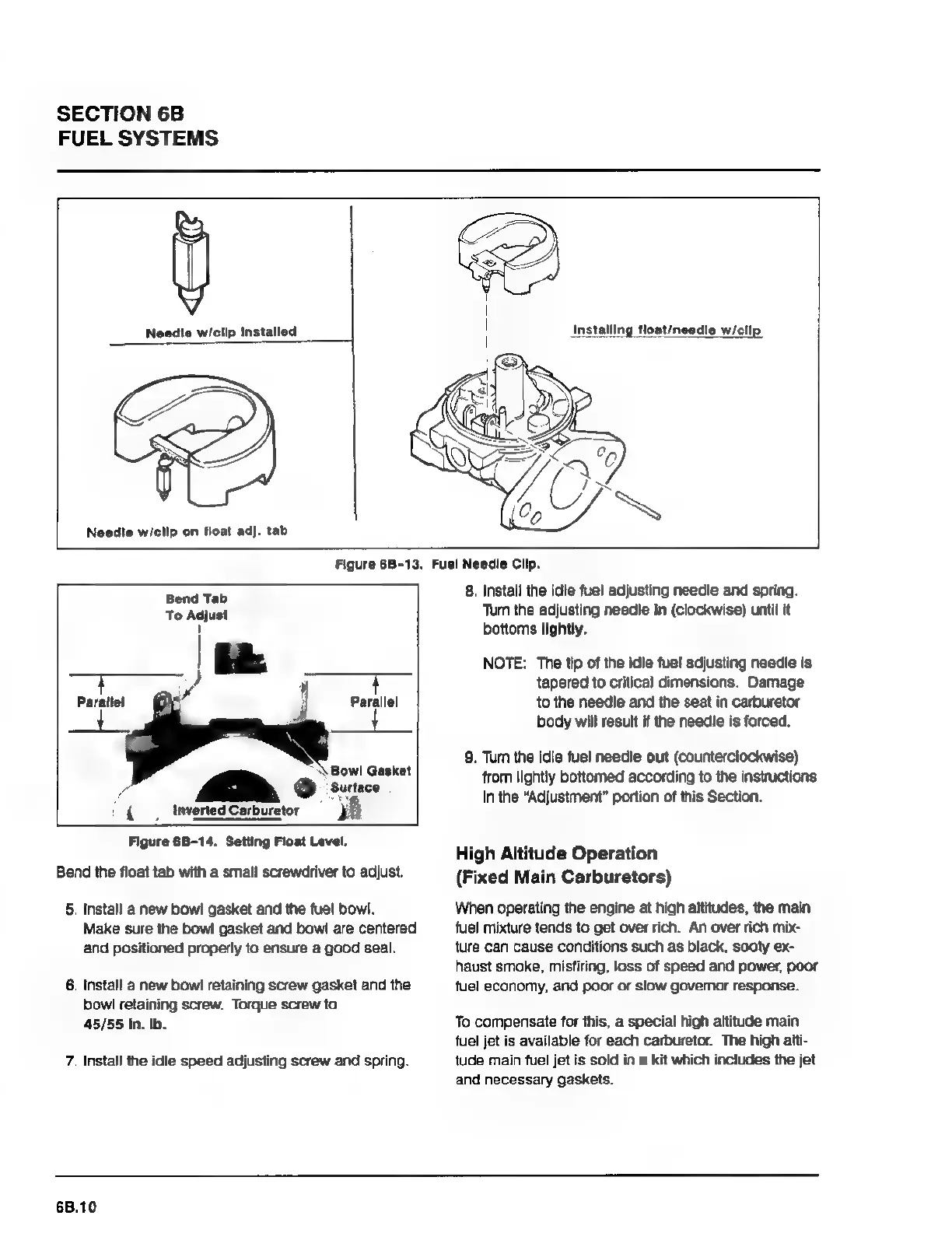

Figure &B-14. Setting Fiost Level.
Bend the float tab with a small screwdriver to adjust.
5. Install a new bowl gasket and the fuel bowl.
Make sure the bowl gasket and bowl are centered
and positioned properly to ensure a good seal.
6. Install a new bow! retaining screw gasket and the
bowl retaining screw. Torque screw ta
45/55 In. Ib.
7. Install the idle speed adjusting screw and spring.
Figure 6B-13. Fuel Needle Clip.
8. Install the idle fuel adjusting needle and spring.
Turn the adjusting needle In (clockwise) until it
bottoms lightly.
NOTE: The tip of the idle fuel adjusting needle is
tapered to critical dimensions. Damage
to the needle and the seat in carburetor
body will result if the needle is forced,
9. Tum the idle fuel needle out (counterclockwise)
from lightly bottomed according to the instructions
in the “Adjustment” portion of this Section.
High Altitude Operation
(Fixed Main Carburetors)
When operating the engine at high altitudes, the main
fuel mixture tends to get over rich. An over rich mix-
ture can cause conditions such as black, sooty ex-
haust smoke, misfiring, loss of speed and power, poor
fuel economy, and poor or slow доуетог response.
To compensate for this, a special high altitude main
fuel jet is available for each carburetor. The high alti-
tude main fuel jet is sold in a kit which includes the jet
and necessary gaskets.
