Kohler MAGNUM M18

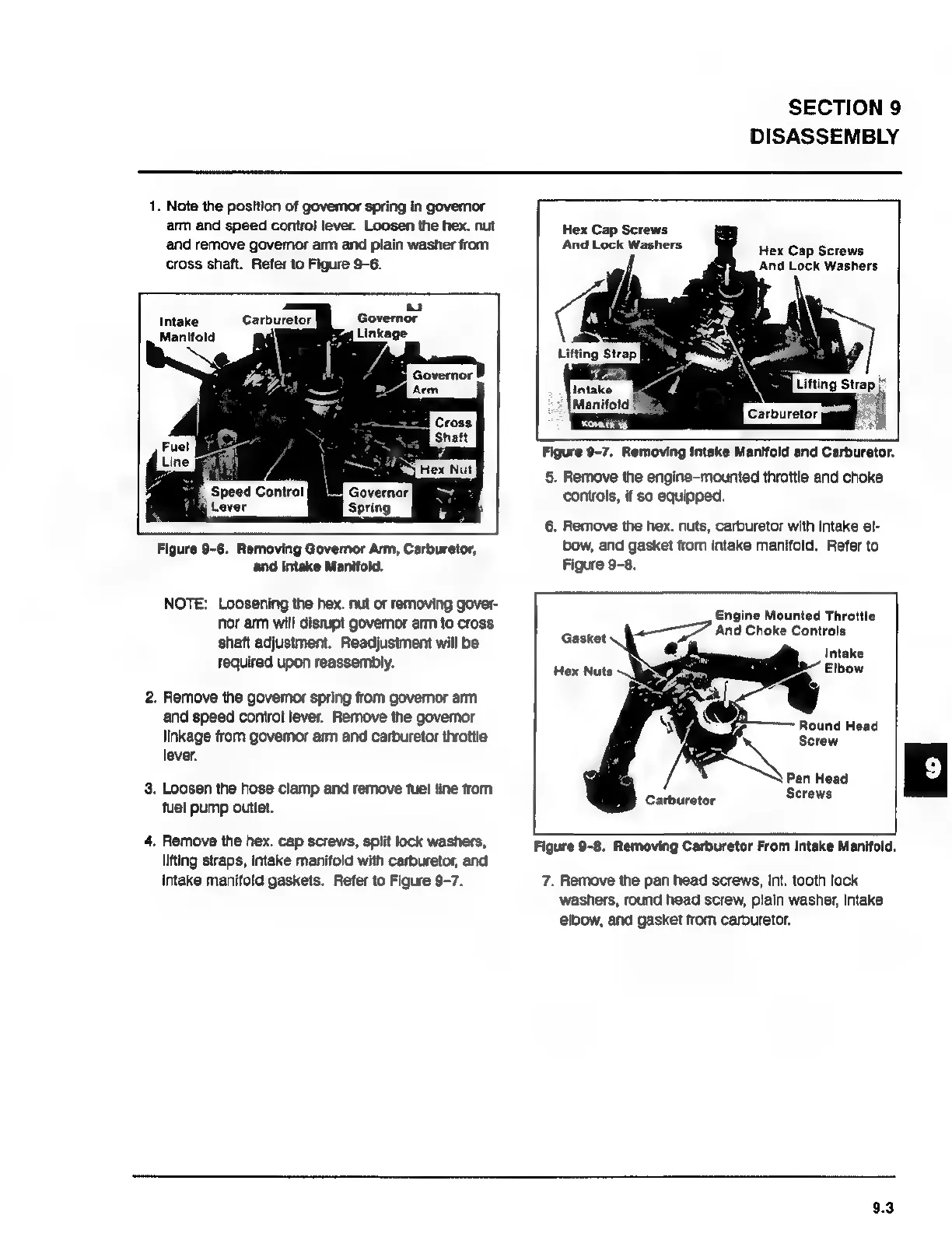

SECTION 9
DISASSEMBLY
1. Note the position of govemor spring in govemor
arm and speed control lever. Loosen the hex. nut
and remove govemor arm and plain washer from
cross shaft. Refer to Figure 9-6.
ы
Governor
Intake
Prag Linkage
Carburetor
Manifold р
7 YN
1-1 / v У
x i y pee: wy
ME. Speed Control Governor at MET
Lever Spring q
О
Figure 9-6. Removing Governor Arm, Carburetor,
and Intake Manifold.
NOTE: Loosening the hex. nut or removing gover-
nor arm will disrupt govemor arm to cross
shaft adjustment. Readjustment will be
Tequired upon reassembly.
2. Remove the governor spring from govemor arm
and speed control lever. Remove the governor
linkage from govemor arm and carburetor throttle
lever.
3. Loosen the hose clamp and remove fuel line from
fuel pump outlet.
4. Remove the hex. cap screws, split lock washers,
lifting straps, intake manifold with carburetor, and
intake manifold gaskets. Refer to Figure 9-7.
Hex Cap Screws
And Lock Washers
Hex Cap Screws
And Lock Washers
BW Lifting Strap ;
Carburetor |
Figure 9-7. Removing Intake Manifold and Carburetor.
5. Remove the engine-mounted throttle and choke
controls, if so equipped.
6. Remove the hex. nuts, carburetor with intake el-
bow, and gasket from intake manifold. Refer to
Figure 9-8.
Engine Mounted Throttle
And Choke Controls
Intake
Elbow
Gasket
Hex Nuts
Round Head
Screw
Pan Head
Screws
Carburetor
Figure 9-8. Removing Carburetor From Intake Manifold.
7. Remove the pan head screws, int. tooth lock
washers, round head screw, plain washer, intake
elbow, and gasket from carburetor.
9.3
