TT-1618 6/14 11
14. Test the connection (Windowsr PC).
for Mac computer, go to step 15.
14.1 Click on the Windows Start icon in the lower left
corner of the screen. See Figure 21.
14.2 Type “network connections” in the Search
programs and files window.
14.3 Press Enter or click on View network
connections.

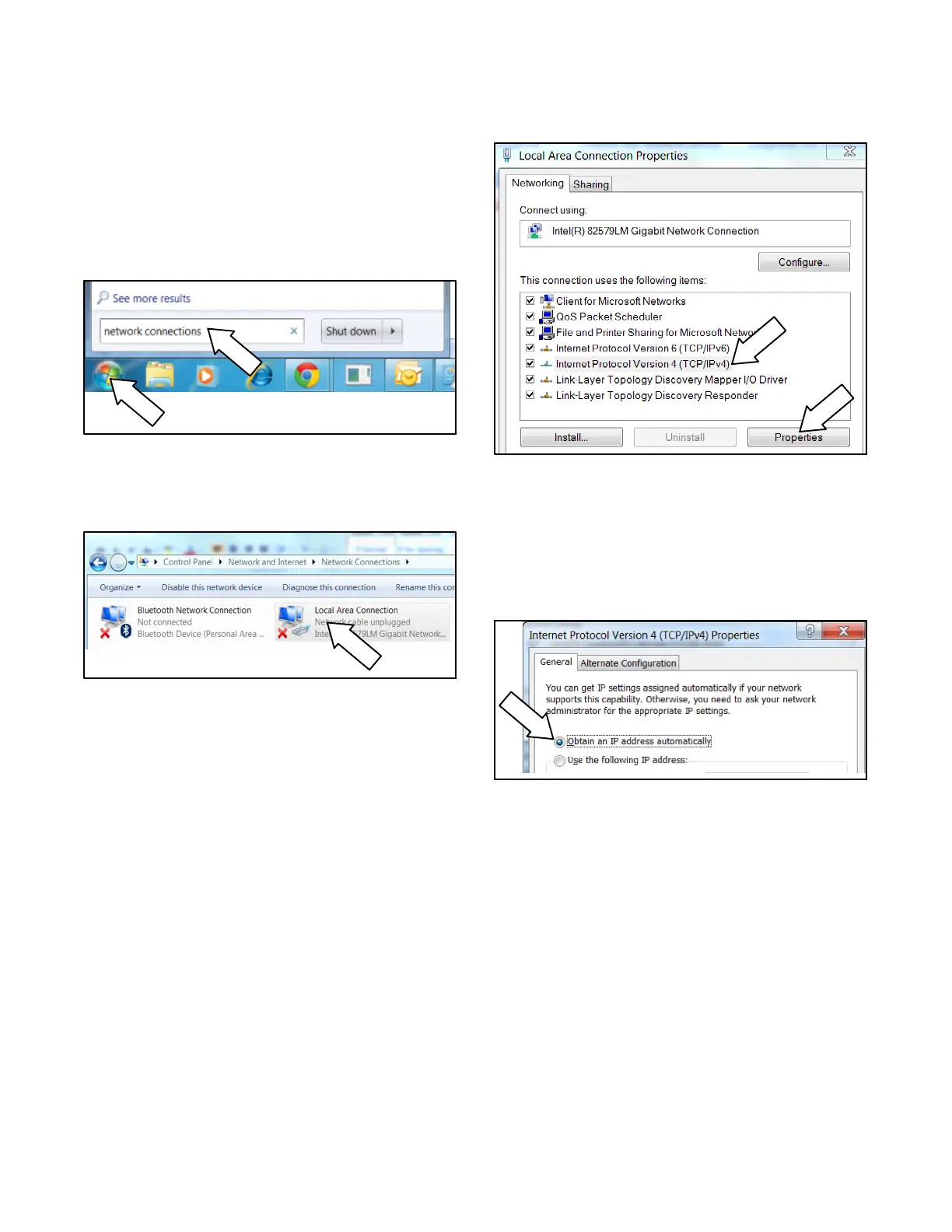

Figure 21 Search for Network Connections
14.4 Click on the Local Area Connection. See
Figure 22.
Figure 22 Select Local Area Connection
14.5 Select Internet Protocol Version 4. See
Figure 23.
14.6 Click on Properties.
Figure 23 Select Internet Protocol Version 4
14.7 Select Obtain an IP address automatically. See
Figure 24.
14.8 Click OK.
14.9 Go to step 16.
Figure 24 Obtain an IP Address Automatically
