Kohler PRO9.0E User Manual

Electrical System
10
TP-7088 6/17KohlerPower.com

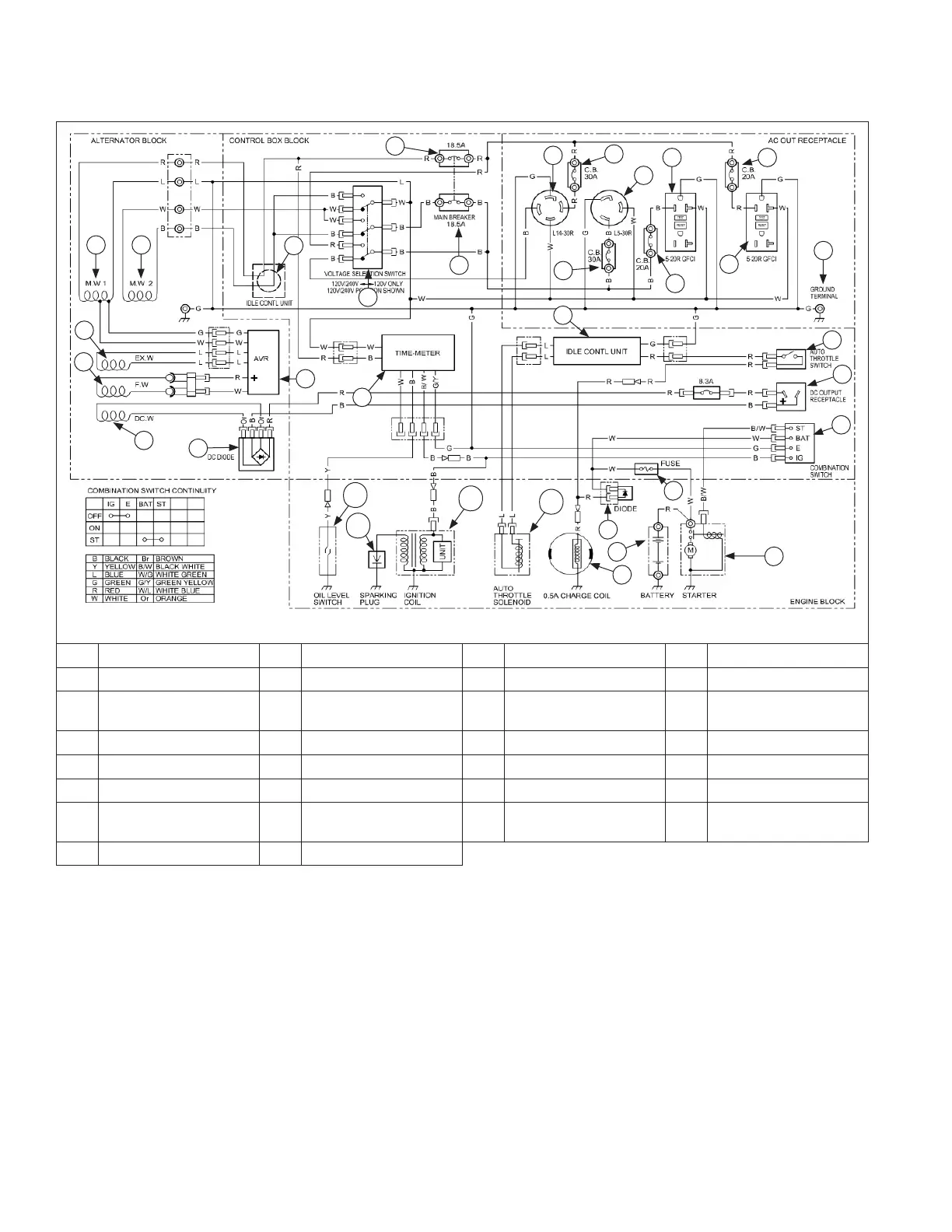

PRO6.4E Wiring Diagram
S
O
M
C
I
H
K
M
J
N
BA
H
T
E
A Main Winding 1 B Main Winding 2 C Exciter Field Coil D Sub Coil
E DC Winding F Auto Idle Coil G Voltage Selector H Circuit Breaker
I
240/120V/30A
Electrical Socket
J
120V/30A
Electrical Socket
K GFCI Receptacle L Circuit Protector 20A
M Circuit Protector 30A N Ground Terminal O Auto Throttle Switch P 12V DC Receptacle
Q On/Off/Start Switch R Auto Idle Module S Maintenance Minder T AVR
U Rectifi er V Diode W Battery Fuse X Starter Motor
Y 12 Volt Battery Z Stator AA
Electronic Throttle
Control
AB Ignition Coil
AC Spark Plug AD Oil Sentry™
L
L
K
U
X
D
F
G
P
Q
R
W
V
Z
AA
Y
AB
AD
AC
