Kohler PRO9.0E User Manual

Electrical System
12
TP-7088 6/17KohlerPower.com

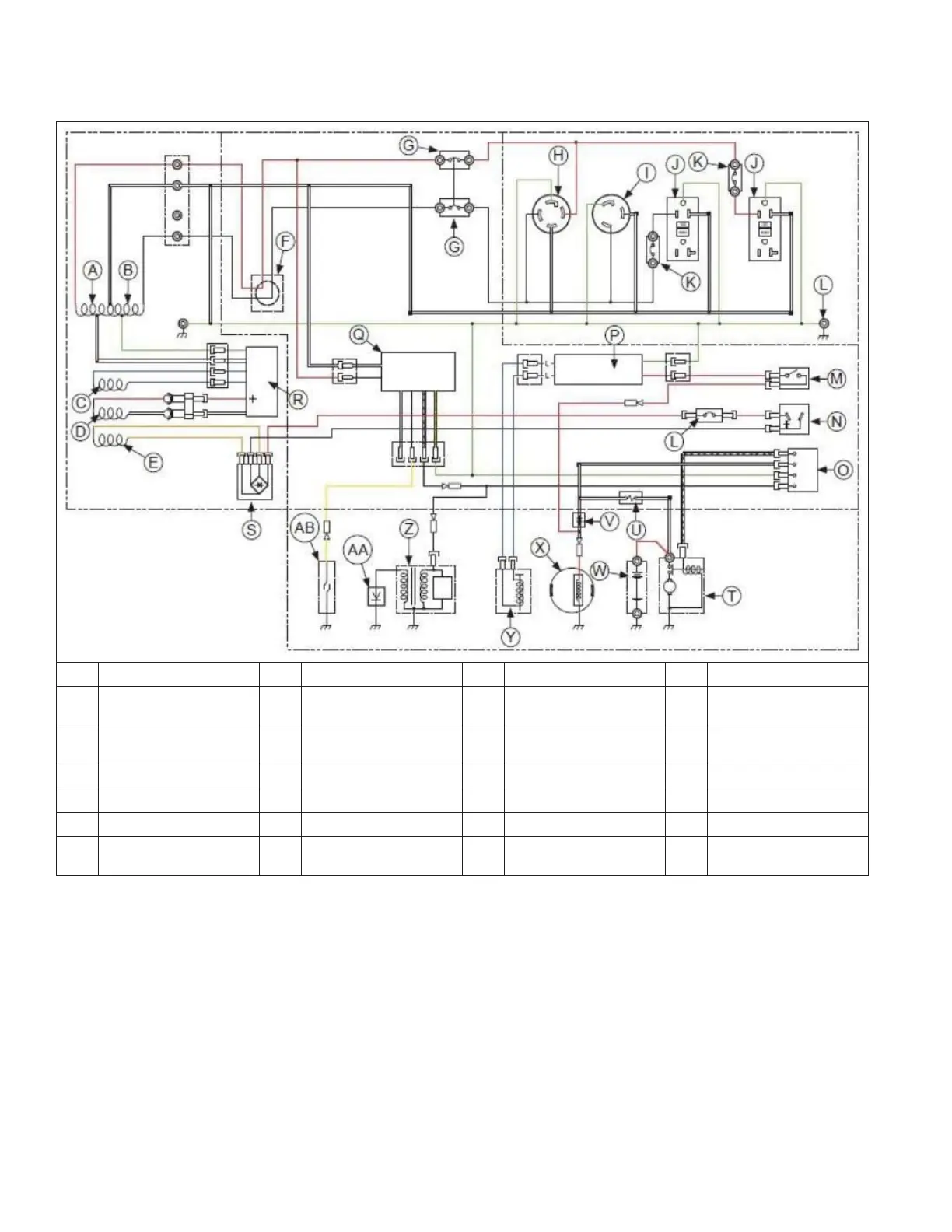

PRO9.0E Wiring Diagram
A Main Winding 1 B Main Winding 2 C Exciter Field Coil D Sub Coil
E DC Winding F Auto Idle Coil G Circuit Breaker H
240/120V/30A
Electrical Socket
I
120V/30A Electrical
Socket
J GFCI Receptacle K Circuit Protector 20A L Ground Terminal
M Auto Throttle Switch N 12V DC Receptacle O On/Off/Start Switch P Auto Idle Module
Q Maintenance Minder R AVR S Rectifi er T Starter Motor
U Battery Fuse V Diode W 12 Volt Battery X Stator
Y
Electronic Throttle
Control
Z Ignition Coil AA Spark Plug AB Oil SentryTM
