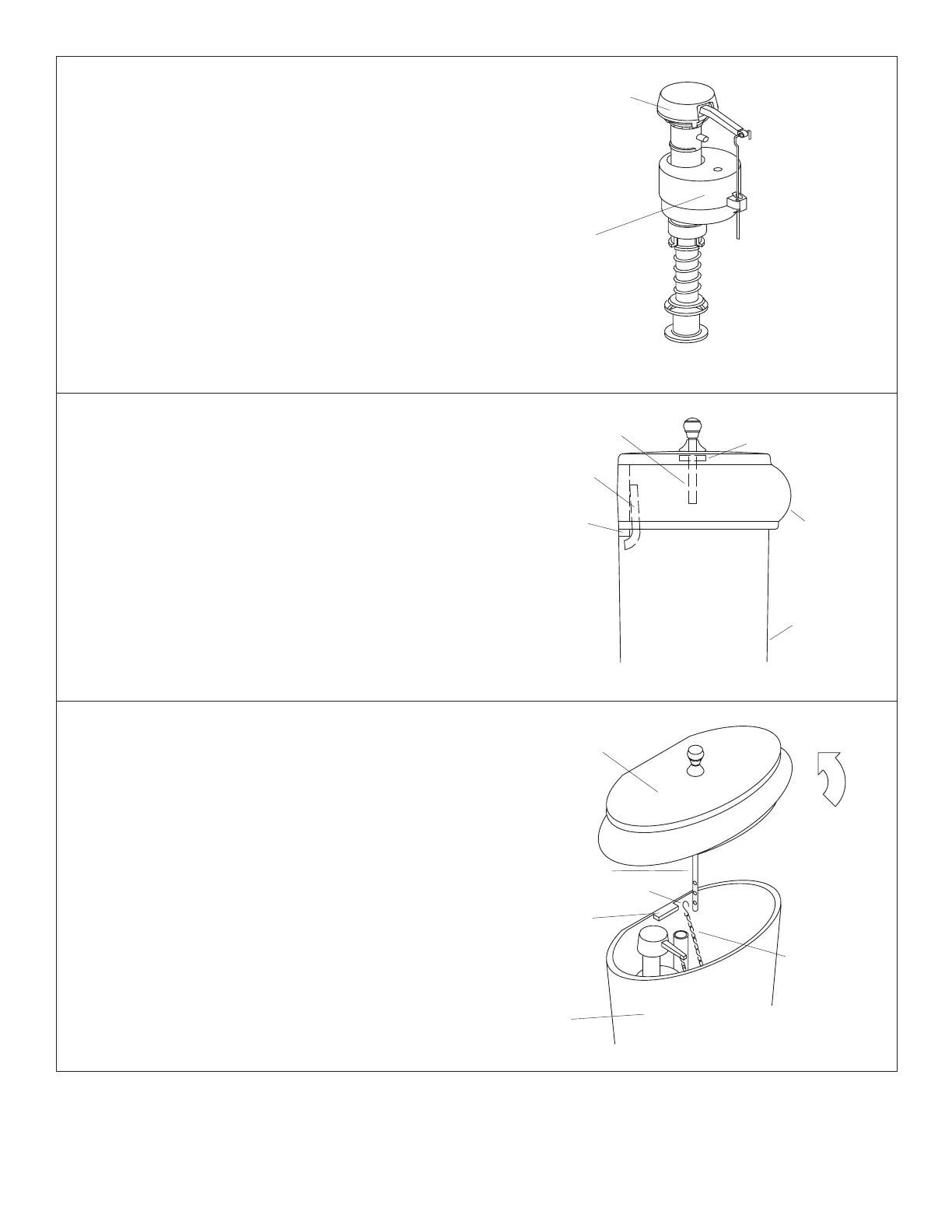

TO FILL FLOAT VALVE WITH BALLAST
Hold the float underwater for a few seconds to fill it with
water ballast.
Test flush the toilet by lifting the flapper chain.
Check all connections for leakage for several days.
Float
Fig. #9
Float Valve Cap
TO INSTALL LIFT ROD AND TANK COVER
Check the trip lever flange nut for tightness. If the nut is
loose, first hand tighten it. Then tighten it an additional
1/4 turn.
Insert the lift rod into the flange in the center of the tank
cover. Set the tank cover on the tank so the cover
bracket fits under the vitreous china tab located on the
back of the tank wall.
Fig. #10
Trip Lever
Flange Nut
Lift Rod
Tank Cover
Tank
Vitreous
China Tab
Cover Bracket
Carefully lift the front of the tank cover just enough to
gain access to the flapper chain and lift rod. Insert the
flapper chain S-hook into the middle hole in the lift rod.
Set the tank cover onto the tank. Be sure the cover
bracket and vitreous china tab are engaged.
Test flush the toilet several times to ensure proper
operation. If the flapper ball does not seat properly
when the lift rod is raised, provide more flapper chain
by:
 relocating the flapper chain S-hook to the bottom
hole in the lift rod, or by;
 repositioning the flapper chain S-hook on the
flapper chain.
If the toilet does not flush when the lift rod is raised,
remove some of the slack in the flapper chain by
relocating the flapper chain S-hook to the top hole in
the lift rod.
Fig. #11
Tank Cover
Tank
Lift Rod
Flapper Chain
Flapper Chain S-Hook
Cover tilts on tab –
cover shown
removed for clarity.
Tab
