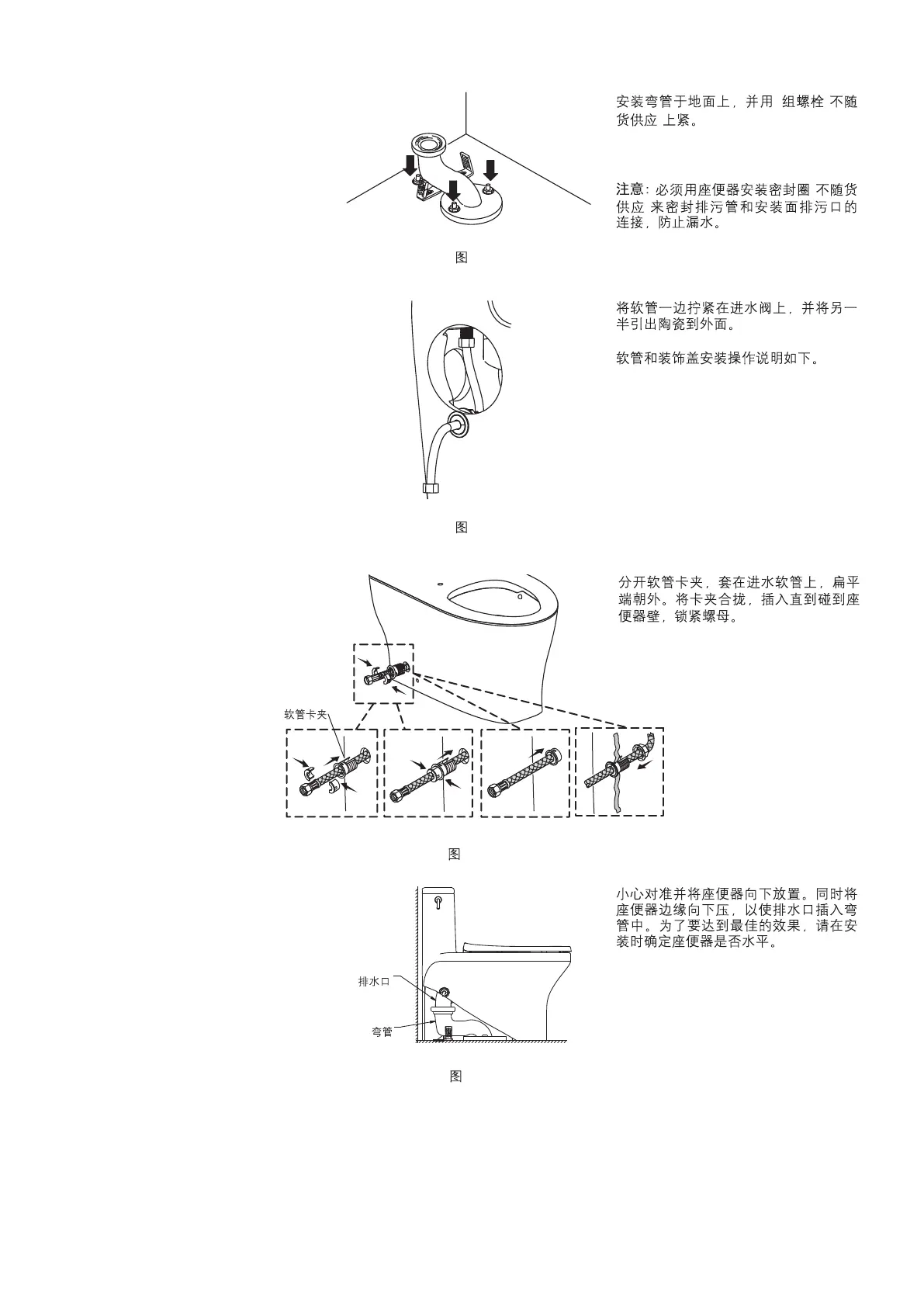

Fig.#8
8
Install plastic to ground and mounted
with 3 set of bolts firmly.(not supplied)
3(
)
NOTE: Must use the toilet installation
gasket ring (not supplied) to seal the
area where the waste pipe contacts
the construction section to avoid
leakage.
(
)
Fig.#9
9
One side of the hose is screwed on the
inlet valve, and pull the other side out
of the ceramic.
Hose and inlet cover fixing show as
below.
Take hose guide apart and slide onto
the supply hose, with the flared end
last. Slide the two inserts into the
flared end of the hose guide. Insert
into toilet wall and tighten nut.
Fig.#10
10
Hose Guide
Fig.#11
11
Carefully align and lower the bowl.
Apply weight to the bowl rim to let the
outlet insert into plastic trap.
Outlet
Plastic Trap
1535881-T2-A
