1266554-A02-A 2

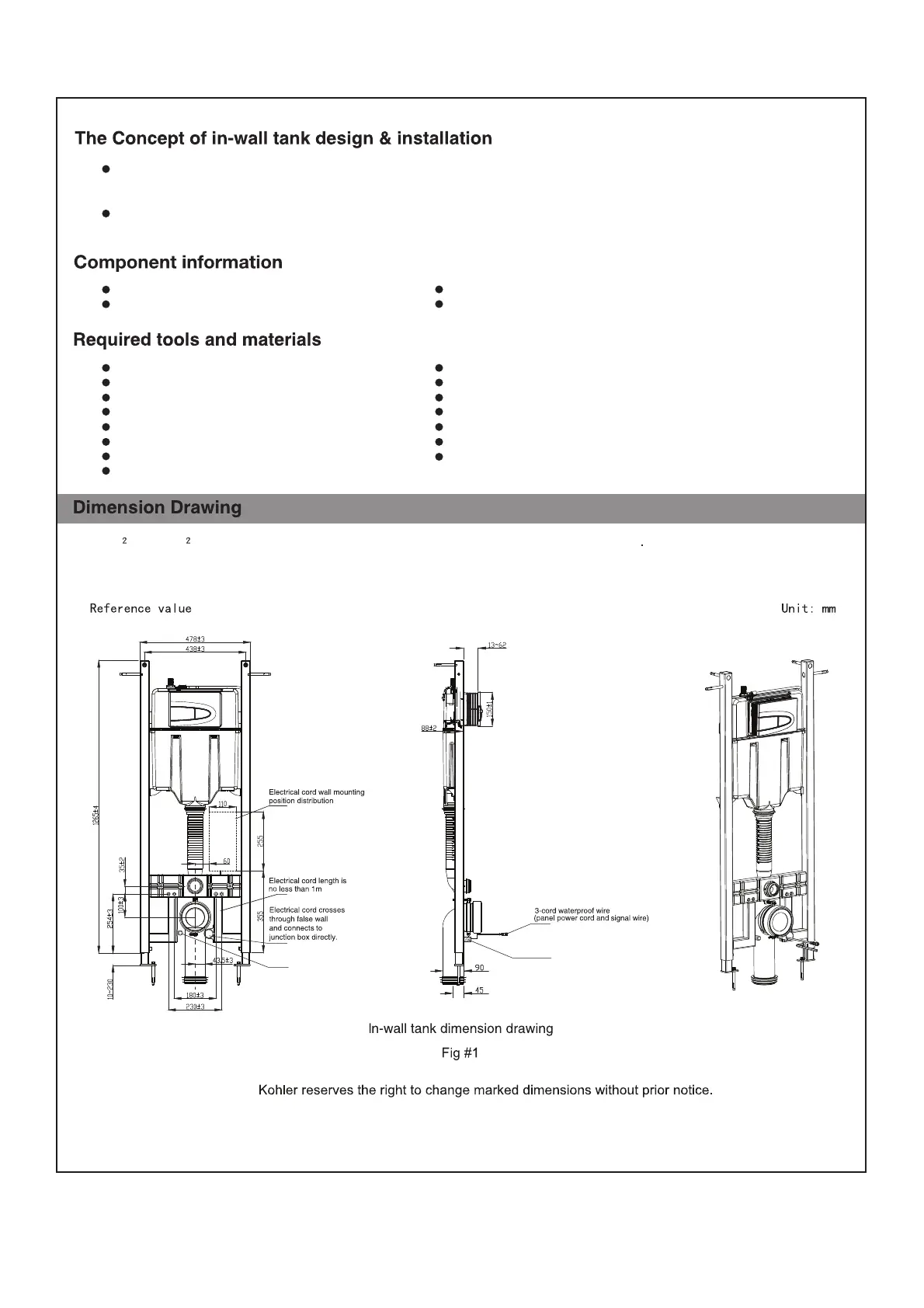

Compared to traditional setups, the in-wall tank provides an easier and faster installation method, which
gives a more artistic and complete finish.
The greatest advantage of the in-wall tank is that the toilet installation is not limited to certain locations. It
can be hung almost anywhere which affords a far greater use of bathroom space.
19mm spanner or adjustable wrench
Blade
File
Hacksaw
Hex key
Impact drill
Level
Screwdriver
Rulers/measuring tape
Electrical tape
Thread sealing tape
Electrical insulation conduits
Grease
Plug for bidet water supply
Screws to affix in-wall tank to wall bottom plate
1mm - 2.5mm hard cord should be reserved as power input during the wall construction. In the circuit, a 220V,
50Hz, 10A minimum Ground-Fault Circuit Interupter (GFCI) or Earth Leakage Circuit-Breaker (ELCB) is required. For
detailed positioning of the hard cord, see diagram below.
NOTE: S-trap installation shown as default. P-trap configuration is achievable by using a DN80 waste pipe connector.
Bidet water supply pipe
Bidet water supply connector
Pan with faceplate .......... 76395A-NA
Remote assembly ........... 1106433
Hydro-Tower 500 in-wall tank ..... 18647A-NA
Faceplate ..................................... 1229390
Kohler Co. March 2016
