1266554-A02-A7
A
B
Bottom plate
Gap for
discharge elbow
(S-trap install)
Stud
Stud
Nog
A
B
Socket
Wrench
Socket
Wrench

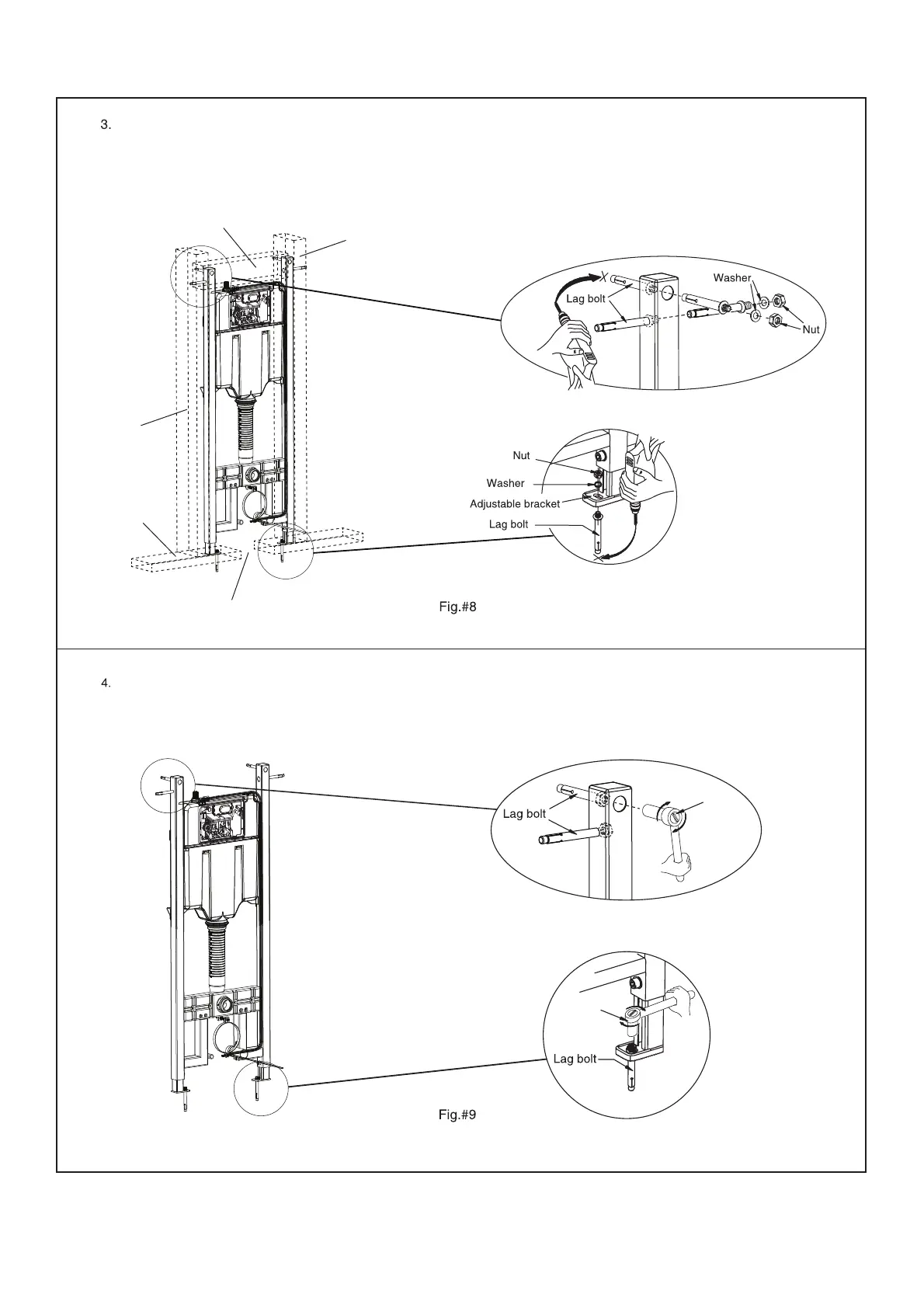

Construct a mounting frame to surround the in-wall tank. This should consist of vertical studs and a horizontal nog,
adjacent to the steel supports. If installation is an S-trap configuration, ensure the bottom plate has at least a 100mm
cut-out in the centre for the discharge elbow.
Drill Ø12mm x 60mm deep holes with a drill as shown in Fig A and B.
Insert lag bolt anchors into the installation hole in the framework, then add washer and tighten nut.
Repeat for all bolts.
Tighten nut by wrench as shown in Fig A.
Tighten nut by wrench as shown in Fig B.
Kohler Co. March 2016
