Koldware 6KK61BFA0 - Component Parts

5
Owner’s Manual
6KK61BFA0 / 6KK71BCA0 / 6KK92BCA3AA00

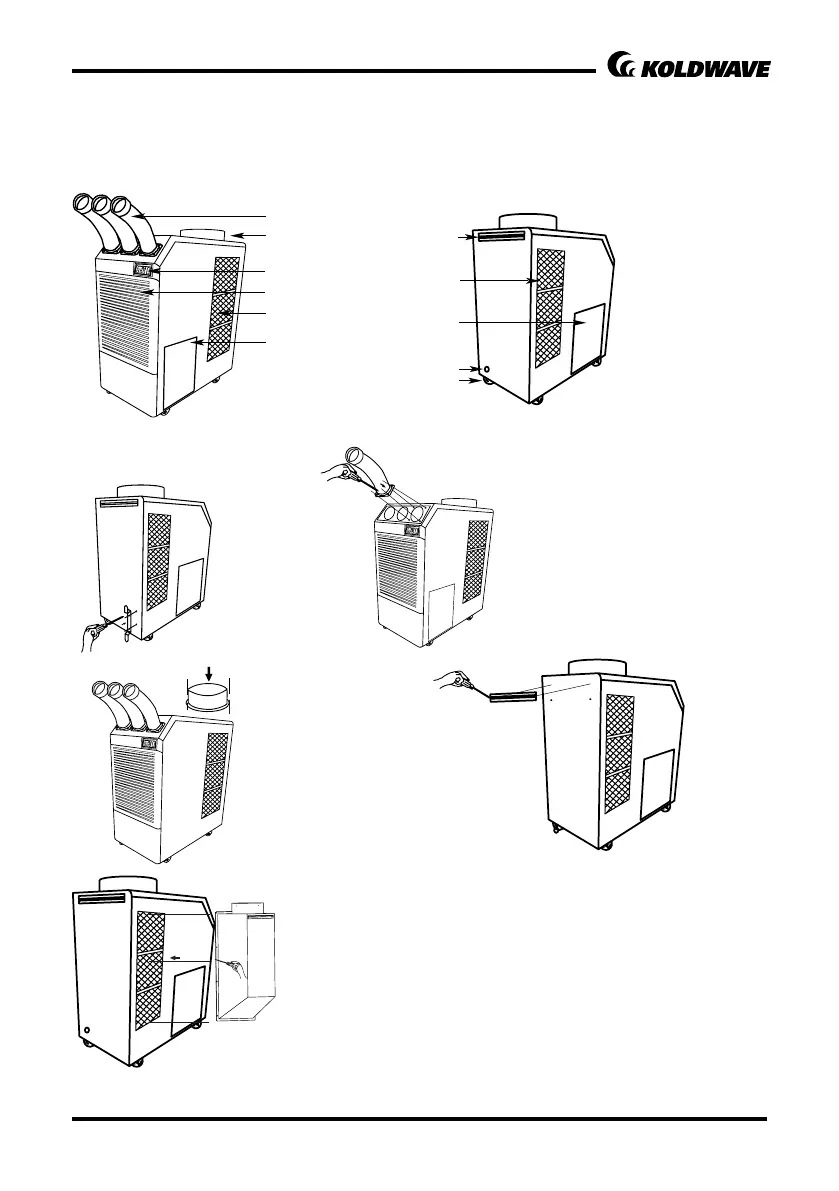

Front and Right Side View
Condenser / filter
Figure 3
Figure 2
Back and Le Side View
Caster
Electrical access panel
Drain pump hose connector
Handle
Cool air outlet
Display / Control board
Top fan exhaust flange
Evaporator / filter
Condenser / filter
Drain pump included
Figure 8
Figure 7
Figure 4
Figure 5
Figure 6
1. Remove cool air outlet hose(s) from
carton.
2. Place the cool air outlet hose(s) on
the front top of air condioner.
3. Use screws (enclosed inside of box
with cool air outlet hose(s) to install
the cool air outlet hose(s)
on the air condioner as shown in
Figure 5.
1. Take out the cord holder
from the accessory box.
2. Place the cord holder on
the back side of air condioner.
3. Use screws (enclosed inside of
accessory box ith cord
holder)to install the cord
holder on the air condioner
as shown in Figure 4.
TOP FAN EXHAUST FLANGE
1. Remove the top fan exhaust flange from carton.
2. Place the top fan exhaust flange on the top of air
condioner.
3. Use screws (enclosed inside of box with the top fan
exhaust flange) to install the top fan exhaust flange on air
condioner as shown in Figure 6.
HANDLE
1. Remove a handle from carton.
2. Place the handle on upper side of rear panel.
3. Use screws (enclosed inside of box with a handle)
to install the handle as shown in Figure 7.
POWER CORD HOLDER
DISCHARGE DUCTS
/SUPPLY AIR DUCT
A condenser plenum can be purchased separately. condenser plenum
fits over the condenser to duct condenser air to the unit to improve
cooling efficiency.
1. Remove the Filter("A")
2. Check the Filter("C") is inserted properly in condenser plenum("B")
3. Install "B" which contains "C" by using driver with enclosed
bolts(6EA) as Figure 8.
CONDENSER PLENUM
(Oponal)
A
B
C
Assembly
COMPONENT PARTS
