KOLDWAVE 2AK (AIRMASTER)
STANDARD FEATURES/UNIT CONSTRUCTION
FEATURES
• Optional 10' flexible duct extends
up to 10 feet to vent condenser
air.
• Four way adjustable grilles
control air discharge for even,
comfortable cooling.

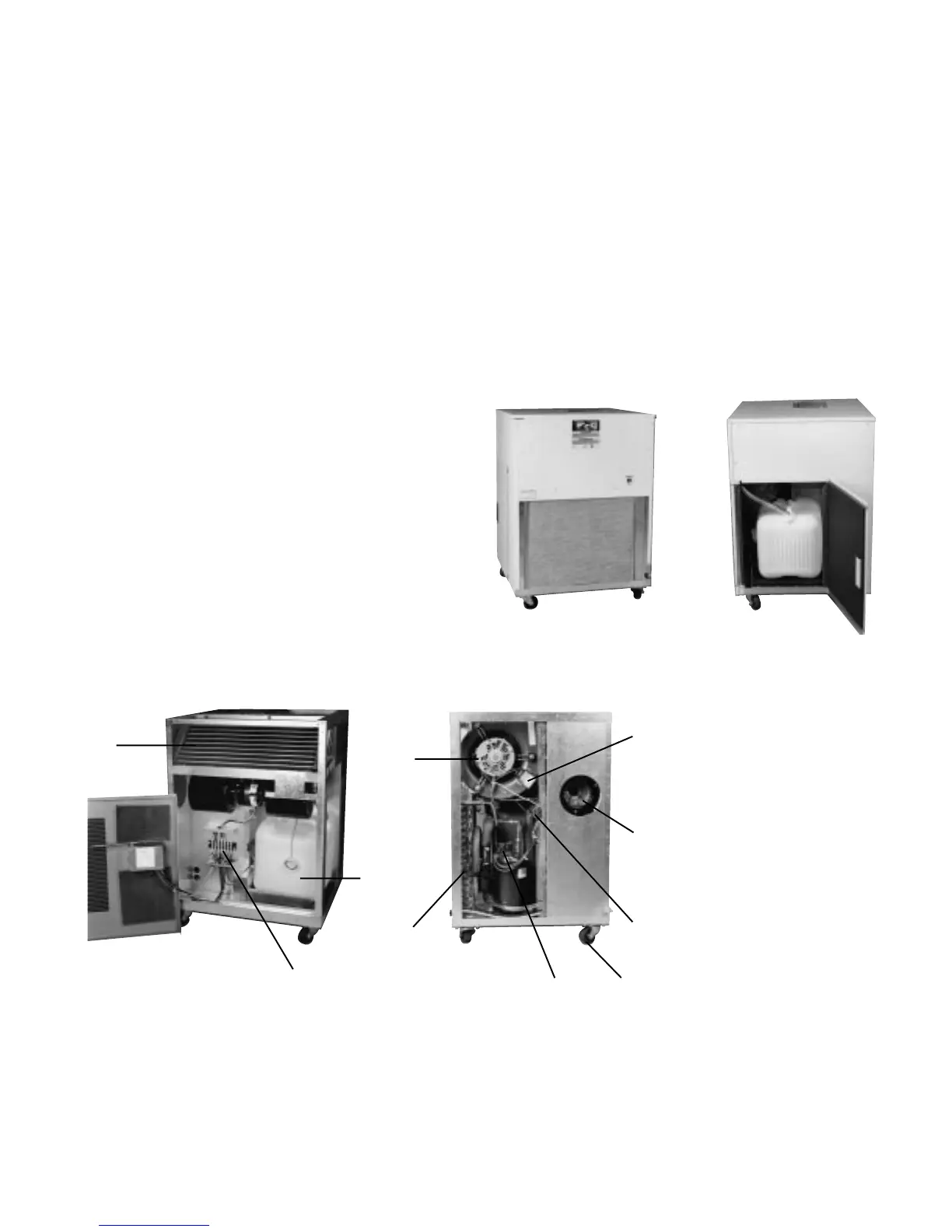

Back
Right
Side
1
2
3
4
Front Left
Side
5
6
7
8
9
10
SERVICEABILITY
The Koldwave Airmaster has removable panels to
provide full service accessibility. The interior is divided
into three sections. The upper front face encloses the
evaporator coil and blower assembly. The lower front
section contains the electrical controls, which are
secured to the removable front panel, and the
condensate holding tank an its level detection system.
The rear section encases the compressor, condenser
coil and blower assembly.
1. Evaporator Coil
2. Terminal Block Enclosure
3. Condensate
Holding Tank
4. Condenser Fan Motor
5. Fan Motor Capacitor
6. Condenser Coil
7. Compressor (Rotary)
8. Compressor Capacitor
9. Evaporator Blower
10. Casters
• Convenient control panel houses
on-off switch, thermostat and
indicator lights.
• Hinged panel allows easy access
to 5-gallon condensate holding
tank.
• Large, heavy-duty casters allow
you to move the Koldwave
®
Airmaster to virtually any location.
