KOLDWAVE 2AK (AIRMASTER)
CEILING PANEL/DUCT KIT ASSEMBLY
(OPTIONAL)

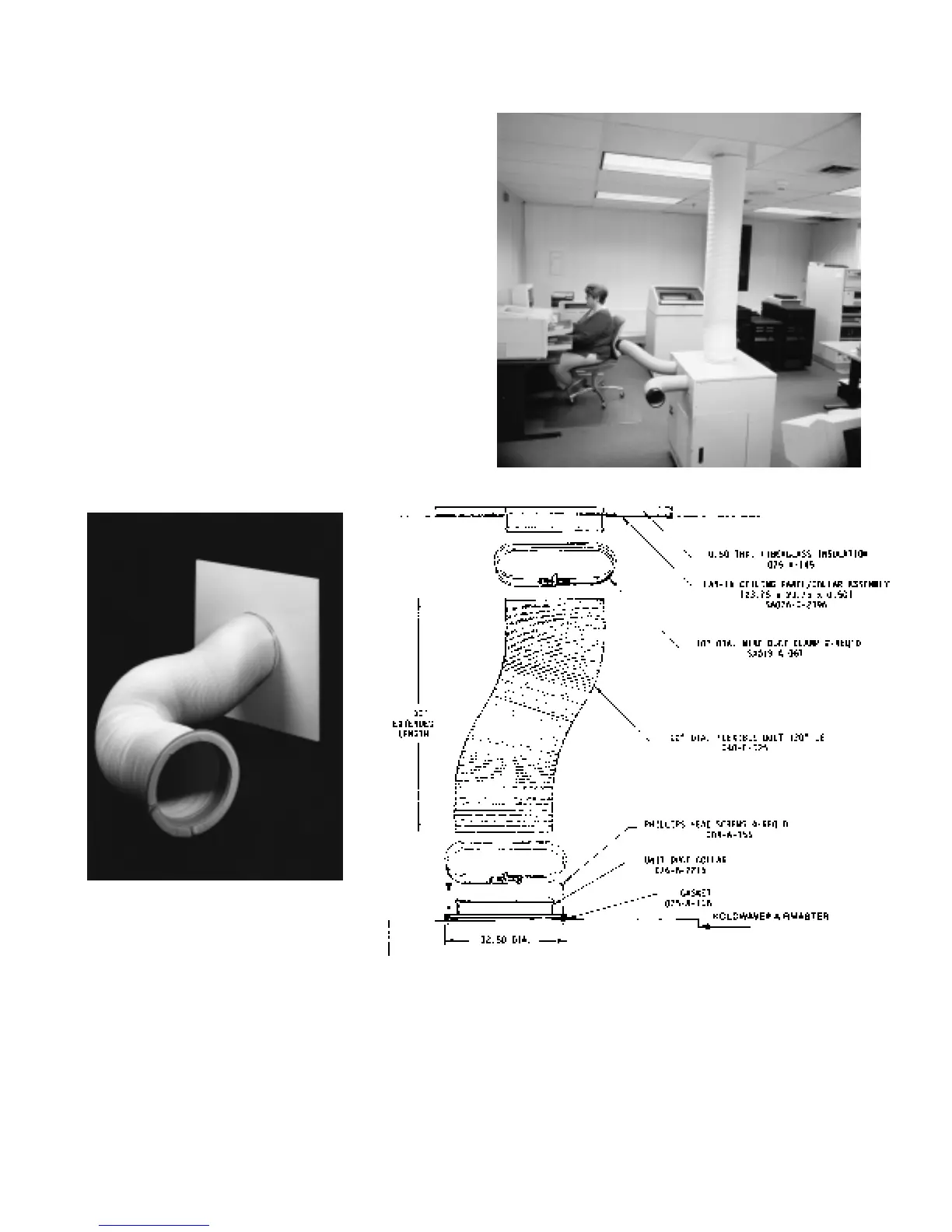

A 10" diameter, flexible duct kit assembly extends up
to 10 feet, to vent condenser air or to draw condenser
return air from the ceiling when condenser return air
plenum is used. It comes with 2' x 2' lay-in ceiling
panel/collar assembly, for venting into the plenum area
above the false ceiling, plus a duct collar to attach duct
to unit. Installation of the flexible duct can be achieved
in the following manner:
1. Slip one end of the duct over the lay-in ceiling
panel/collar assembly and other end over the unit
duct collar.
2. Clamp duct to lay-in ceiling panel/collar assembly
and unit duct collar (see “Duct Design” for details.
3. Place the 2' x 2' lay-in ceiling panel in the false
ceiling directly above the unit.
4. Screw duct collar to unit with four screws provided.
