KOLDWAVE 3AK (AIRMASTER)
AREA COOLER

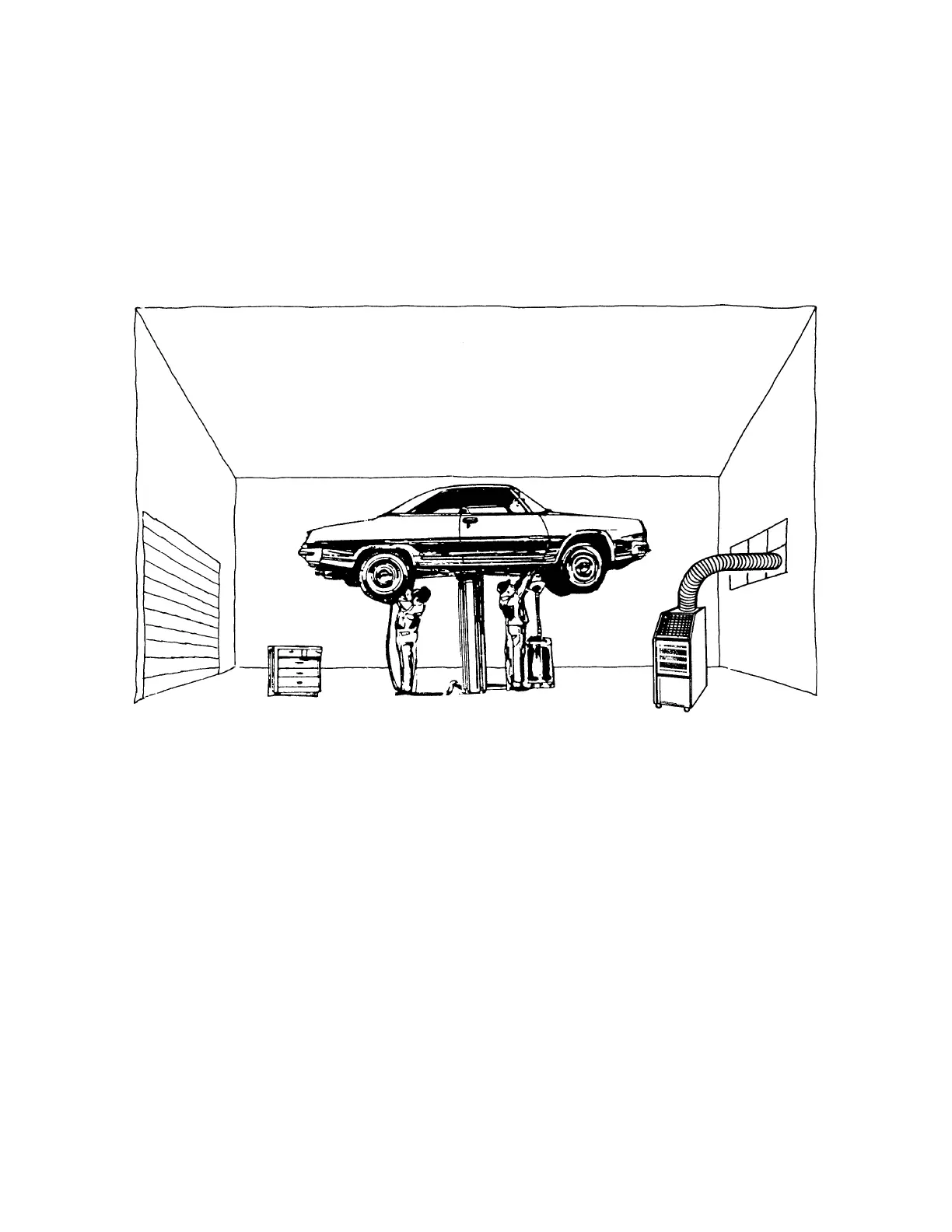

In a similar application where a specific area needs to
be cooled, a condenser hot air exhaust duct may be
employed as shown in the figure below. Refer to
(optional) “Ceiling Panel/Duct Kit Assembly” on page
10 for more details. Evaporator discharge grille or
optional snozzles
®
may be used.
While evaporator discharge air cools the air directly in
front of the unit, warm room air will be drawn into
the side of the unit to cool the condenser and then
discharge into the false ceiling or out a window. The
net effect will be a cooler area all around the unit.
Cooling vehicle maintenance areas, temporary work
stations, loading docks, and packing areas are just a
few examples.
INSTALLATION INSTRUCTIONS
Before installing: Check the air conditioner/spot cooler
for any shipping damage. Air conditioners are
throughly inspected at the factory and carefully
packed. If any damage is evident, file a claim with the
delivering carrier immediately.
Electrical Requirements: Check the nameplate on the
back of the unit to make certain that the proper power
is available. Refer to the “Specifications” section for
voltage, fuse requirements and proper NEMA
receptacles. Check for proper wall outlets as described
in “Standard Features”. Operating the unit with
improper voltages will void the warranty.
CAUTION: An extension cord can be used provided
it is rated at least 10 amps @ 250 volts with
grounding-type attachment plug and grounding-type
connector (load fitting).
Koldwave Airmaster portable/spot cooler requires
minimal installation. It merly plugs into a NEMA 6-20R
receptacle and is immediately ready to operate. The
entire system is built into one compact unit that can be
moved and installed easily.
