KOLDWAVE 3AK (AIRMASTER)
3AK3012 AIRMASTER PRODUCT DATA AND SPECIFICATIONS
ELECTRICAL DATA***
Voltage/Phase/Hertz**** 208-230/1/60
Amperage 13.0
Fuse Size (Amps) 20.0
Watts 2603
Inrush Current (Amps) 89.26
COMPRESSOR
Horsepower 2.0
Watts 2090
RLA 9.6
LRA 62.5
RPM 3450
Refrigerant - 22 (oz.) 68
BLOWER (EVAPORATOR)
Speed High Medium Low
Amps 1.9 1.4 1.3
Watts 323 250 230
RPM 1135 960 840
CFM @ 0.0" H2O E.S.P.
835 695 605
with Grille
CFM @ 0.0" H2O E.S.P.
710 630 575
with Snozzles
CFM @ 0.5" H2O E.S.P.
465 395 360
with Snozzles
CFM @ 0.0" H2O E.S.P.
760 660 590
with 10" Diameter Duct
CFM @ 0.5" H2O E.S.P.
505 410 370
with 10" Diameter duct
COOLING CAPACITY (BTU/HR) & EER
Evaporator Fan Speed High Medium Low
Conditions Total Sensible EER* Total Sensible EER* Total Sensible EER*
67°F DB/57°F WB (54% RH) 21,450 15,400 10.25 20,800 14,400 10.25 20,300 13,600 10.10
72°F DB/60°F WB (50% RH) 22,450 16,550 10.30 21,750 15,450 10.35 21,150 14,500 10.20
75°F DB/62°F WB (48% RH) 23,000 17,150 10.35 22,200 15,750 10.35 21,500 14,750 10.20
80°F DB/67°F WB (52% RH) 24,300 15,800 10.50 23,550 15,050 10.55 22,600 14,100 10.25
95°F DB/71°F WB (30% RH) 25,950 21,000 10.00 25,100 20,000 10.00 24,250 18,750 9.75
95°F DB/75°F WB (40% RH) 26,550 17,950 10.20 25,800 17,000 10.25 25,050 16,250 10.05
95°F DB/83°F WB (61% RH) 27,150 11,250 10.40 26,500 11,000 10.45 25,750 10,650 10.20
104°F DB/80°F WB (36% RH) 26,900 17,650 9.50 26,100 16,900 9.50 25,400 16,100 9.35
115°F DB/96°F WB (50% RH)** 29,950 11,150 9.50 29,350 10,700 9.55 28,700 10,300 9.40
Time delay fuses and circuit breakers are recommended.
**** EER determined with condenser discharge air ducted into
another area on high fan speed.
**** Maximum operating condition.
**** Electrical ratings per U.L Standard 484 at 95°F DB/75° WB
on high speed.
**** 220/50/1 available - consult factory
BLOWER (CONDENSER)
Speed High Low
Amps 2.3 1.6
Watts 420 290
RPM 1070 740
CFM @ 0.0 E.S.P. 1110 753
CFM @ 0.25 E.S.P. 955 690
CONDENSATE PUMP (OPTIONAL)
Motor HP 0.013
Lift (Ft. of H
2
O) 11.0
Amps 0.26
Watts 50
EVAPORATOR
Number of Rows 3
Coil Face Area (Ft.
2
)2.36
CONDENSER
Number of Rows 3
Coil Face Area (Ft.
2
)5.25
EVAPORATOR AIR FILTER SIZE (INCHES)
Width 16.5
Height 17.25
Thickness 0.5
CONDENSER AIR FILTER SIZE (INCHES) 2/UNIT
Width 17.375
Height 20.0
Thickness 0.5

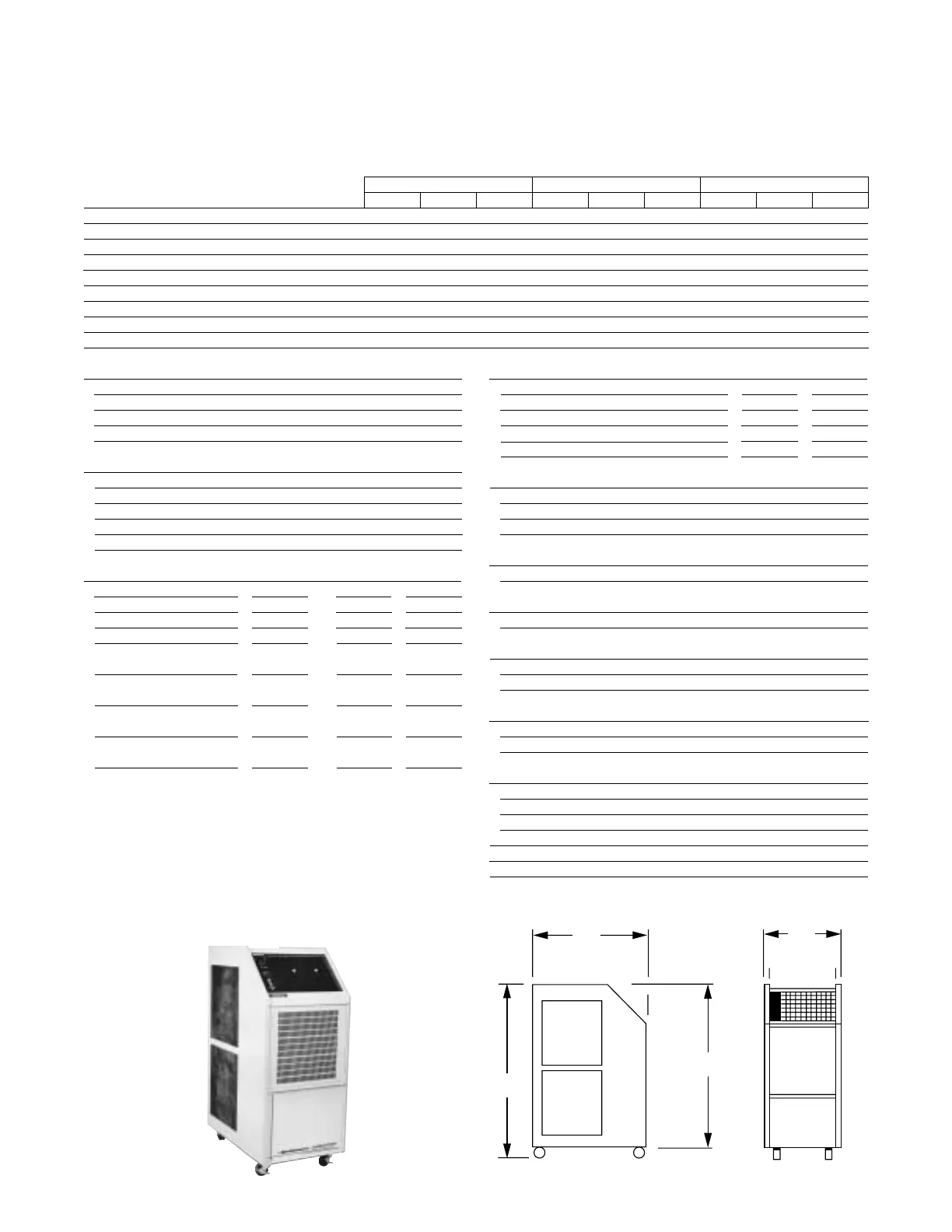

UNIT DIMENSIONS (INCHES)
(A) Height with Casters 52.25
(B) Height without Casters 48.5
(C) Width 22.25
(D) Depth 33.625
NET UNIT WEIGHT (LBS.) 303
SHIPPING WEIGHT (LBS.) 365
C
D
B
A
