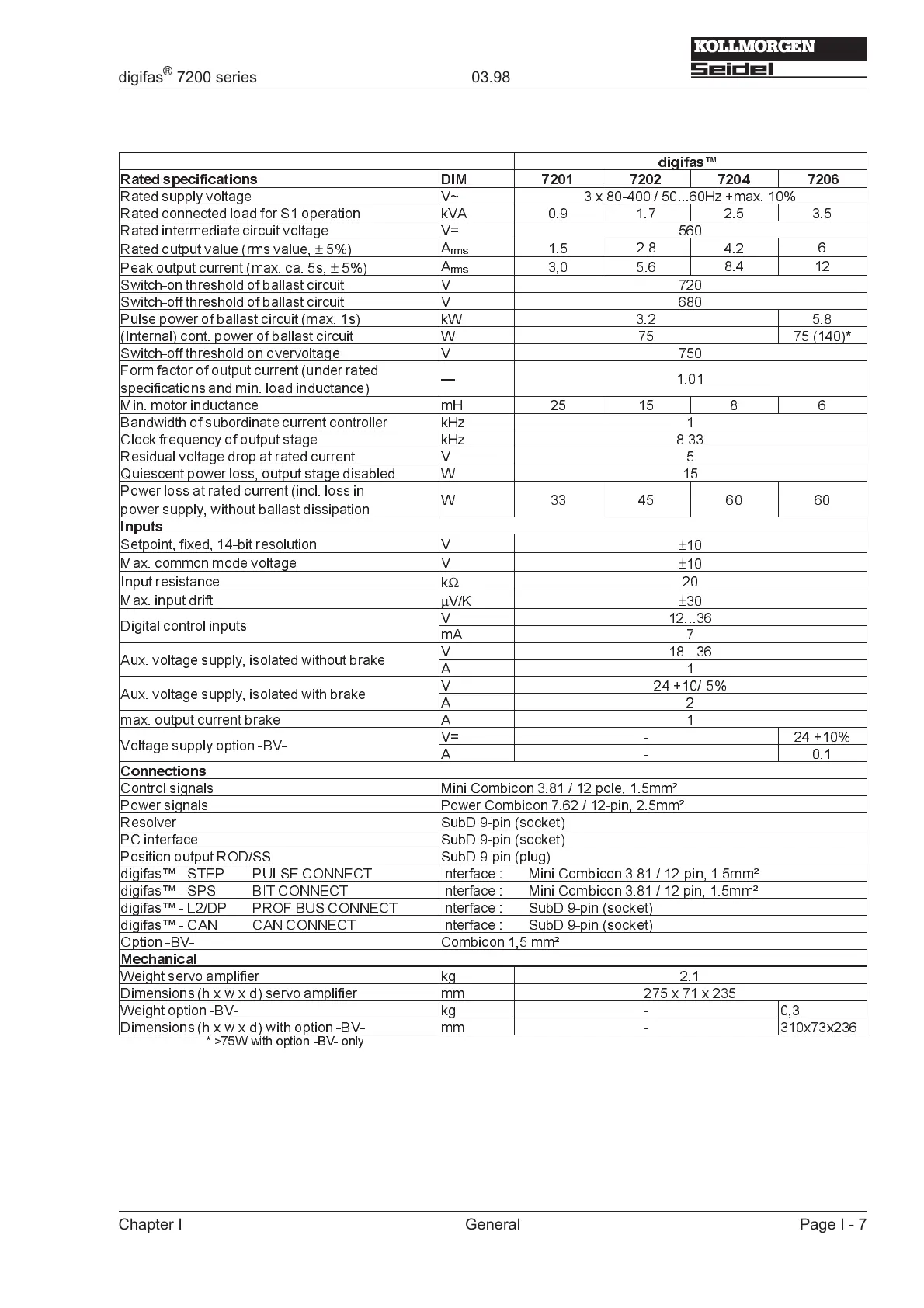

I.8 Technical data of the digifas™ 7200 series
digifas
Rated specifications DIM 7201 7202 7204 7206
Rated supply voltage V~ 3 x 80-400 / 50...60Hz +max. 10%
Rated connected load for S1 operation kVA 0.9 1.7 2.5 3.5
Rated intermediate circuit voltage V= 560
Rated output value (rms value,
± 5%)
A
rms
1.5
2.8
4.2
6
Peak output current (max. ca. 5s,
± 5%)
A
rms
3,0 5.6
8.4 12
Switch-on threshold of ballast circuit V 720
Switch-off threshold of ballast circuit V 680
Pulse power of ballast circuit (max. 1s) kW 3.2 5.8
(Internal) cont. power of ballast circuit W 75 75 (140)*
Switch-off threshold on overvoltage V 750
Form factor of output current (under rated
specifications and min. load inductance)
 1.01
Min. motor inductance mH 25 15 8 6
Bandwidth of subordinate current controller kHz 1
Clock frequency of output stage kHz 8.33
Residual voltage drop at rated current V 5
Quiescent power loss, output stage disabled W 15
Power loss at rated current (incl. loss in
power supply, without ballast dissipation
W 33456060
Inputs
Setpoint, fixed, 14-bit resolution V
± 10
Max. common mode voltage V
± 10
Input resistance
k
Ω
20
Max. input drift
µ V/K ± 30
Digital control inputs
V 12...36
mA 7
Aux. voltage supply, isolated without brake
V 18...36
A1
Aux. voltage supply, isolated with brake
V 24 +10/-5%
A2
max. output current brake A 1
Voltage supply option -BV-
V= - 24 +10%
A - 0.1
Connections
Control signals Mini Combicon 3.81 / 12 pole, 1.5mm²
Power signals Power Combicon 7.62 / 12-pin, 2.5mm²
Resolver SubD 9-pin (socket)
PC interface SubD 9-pin (socket)
Position output ROD/SSI SubD 9-pin (plug)
digifas - STEP PULSE CONNECT Interface : Mini Combicon 3.81 / 12-pin, 1.5mm²
digifas - SPS BIT CONNECT Interface : Mini Combicon 3.81 / 12 pin, 1.5mm²
digifas - L2/DP PROFIBUS CONNECT Interface : SubD 9-pin (socket)
digifas - CAN CAN CONNECT Interface : SubD 9-pin (socket)
Option -BV- Combicon 1,5 mm²
Mechanical
Weight servo amplifier kg 2.1
Dimensions (h x w x d) servo amplifier mm 275 x 71 x 235
Weight option -BV- kg - 0,3
Dimensions (h x w x d) with option -BV- mm - 310x73x236
* >75W with option -BV- only
Chapter I General Page I - 7
digifas
®
7200 series 03.98
