Komaes KC3 - Device Layout and Connections; Component Identification; Terminal Connections

KC3 PV Charge Controller Instruction Manual


2

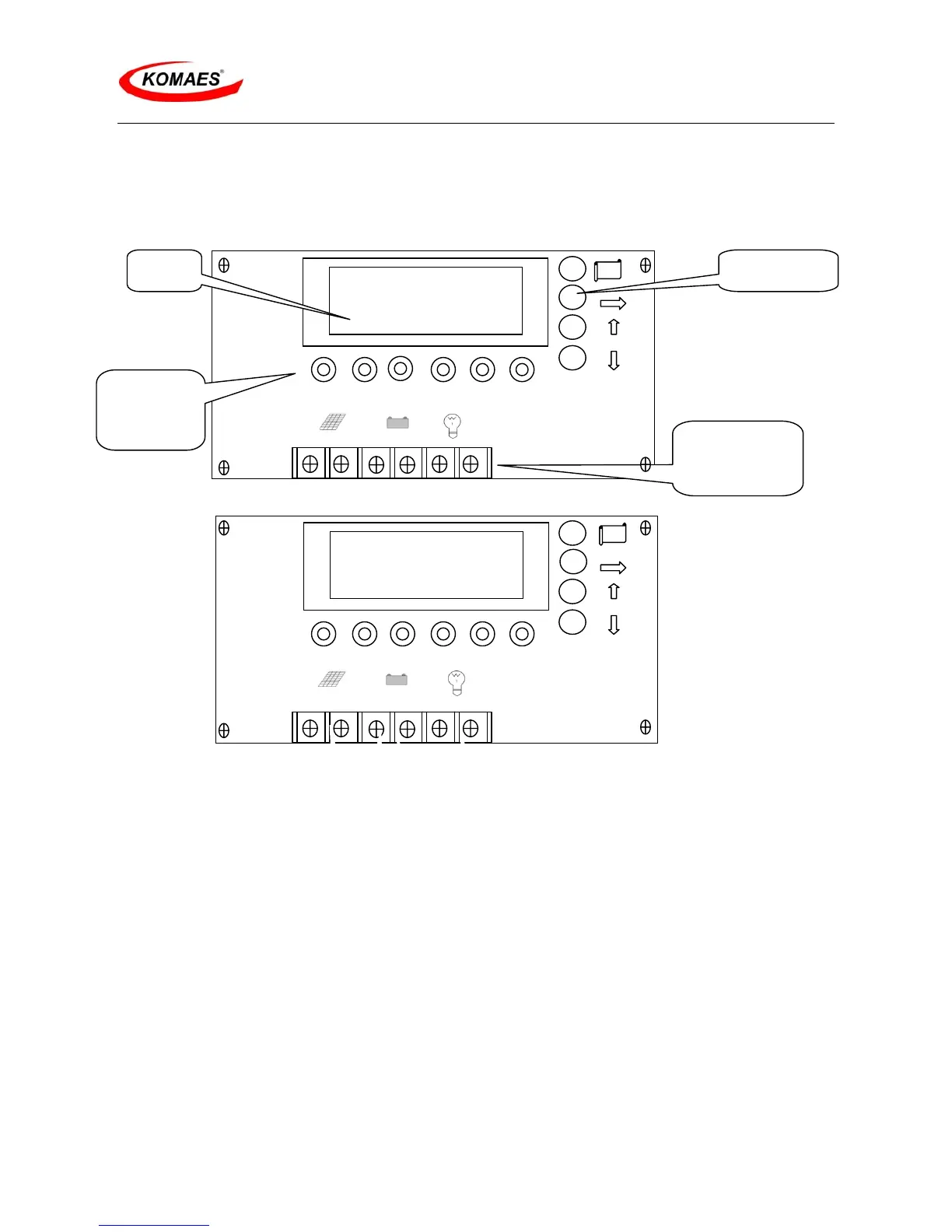

2．Layout
Diagram 1
Diagram 2
3．Installation
See Diagram 2
Terminals from left to right to connect: anode of modules; cathode of modules; anode of batteries;
cathode of batteries; anode of loads; cathode of loads.
Cables’ Selections according to Current of Loads;
Selected cables to connect batteries are better shorter& thicker to prevent power loss.
Note: KC3 is designed for lead-acid battery, it may affect if use other types.
Working
Charging
Full
Over
load
Over
volt
＋
－
＋
－
＋
－
LCD
4 Buttons
6 LEDs
6 Connections
Terminals
＋
－
＋
－
＋
－
Module”+”
Module”-”
Battery”+”
Batter
y
”-”
Loads“+”
Loads “-”
SET
SET
 
Low volt
