EXPLANATION OF COMPONENTS OPERATION
3-30
SWITCHES 3
LAMP SWITCH
This switch (1) lights up when the front and rear lamps, and the
panel lamp light up.
O (OFF) position: Lights out
l (ON) position: Lights on

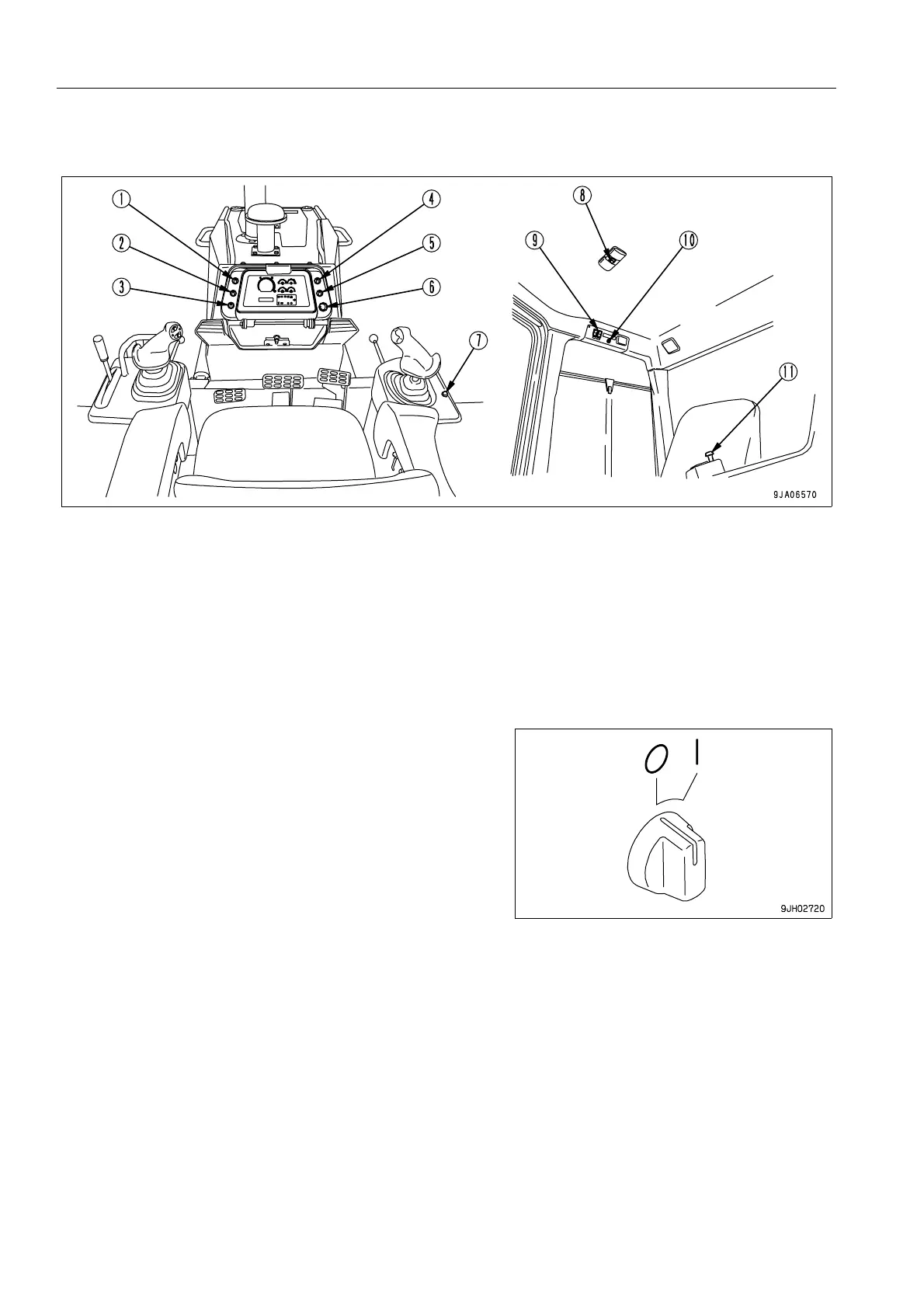

(1) Lamp switch (7) Horn switch
(2) Buzzer cancel switch (8) Room lamp switch (machine equipped with cab)
(3) Information switch (9) Wiper switch (machine equipped with cab)
(4) Reverse travel speed setting switch (10)
Wiper motor breaker reset button
(machine equipment with cab)
(5) Shift mode switch
(6) Starting switch (11) Cigarette lighter (machine equipped with cab)
