25. SPECIFICATIONS

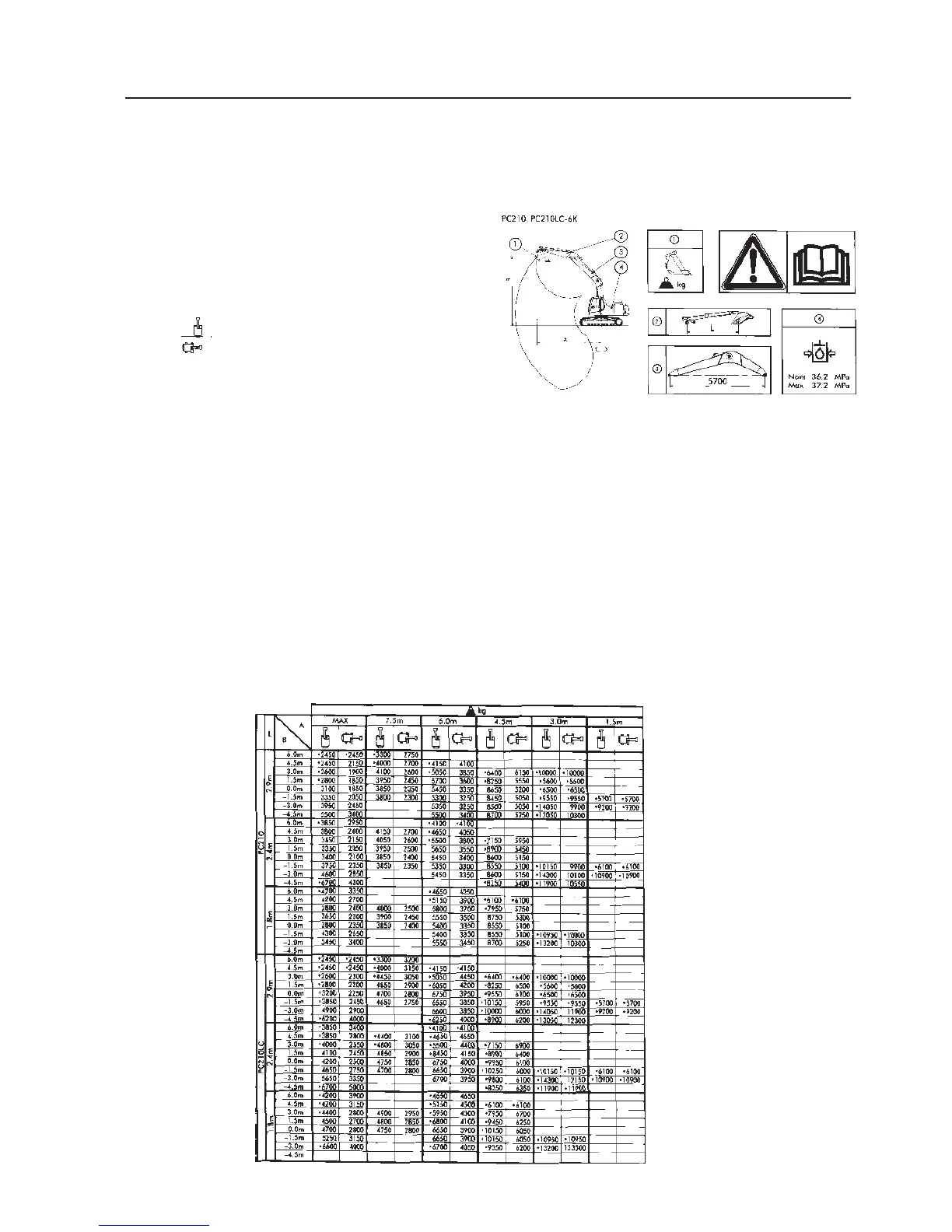

25.2 EXPLANATION OF LIFTING CAPACITY CHART
PC210-6K, PC210LC-6K
LEGEND
A : Reach from swing centre
B : Bucket hook height
Lifting capacity (rating overfront)
Lifting capacity (rating overside)
LEGEND
a Position of lifting point
b Arm length:
c Boom length
d Hydraulic pressure: Nom 36.2 MPa WORKING
Max. 37.2 MPa HOLDING CIRCUIT
WORKING CONDITIONS:
- WITH BUCKET (680 kg 0.9m
3
CECE).
IF OBJECT HANDLING IS PERFORMED WITH OTHER TOOL INSTALLED,
THE WEIGHT DIFFERENCE OF THE TOOL SHALL BE DEDUCTED FROM THE VALUES OF THIS
TABLE.
- WITH FULLY EXTENDED BUCKET CYLINDER.
- ON A COMPACT HORIZONTAL LEVEL GROUND.
- WITH 600 mm WIDTH SHOE.
Loads do not exceed 87% of hydraulic capacity or 75% of tipping capacity (* load limited by hydraulic capacity
rather than tipping).
