INTRODUCTION
PC490LC-10 0-5
INTRODUCTION
This Komatsu machine is designed to be used mainly for the following work:
• Digging work
• Leveling work
• Ditching work
• Loading work
• Demolition work
See “RECOMMENDED APPLICATIONS” on page 2-197 for further details.

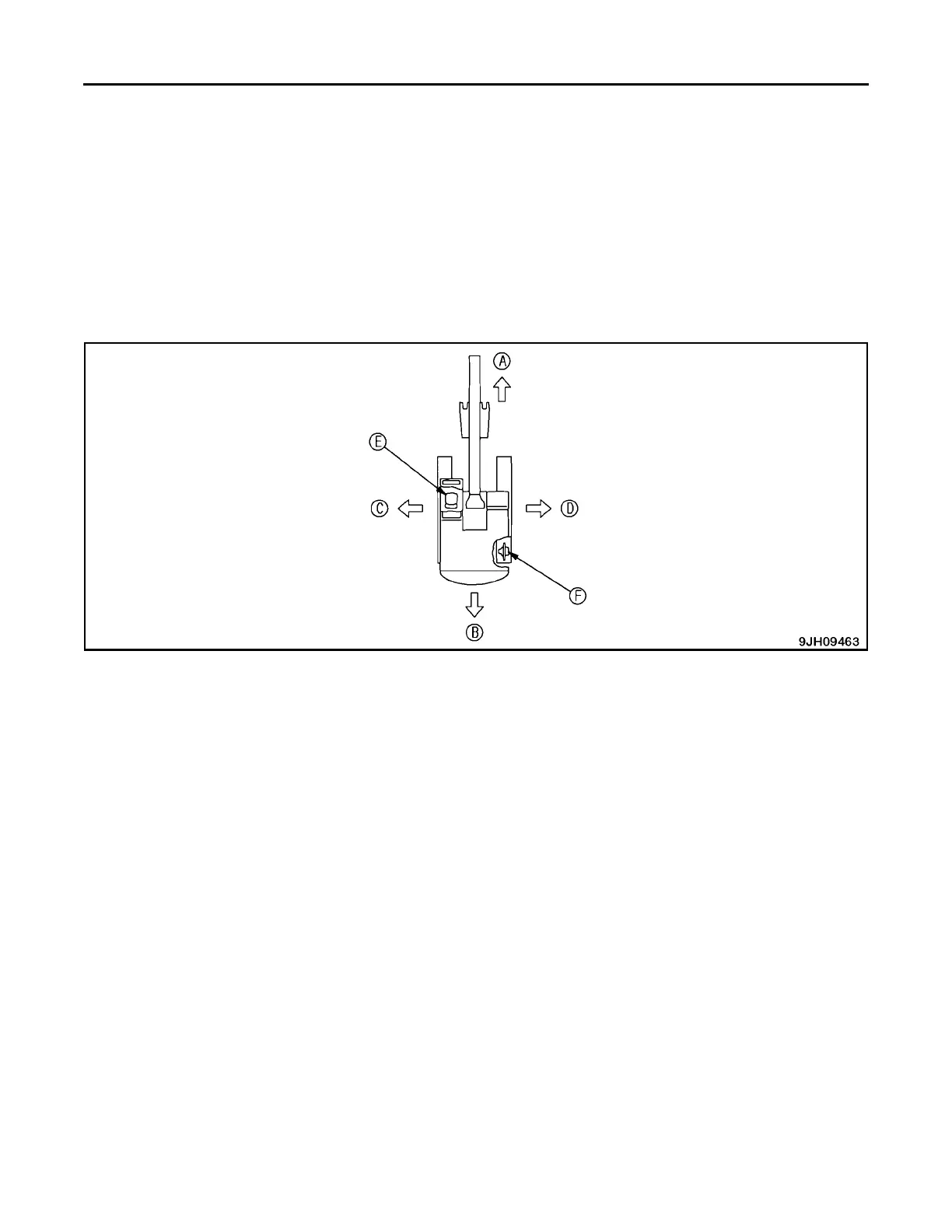

Directions of Machine
In this manual, the terms front, rear, left, and right refer to the travel direction as seen from the operator's seat when the
operator's seat is facing the front and the sprocket is at the rear of the machine.
(A) Front (C) Left (E) Operator’s Seat
(B) Rear (D) Right (F) Sprocket
