(7) Horn switch
(8) Machine monitor
(9) R.H. work equipment control lever
(10) Starting switch
(11) Fuel control dial
(12) Lamp switch
(13) Swing lock switch
(14) Machine push-up switch
(15) Revolving lamp switch (if equipped)
(16) Ceiling window wiper switch (if equipped)
(17) Attachment control pedal (if equipped)
(18) Attachment control pedal (if equipped)
(19) Cigarette lighter
(20) Room lamp switch
(21) Seat heater switch
(22) Engine shutdown secondary switch
(23) Pump secondary drive switch
(24) Swing parking brake cancel switch
(25) Lock lever automatic lock cancel switch
(26) 1st attachment proportional control switch
(27) 2nd attachment proportional control switch (if
equipped)
(28) Breaker switch
(29) Spare switch
(30) Spare switch
(31) Quick coupler switch
(32) Spare switch
(33) Spare switch
(34) Quick coupler switch
(35) Lower wiper switch
(36) Automatic grease system monitor (if equipped)
(37) Additional lamps switch (if equipped)
(38) AUX

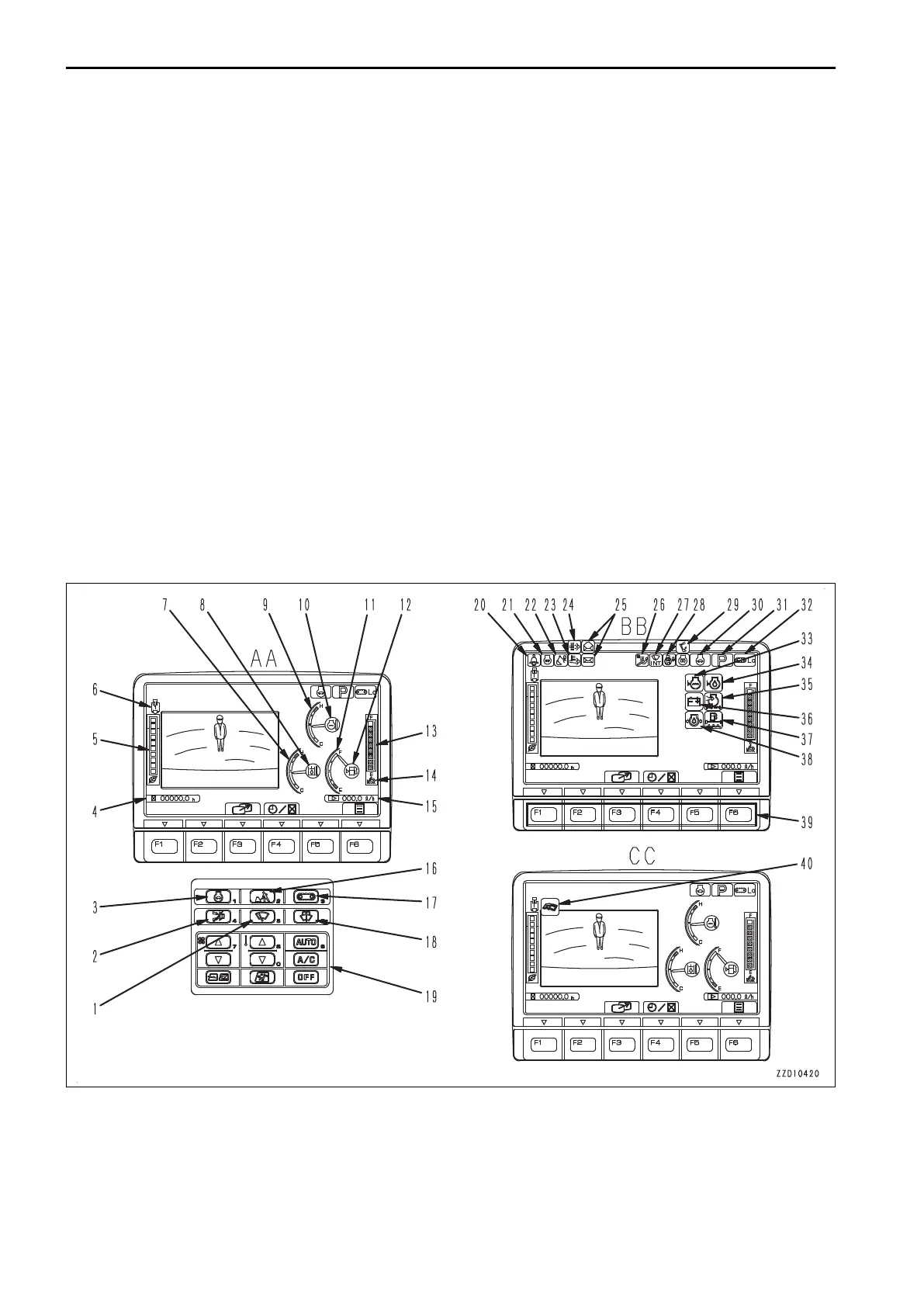

MACHINE MONITOR EQUIPMENT NAME
AA: Standard screen, BB: Check before starting screen, CC: Maintenance time warning screen
(1) Wiper switch
(2) Buzzer cancel switch
(3) Auto-deceleration switch
(4) Service meter/clock
(5) ECO gauge
(6) Camera direction display
(7) Hydraulic oil temperature gauge
(8) Hydraulic oil temperature caution lamp
GENERAL VIEW OPERATION
