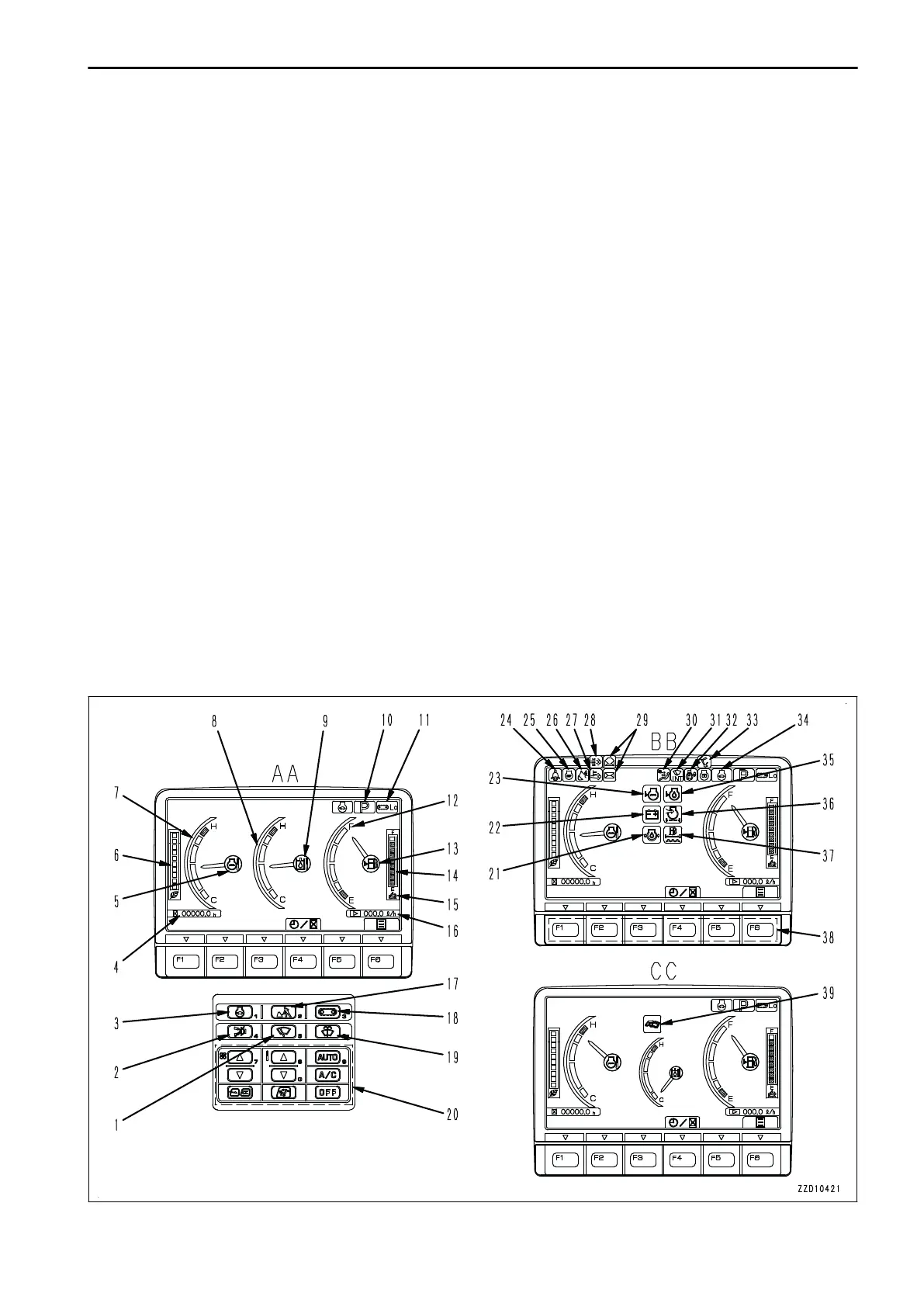

(9) Engine coolant temperature gauge
(10) Engine coolant temperature caution lamp
(11) Fuel gauge
(12) Fuel level caution lamp
(13) DEF level gauge
(14) DEF level caution lamp
(15) Fuel consumption gauge
(16) Working mode selector switch
(17) Travel speed selector switch
(18) Window washer switch
(19) Air conditioner control switch
(20) Seat belt caution lamp
(21) Engine stop pilot lamp
(22) Lock lever pilot lamp
(23) Aftertreatment devices regeneration pilot lamp
(24) Aftertreatment devices regeneration disable pilot
lamp
(25) Message display
(26) Air conditioner pilot lamp
(27) Wiper pilot lamp
(28) Swing lock pilot lamp
(29) Engine preheating pilot lamp or One-touch power
maximizing pilot lamp
(30) Auto-deceleration pilot lamp
(31) Working mode display
(32) Travel speed display
(33) Radiator coolant level caution lamp
(34) Air cleaner clogging caution lamp
(35) Engine oil level caution lamp
(36) Charge level caution lamp
(37) Water separator caution lamp
(38) Engine oil pressure caution lamp
(39) Function switches (F1 to F6)
(40) Maintenance time caution lamp
REMARK
The above figure does not show all of the caution lamp symbols. For details of the caution lamps, see “WARN-
ING DISPLAY (3-17)”.
Displaying only meter
On the standard screen (camera display, meter display), press switch F3, and only the meter is displayed.
For details, see “CAMERA IMAGE SELECTOR SWITCH (3-51)”.
OPERATION GENERAL VIEW
3-7
