LOADING SHOVEL
TRANSPORTATION
TRANSPORTATION
The machine can be disassembled into the machinery, operator's cab, platform, attachment, and counterweight,
and transported in pieces. Please contact your Komatsu distributor when transporting the machine.

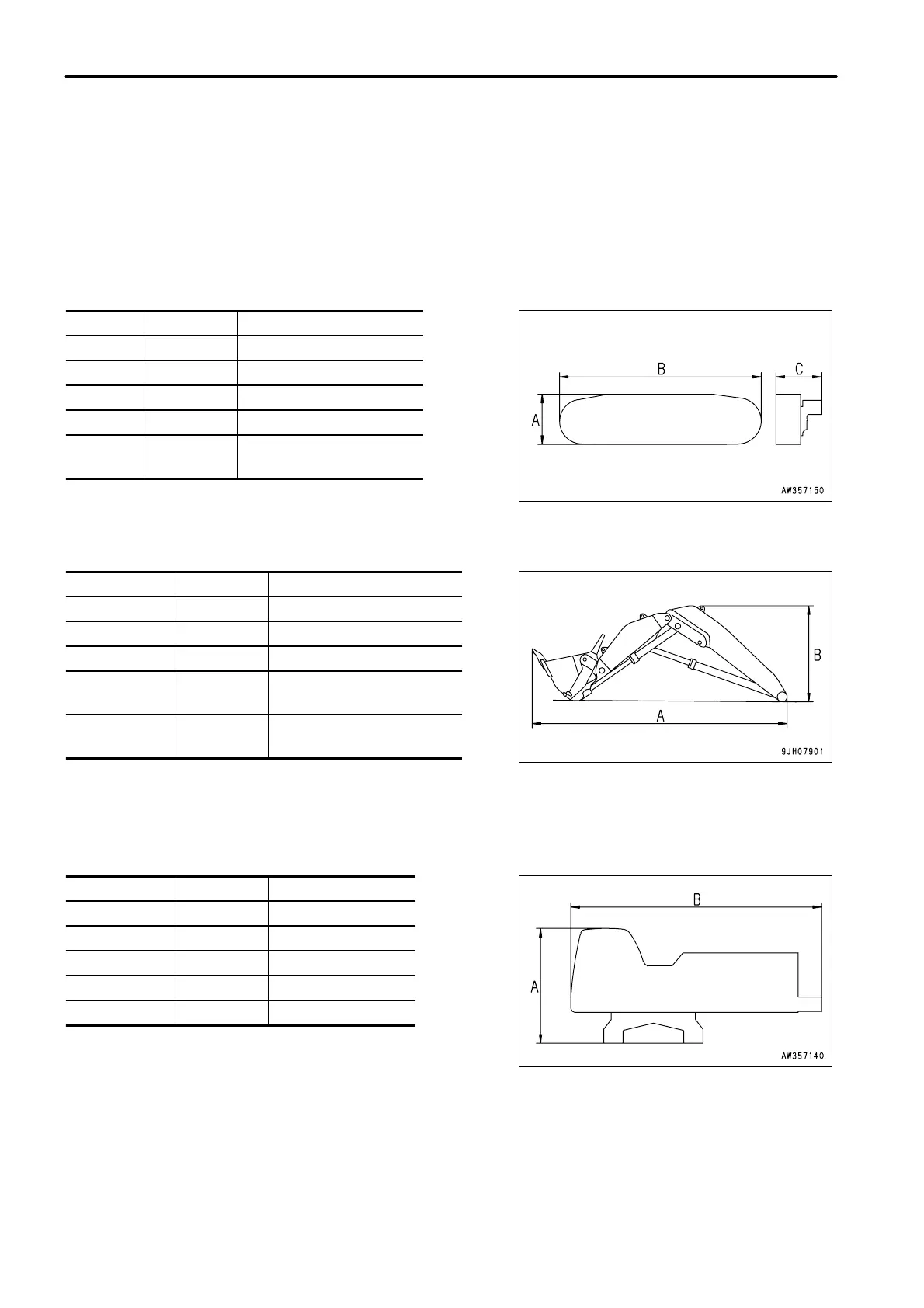

MACHINE CONFIGURATION FOR TRANSPORT
PC750-7 (LOADING SHOVEL)
Undercarriage
Item Unit
Q'ty - 2
A mm (ft in) 1445 (4'9")
B mm (ft in) 5810 (19'1")
C mm (ft in) 1255 (4'1")
Weight kg (lb)
21400 (47187)
[10700 X 2 (23594 X 2)]
Work Equipment
Item Unit
Q'ty - 1
A mm (ft in) 9500 (31'2")
B mm (ft in) 2855 (9'4")
Overall width mm (ft in)
2320 / 2620 (5.1m
3
)
[7'7" / 8'7" (6.7 cu.yd)]
Weight kg (lb)
18700 / 19100 (5.1 m
3
)
[41234 / 42116 (6.7 cu.yd)]
Upper Structure
Secure the upper structure to the platform with a chain and block.
Item Unit
Q'ty - 1
A mm (ft in) 2730 (8'11")
B mm (ft in) 5970 (19'7")
Overall width mm (ft in) 3195 (10'6")
Weight kg (lb) 24800 (54684)
7 - 14
