15-10
140-3 SERIES
TESTING AND ADJUSTING CYLINDER HEAD
REPLACING CROSSHEAD GUIDE
Special tools
1. Removal of crosshead guide
Using crosshead guide puller A, remove the
crosshead guide.

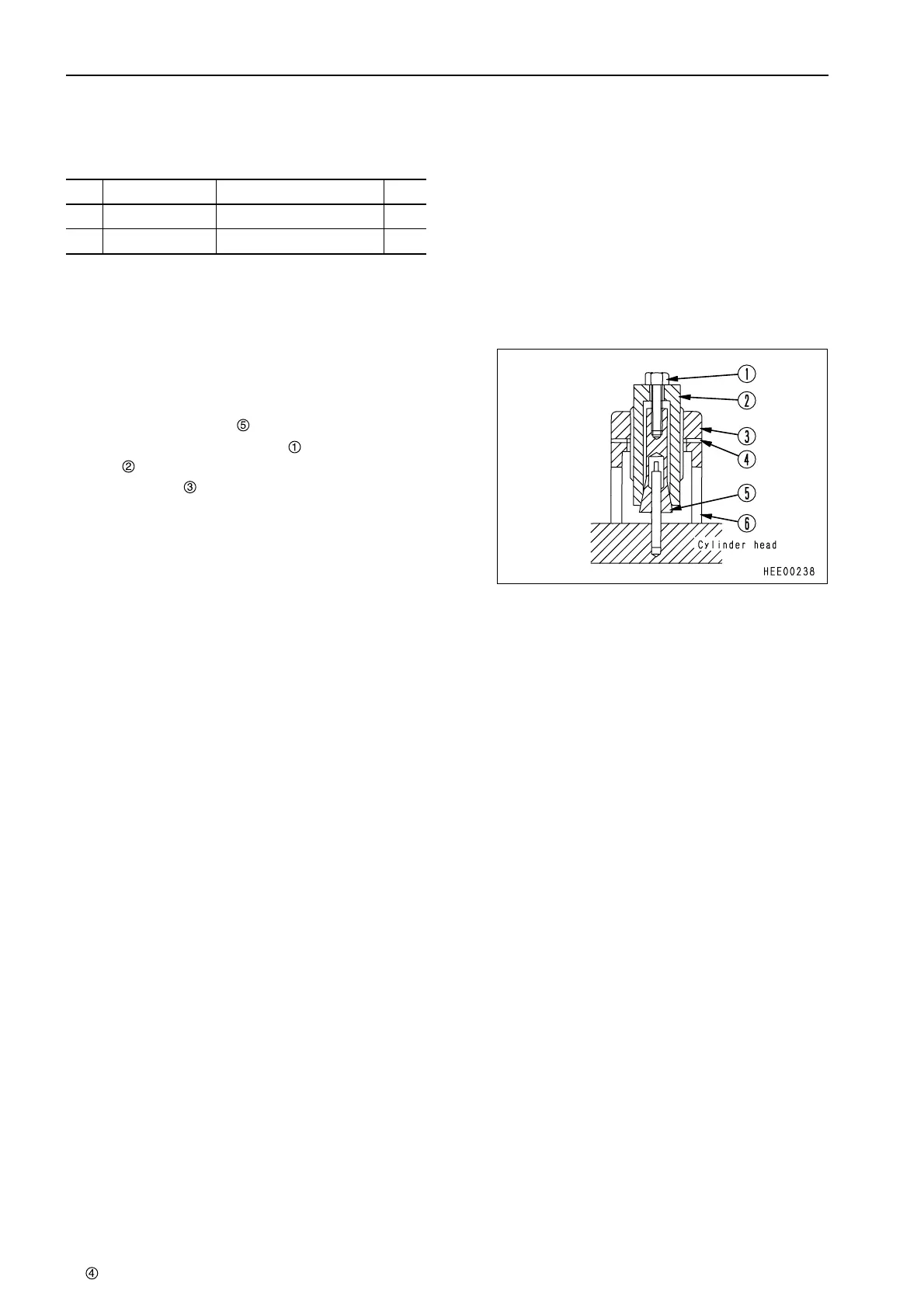

1) As shown in the diagram, grip crosshead
guide with collet of puller.
2) Tighten collet with bolt , and lock sleeve
.
3) Turn nut , and pull out crosshead guide.
4) Remove any burrs or flashes from the
crosshead guide mount.
2. Press fitting crosshead guide
Using tool B, insert the crosshead guide in the
cylinder head, and use a copper bar or plastic
hammer to press fit until the protrusion is within
the permitted tolerance.
Protrusion of crosshead guide (Tolerance):
49 ± 0.5 mm
No. Part No. Part Name Q’ty
A 795-140-6410 Crosshead guide puller 1
B 795-130-1310 Crosshead guide driver 1
