MAINTENANCE
SERVICE PROCEDURE
CHECK AXLE OIL LEVEL, ADD OIL
WARNING
When checking the oil level, apply the parking brake and secure the front and rear frames with the frame lock bar.
After stopping the engine, the parts and oil are at a high temperature. Wait for the temperature to go down before starting the
operation.
Perform this procedure if there is any sign of oil on the axle case.
Inspect the machine on a horizontal surface.
(If the road surface is at an angle, the oil level cannot be checked correctly.)

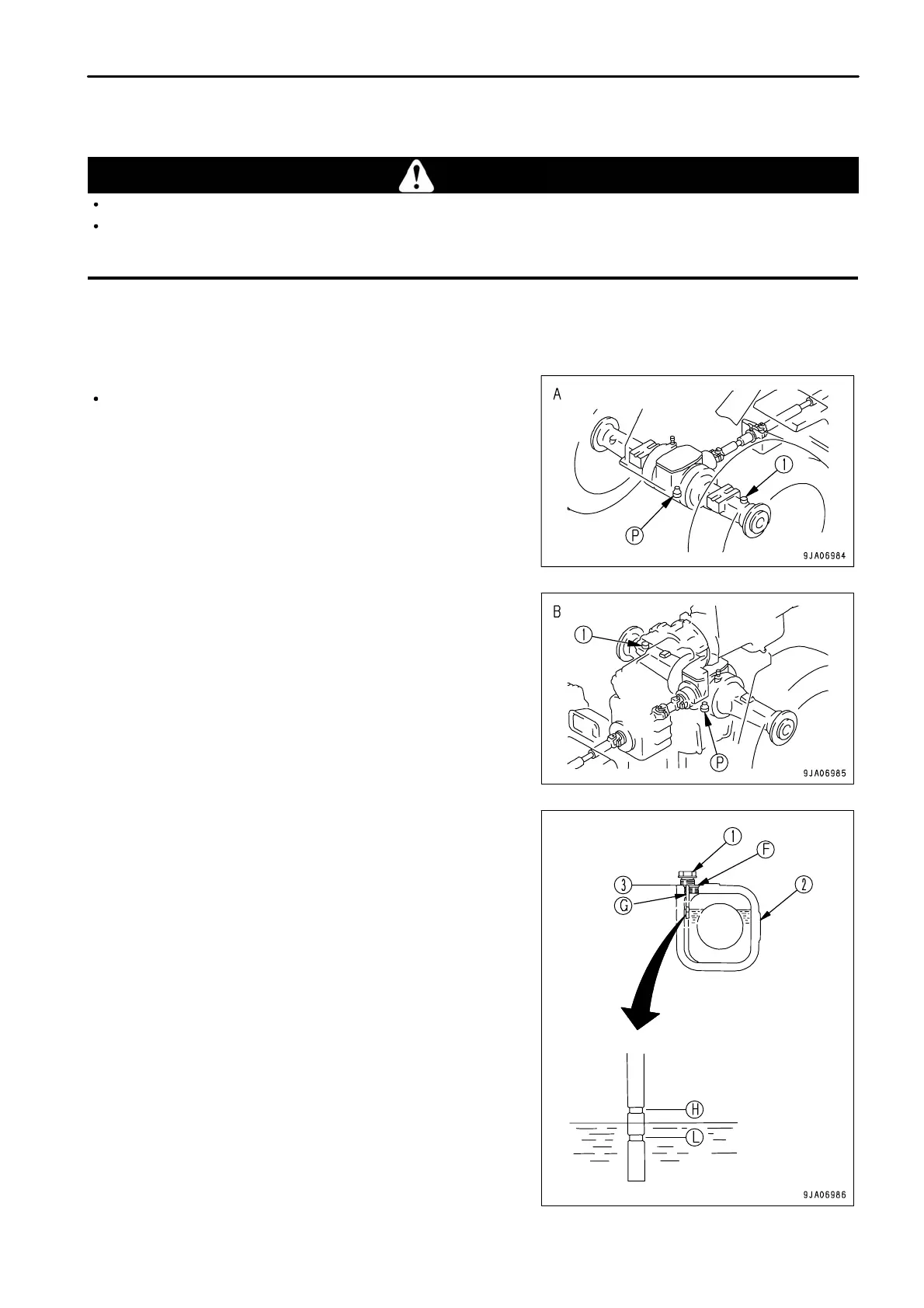

A: Front B: Rear
1.
Stop the engine and remove oil level plug (1).
REMARK
Remove the mud and dirt from around plug (1), then remove the
plug.
2.
With cloth, wipe off any oil adhering to the oil level gauge
attached to plug (1).
3.
Set the oil level gauge (G) as shown in the right diagram.
(2): Axle
(3): Spot facing face)
4.
The oil level should be between the two lines (H) and (L) on the
oil level gauge.
If the oil is below the (L) line, add axle oil through oil filler port
(F).
REMARK
For axles with ASD (Limited-Slip Differential), the brand of
lubricating oil is different. Use the specified lubricating oil.
5.
If the oil level is above the (H) line, drain the excess oil through
drain plug (P), then check the oil level again.
6. If the oil level is correct, install plug (1).
Tightening torque: 127 to 177 Nm (13 to 18 kgm, 94.0 to 130.2
lbft)
4 - 25
