FUSES AND RELAYS
117
3.4.2 VENTILATION, HEATING AND AIR
CONDITIONING FUSES AND
RELAYS

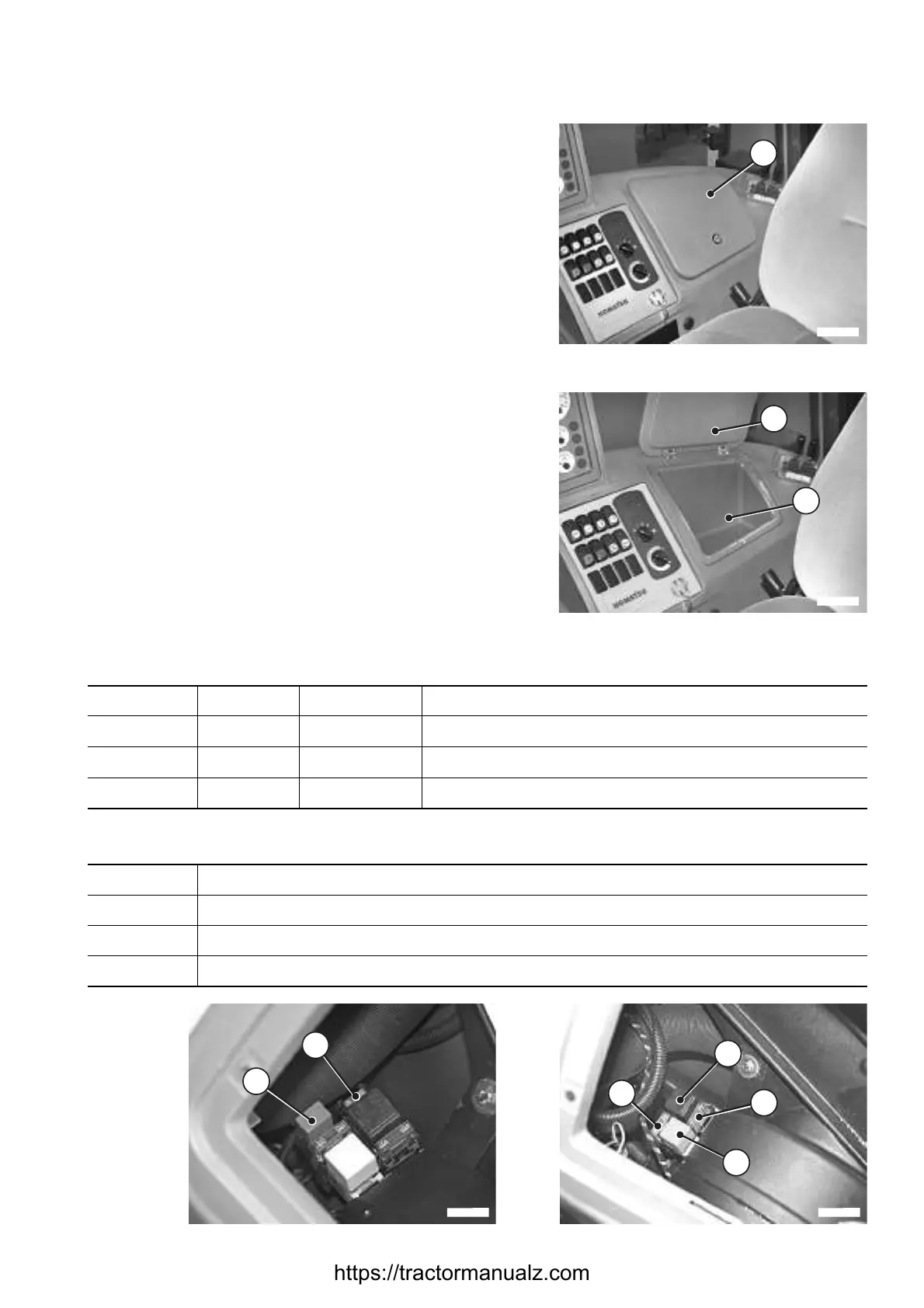

The fuses and relays are grouped on a single base positioned
under the storage compartment and can be reached after
opening the door (1) and removing the container (2).
The following tables indicate the characteristics and the func-
tions of the single fuses and relays.
3.4.2.1 FUSES
3.4.2.2 RELAYS
1
RKAB4830
1
RKAB4840
2
POSITION COLOUR
CAPACITY
(A) CIRCUIT INVOLVED
1
Yellow
20 1
st
and 2
nd
fan speed power supply
2
Orange
40 3
rd
fan speed power supply
3
Brown 7,5 Air conditioning compressor
POSITION DESCRIPTION
4
3
rd
fan speed relay
5
General heating relay
6
Air conditioning compressor relay
RKAB3290
5
2
4
1
RKAB4930
6
3
