Variation 2 - EP2+slow down. MS2 control method with slowdown limit switch. With DynA45 both
direction signals from limit switch must be connected in series as shown in below figures.

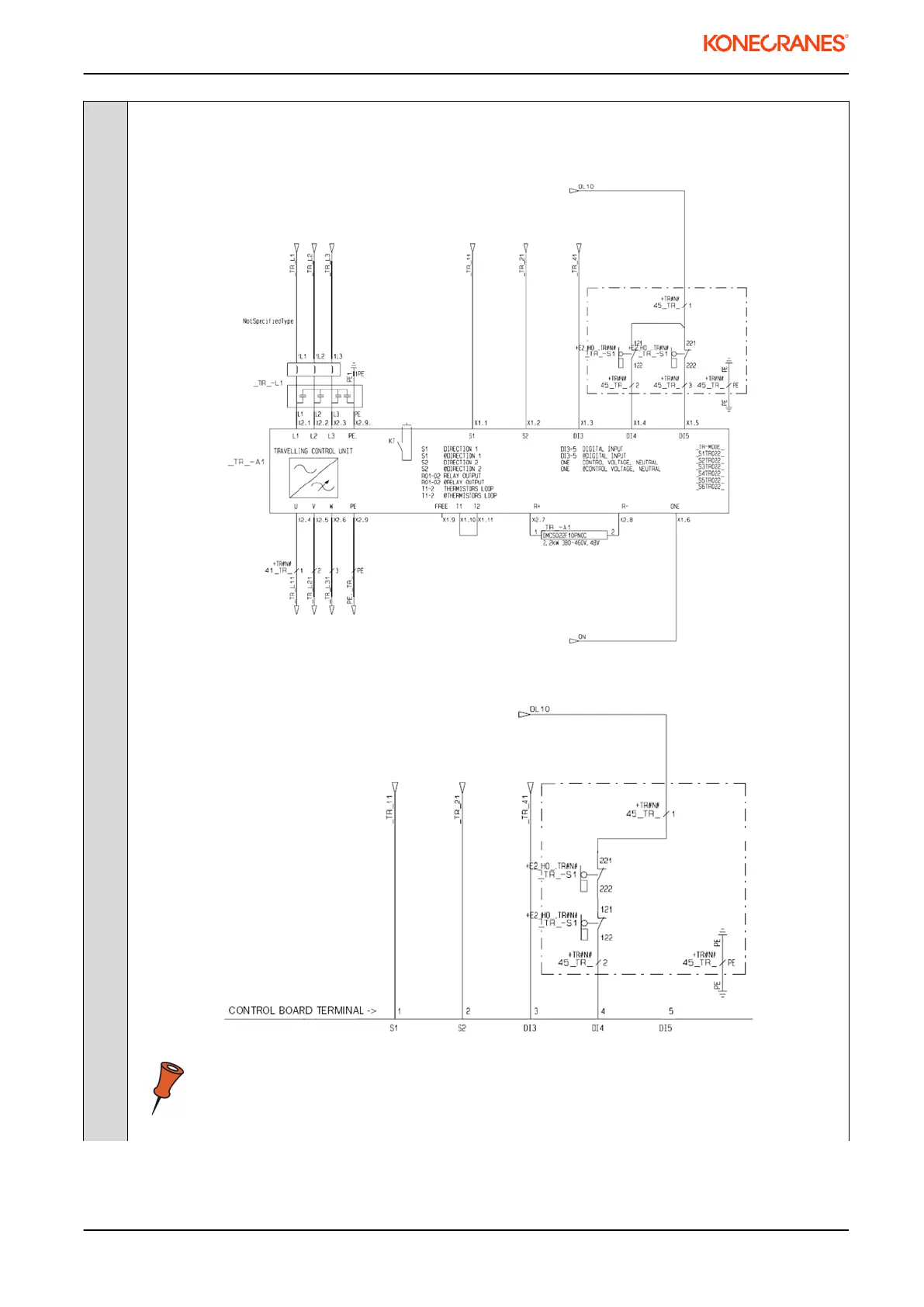

Figure 3. Old inverter + EP2 + slow down
Figure 4. New inverter + EP2 + slow down
Digital input 5 in DynA45 will be deactivated. No connection is needed.
Variation 3 - EP2 / MS2 + stop.
020145en / Revision D / 2015-04-29
15/31
