2.3 About this machine
2
About this machine Chapter 2
2.3.3 Name of parts (MFP) (bizhub C658/C558/C458)
Front

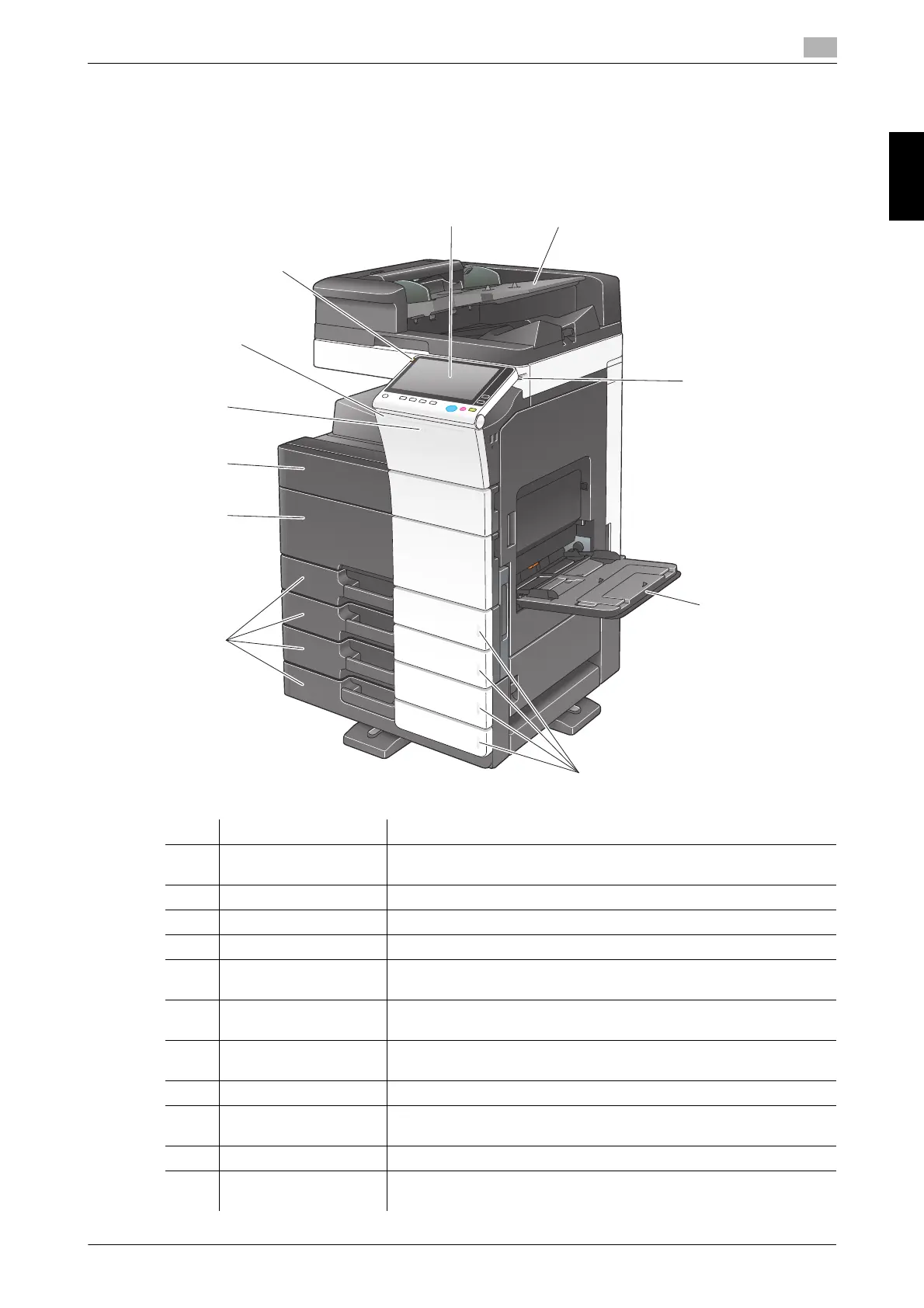

The illustration shows the main unit with Output Tray OT-506, and Paper Feed Cabinet PC-215.
No. Name Description
1 Control Panel Use the Touch Panel or buttons on this panel to operate this ma-
chine.
2 Original Tray Load the original.
3 Stylus Pen Used to operate the Touch Panel.
4 Bypass Tray Used to load custom-size paper or special paper.
5 Paper-Empty Indica-
tor
Flashes orange when a tray runs low on paper and lights up orange
when the tray runs out of paper.
6 Paper Tray Used to load standard-size paper. The number of trays varies de-
pending on the installed Paper Feed Cabinet.
7 Lower Front Door Open this door to replace consumables or to maintenance this ma-
chine.
8 Upper Front Door Open this door to replace a Toner Cartridge.
9 Data Indicator Flashes blue while this machine is receiving a job. If a job is currently
spooled, this indicator lamp lights up blue.
10 Status Indicator Flashes white during printing.
11 Warning Indicator Flashes orange if a warning occurs. Lights up orange if this machine
has stopped due to an error.
6
4
5
10
11
7
8
9
