1. Fit the centre cable into the
slots in the ends of the arms.
2. Using the hex driver screw 2x
grub screws into the arms,
going through the loops on the
cable.
The screws should pass cleanly
through the loops on the ends
of the cable and screw down
flush with the arms. If they feel
tight as you screw them in do
not force them. Back the
screws off, reposition the loops
and try again.

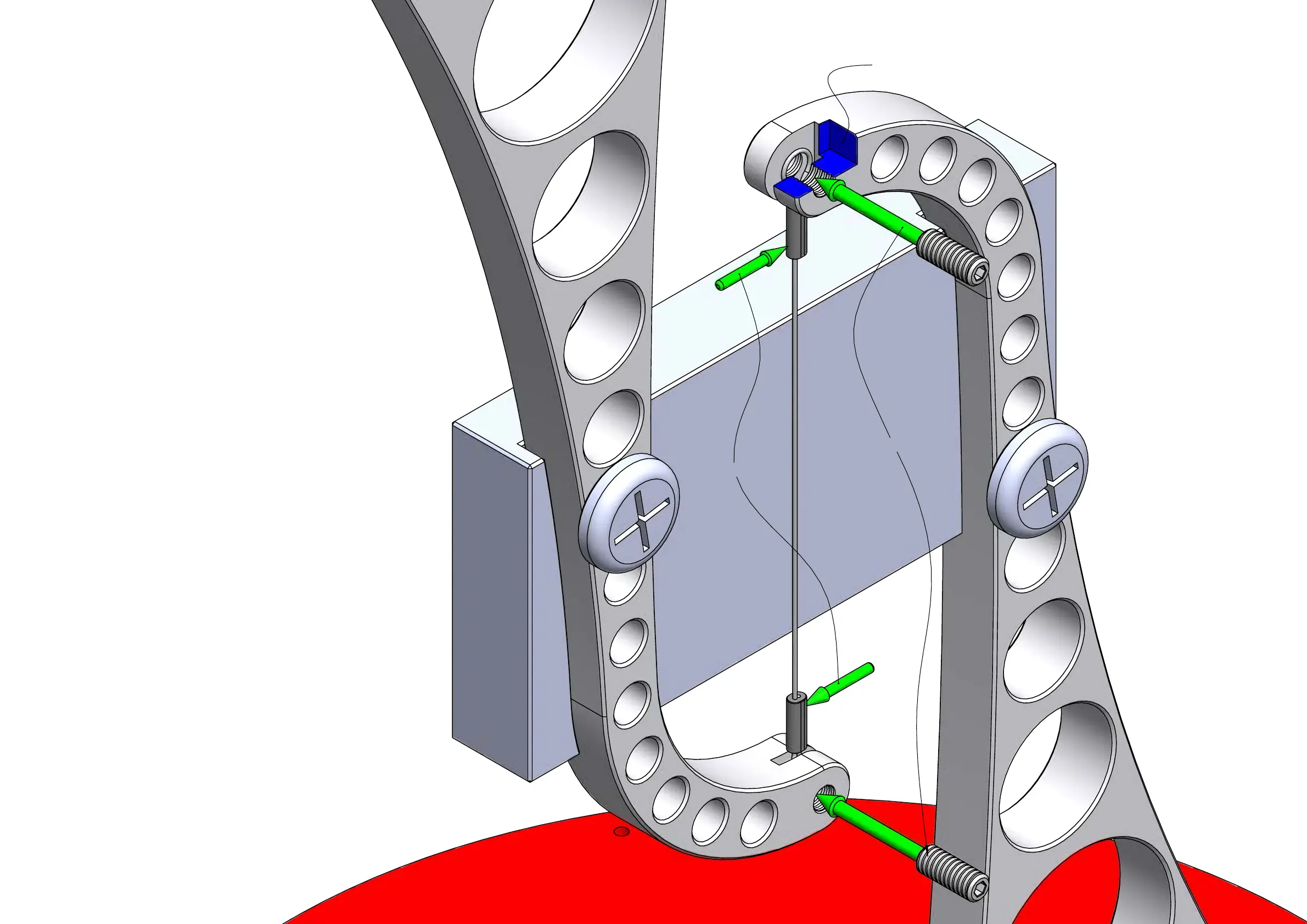

Arm shown cutaway for clarity
1. fit cable
2. Fit screws
Tensegrity cable grub screws assembly instructions page 6 of 14
