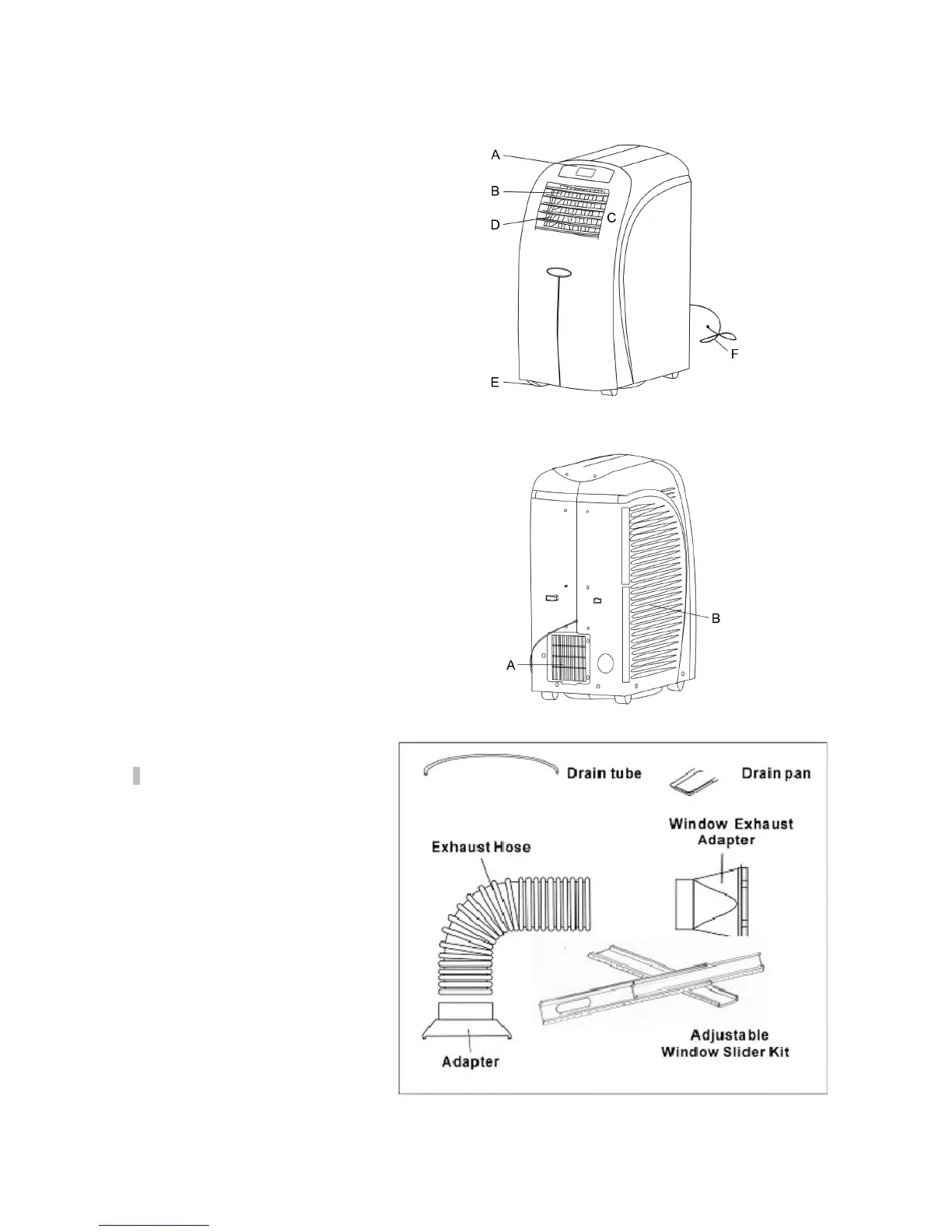

PRODUCT DIAGRAM
FRONT
A. Control panel
B. Vertical air louvers
C. Air outlet
D. Horizontal air louvers
E. Casters
F. Cable (power cord and plug)
BACK
A. Hot air outlet grill
B. Lower air inlet grill
ACCESSORIES
Flexible exhaust hose with adapters
• 3-piece set
• stretches from 36cm to 150cm
Window exhaust adapter
Adjustable window slider kit
• 2-piece set
• adjusts 85cm to 123cm
Drain tube
Drain pan
