Kopp Free-control User Manual

1
2
1
2
3
4
39


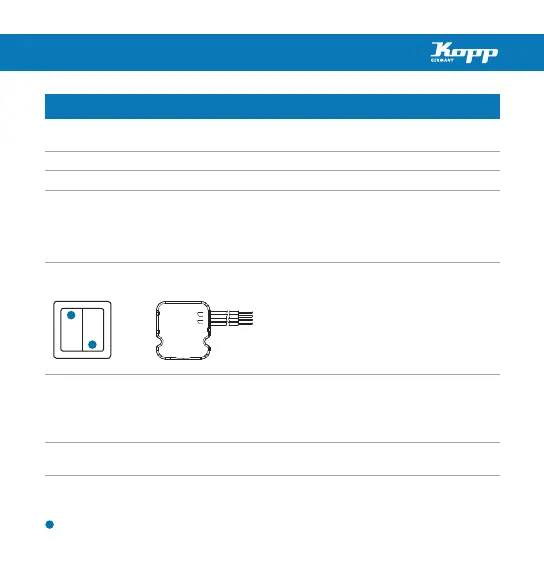

actuation point on operating rocker
Shutter switching mode
Description Connection of the universal radio transmitter to a customary shutter
switch.
Application Individual control of a radio shutter receiver.
Connectivity One shutter switch can be connected to a universal radio transmitter.
DIP switch
Setting
Select mode D. To activate the mode A, remove battery for
at least 30 seconds and then reinsert the battery.
Set DIP switch position 1 to OFF
Set DIP switch position 2 to ON
Pinning diagram Connect 1st switching contact (shutter switch)
to the input channel 1 / 2.
Connect 2nd switching contact (shutter
switch) to the input channel 3 / 4.
Both switch positions (UP/DOWN) must be
teach to the receiver.
Switching
operation
1 Press shutter switch „pull up“:
radio signal „pull up“ is transmitted
2 Press shutter switch „pull down“:
radio signal „pull down“ is transmitted
LED signalling With every signal emission, the universal radio
transmitter‘s LED flashes shortly.
actuation point on operating rocker
