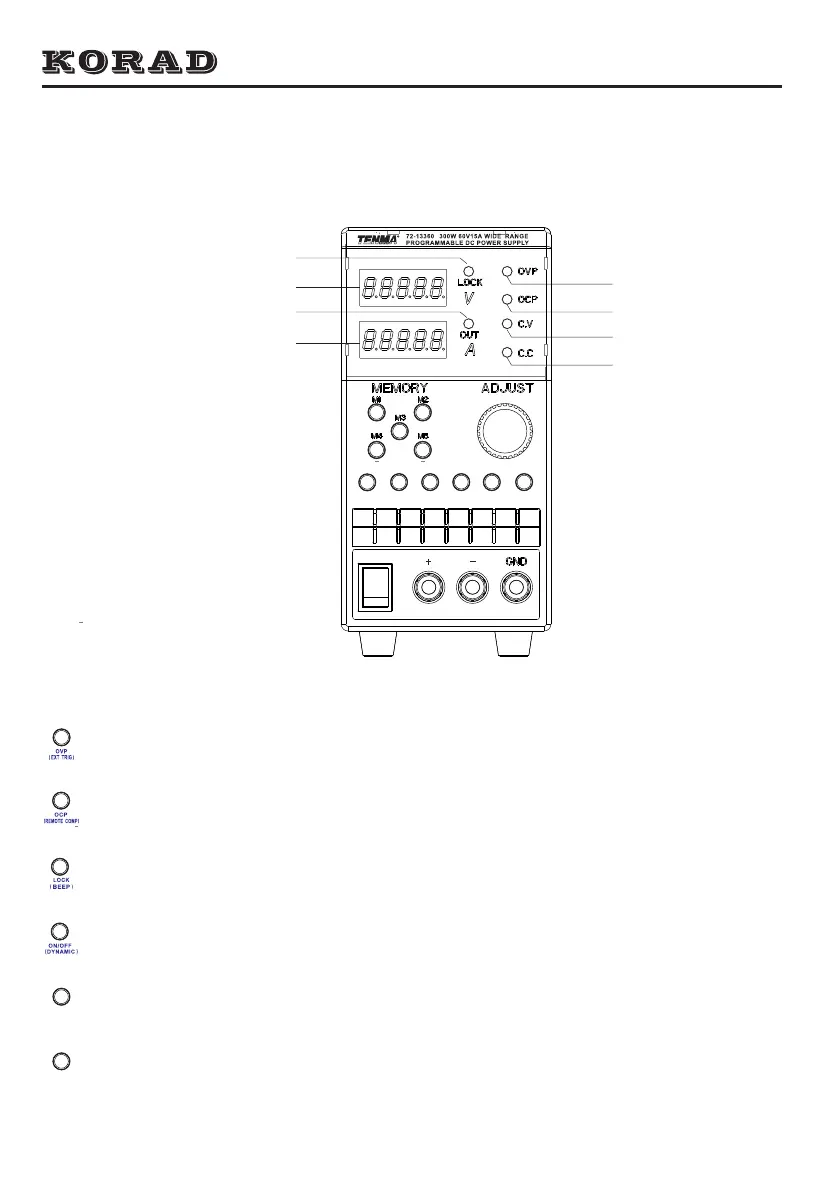

Front Panel Description
2
KWR Series Wide Range Programmable DC Power Supply
Power Output Indicator
Key Lock Indicator
OCP Indicator
OVP Indicator
C.V Indicator
C.C Indicator
OVP
OCP
ON/OFF
VSET
REMO TE C OMP
V/A
ISET
EXT TR G
DYNAMI C
LOCK
PRIORITY
485 ID
( )( )
( BEEP )
( )
( )
( )
VSET
485 ID
( )
V/A
ISET
PRIORITY
( )
OVP function and External trigger function
OCP function and Remote compensation function
Key lock function and Buzzer setting function
ON/OFF output and Dynamic output function
Voltage and current priority function
RS485 ID setting function
Voltage Display
Current Display
