Korenix JetNet 4510 Series User Manual

6
2.2 Wiring Power Inputs
Follow below steps to wire JetNet 4510 redundant DC power inputs.
1. Insert positive and negative wires into V+ and V- contacts respectively of the
terminal block connector
2. Tighten the wire-clamp screws to prevent DC wires from being loosened.
3. Power 1 and Power 2 support power redundancy and polarity reverse protection
functions.
4. Positive and negative power system inputs are both accepted, but Power 1 and
Power 2 must apply the same mode.

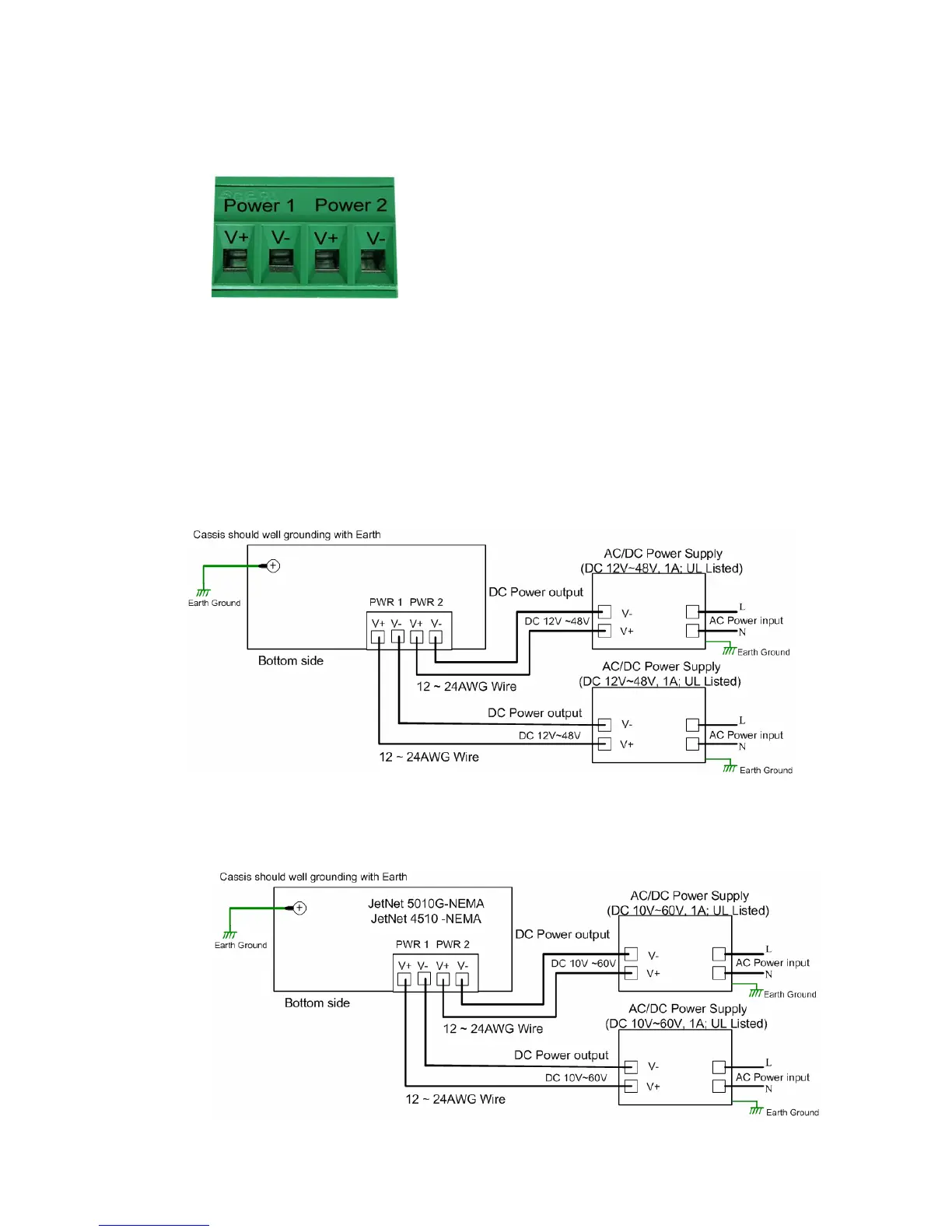

Please refer following figure to see how to install the power system
5. For the JetNet 4510-NEMA model, the power inpt rating is DC 24V with DC 10~60V
range. Therefore, the AC/DC power output range should be between DC 10V to
60V
