Korg EX-800 Service Manual

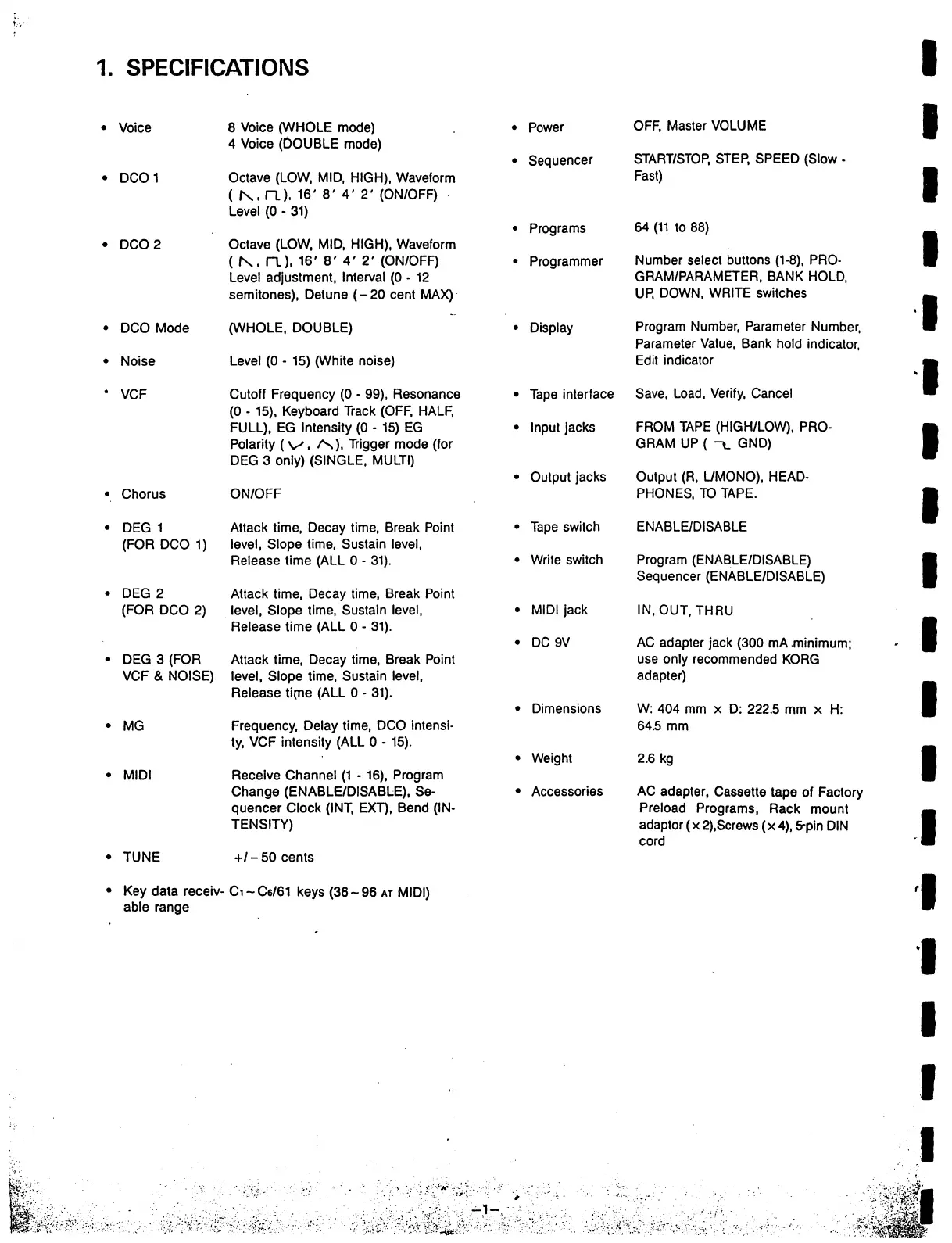

1. SPECIFICATIONS
• Voice 8 Voice (WHOLE mode)
4 Voice (DOUBLE mode)
• DCO 1 Octave (LOW, MID, HIGH), Waveform
( K.n), 16' 8' 4' 2' (ON/OFF)
Level (0 - 31)
• DCO 2 Octave (LOW, MID, HIGH), Waveform
( K, n). 16' 8' 4' 2' (ON/OFF)
Level adjustment, Interval (0 - 12
semitones), Detune (-20 cent MAX)
• DCO Mode (WHOLE, DOUBLE)
• Noise Level (0 - 15) (White noise)
• VCF Cutoff Frequency (0 • 99), Resonance
(0 - 15), Keyboard Track (OFF, HALF,
FULL), EG Intensity (0 - 15) EG
Polarity (\y, /S), Trigger mode (for
DEG 3 only) (SINGLE, MULTI)
• Chorus ON/OFF
• DEG 1 Attack time, Decay time, Break Point
(FOR DCO 1) level, Slope time, Sustain level,
Release time (ALL 0 - 31).
• DEG 2 Attack time, Decay time, Break Point
(FOR DCO 2) level, Slope time, Sustain level,
Release time (ALL 0 - 31).
• DEG 3 (FOR Attack time, Decay time, Break Point
VCF & NOISE) level, Slope time, Sustain level,
Release tirne (ALL 0 - 31).
• MG Frequency, Delay time, DCO intensi
ty, VCF intensity (ALL 0 - 15).
• MIDI Receive Channel (1 - 16), Program
Change (ENABLE/DISABLE), Se
quencer Clock (INT, EXT), Bend (IN
TENSITY)
• TUNE +/-50 cents
• Key data receiv- Ci~Ce/61 keys (36-96 at MIDI)
able range
I
I
I
I
I
