Korg EX-800 Service Manual

i

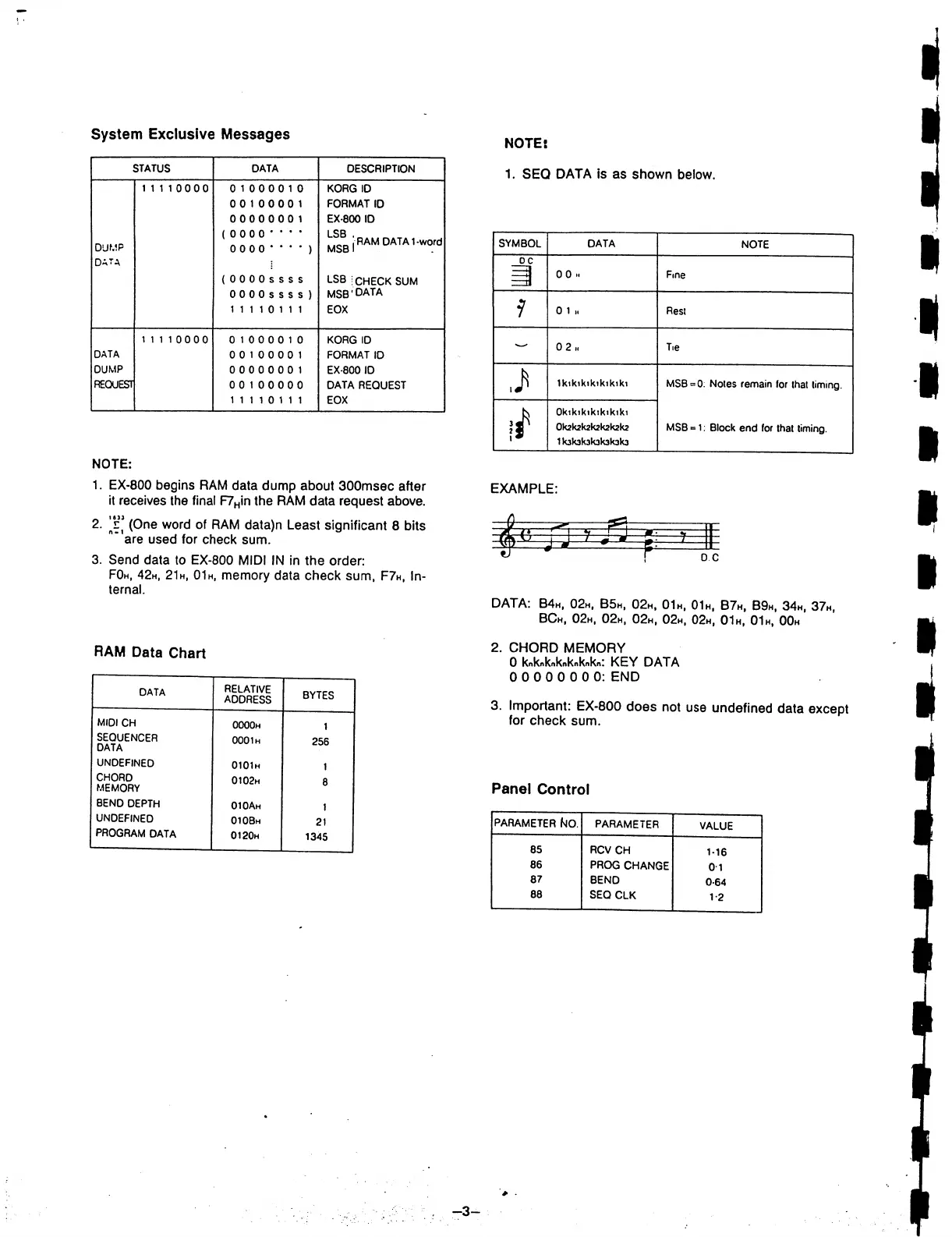

System Exclusive Messages
NOTE:
1. EX-800 begins RAM data dump about 300msec after
it receives the final F7Hin the RAM data request above.
2. £" (One word of RAM data)n Least significant 8 bits
"" are used for check sum.
3. Send data to EX-800 MIDI IN in the order:
F0h, 42h, 21h, 01h, memory data check sum, F7h, In
ternal.
RAM Data Chart
NOTE:
1. SEQ DATA is as shown below.
I
I
i
EXAMPLE:
DC
DATA: B4h, 02h, B5h, 02h, 01h, 01h, B7h, B9h, 34h, 37h,
BCh, 02h, 02h, 02h, 02h, 02h, 01 h, 01 h, OOh
2. CHORD MEMORY
0 knknkokaknknkn: KEY DATA
00000 000: END
3. Important: EX-800 does not use undefined data except
for check sum.
Panel Control
I
I
I
-3-
