1. Introduction
Important things to learn
Front and rear panel

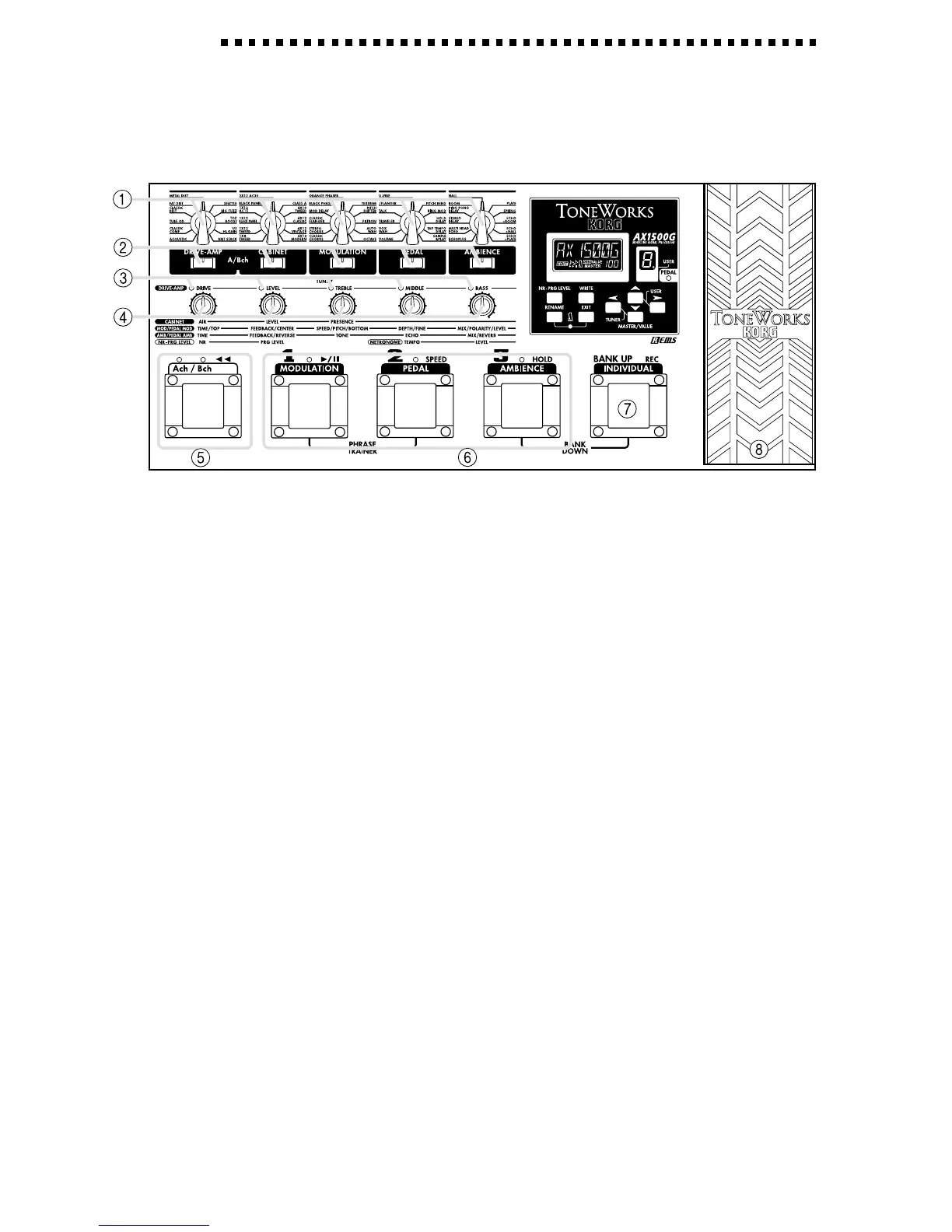

Front panel
1 Effect select knobs
These knobs select the effect model used in each effect block.
2 Effect block select switches
(DRIVE-AMP, CABINET, MODULATION, PEDAL, AMBIENCE)
Press these switches to turn each effect block on/off or to edit it. The switch LED will be
lit (on), dark (off), or blinking (edit).
3 Value LEDs
These LEDs will light to indicate the value knobs that can be used for the selected effect
model. From the left, they correspond to value knobs 1—5.
4 Value knobs
When editing, rotate these knobs to modify the value of the parameter assigned to each
knob. From the left, these are value knobs 1—5.
When not editing, these knobs control the parameters of the effect that is assigned to the
DRIVE-AMP effect by the selected program. (Refer to p.12, “Quick editing for the
DRIVE-AMP effect block.”)
5 Effect channel switch, channel LED
This changes the effect channel of the currently selected program. The LEDs located
above the switch will light correspondingly (channel A is green, channel B is red).
6 Program switches, program LEDs
These switches select programs. The program LEDs (1, 2, 3) located above the switches
will light correspondingly. In Individual mode, these switches turn each effect on/off
individually.
7 Bank switch
Each time this switch is pressed, the bank number will increase by one. The bank
number will decrease by one if you simultaneously press the bank switch and program
switch 3.
8 Expression pedal
This pedal controls the effect that is selected from the PEDAL effect block.
To Next Page
