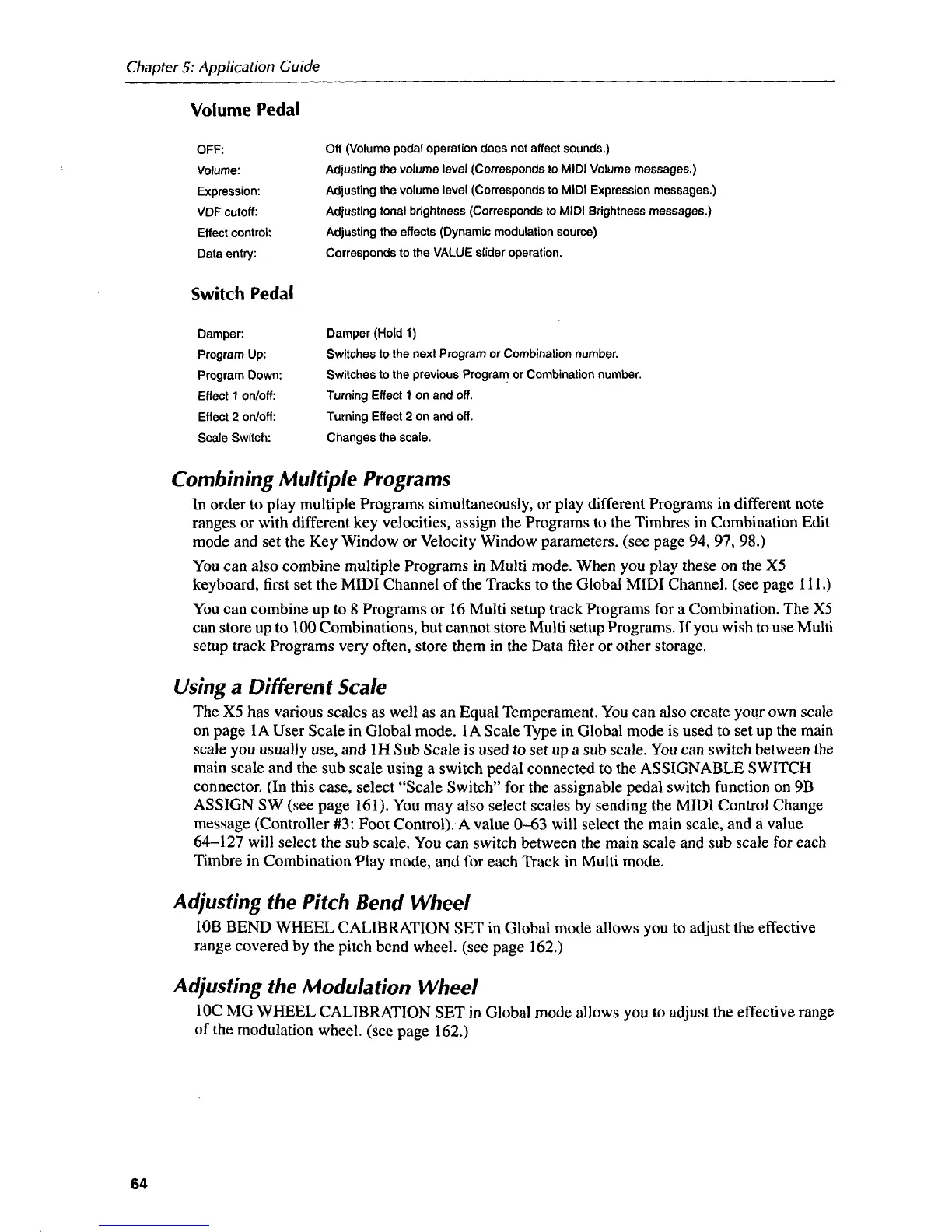

Korg X5 - Combining Multiple Programs; Using a Different Scale; Adjusting the Pitch Bend Wheel; Adjusting the Modulation Wheel
