This document describes the Kospet Optimus/Optimus Pro smartwatch, detailing its features, technical specifications, usage instructions, and troubleshooting.

Function Description

The Kospet Optimus/Optimus Pro is a smartwatch designed to offer a blend of traditional watch aesthetics with modern smart functionalities. It supports a Nano SIM card for cellular connectivity, allowing it to function independently for calls and data. The watch features a touch screen interface for navigation and interaction with various applications. It includes sensors for health and fitness tracking, such as a heart rate sensor and pedometer, and supports GPS/GLONASS for location services. The device also offers a "Long Standby" mode to extend battery life, which can be activated or deactivated as needed.

Important Technical Specifications

Model: Optimus/Optimus Pro
Dimensions: Ø48mm* Thickness 15.6mm, Length 274mm
Operating System: Android 7.1.1
CPU: MTK6739 1.25GHz
RAM: 2GB/3GB
ROM: 16GB/32GB
Display: 1.39' AMOLED
Camera: 8.0MP (5.0MP software update)
Battery: 800mAh
Audio: Speaker and MIC included
USB Type: Pogo
Network Connectivity:
- GSM: 850/900/1800/1900
- WCDMA: 850/1900/2100MHz
- TD-SCDMA: B34, B39
- TDD LTE: B38, B39, B40, B41
- FDD LTE: B1, B2, B3, B5, B7, B8, B12, B17, B20
Wireless: 2.4GHz/5GHz 802.11 a/b/g/n (WIFI), Bluetooth Ver4.0
Sensors: G-sensor, Heart rate sensor, Pedometer, Special action trigger sensor
Positioning: GPS/GLONASS
SIM Card: Nano SIM Card

Usage Features

Initial Setup: Upon first use, the watch requires charging for 1 hour to achieve 7 days of standby with the screen on. After turning on the watch, users need to set their height, weight, and walk target.

SIM Card Installation: The device supports a Nano SIM card but does not support hot-swapping. The watch must be turned off before inserting the SIM card. Users need to manually remove the SIM card back cover to access the slot. It is crucial to protect the SIM card slot from dust and water to prevent damage.

Button Functions:

Power Key / Lock Screen Key / Return Key:
- Press for 3 seconds to boot the device.
- In standby mode, press to lock the screen.
- In the second menu interface, press to return to the previous menu function.
- In standby mode, long press for 2 seconds to adjust the multi-function menu.
- If the watch crashes or the system freezes, long press for 8 seconds to force a restart.
Shortcut Key:
- In the card state (presumably when a SIM card is active), tap to quickly switch to flight mode.

USB Data Cable: The watch uses a dedicated pogo interface data cable with magnetic properties. During charging, the data line interface must not come into contact with other metal products to avoid short-circuit risks.

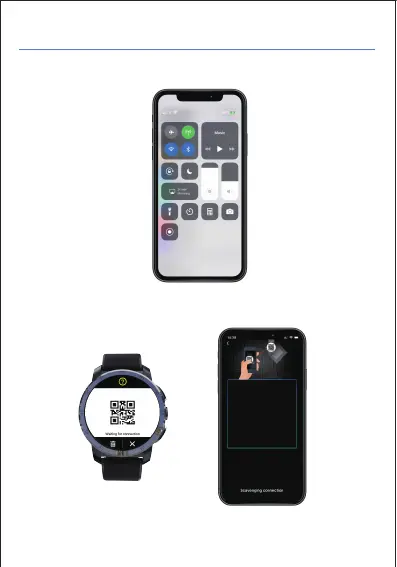

Smartphone Connection (wiiWatch2 APP):

Turn on the watch and complete the initial setup (height, weight, walk target).
Scan the provided QR code to install the wiiWatch2 APP on your smartphone.
Enable Bluetooth on your phone.
Open the wiiWatch2 APP, click "To see WiiWatch," and then scan the QR code displayed on the watch.
Click the "pairing" button on the watch and phone to establish a connection. A successful connection will be indicated on both devices.

Dial Set: From the dial interface, pressing the screen allows users to switch to other dial functions. Dials can be changed by dragging left and right. More dials can be accessed by clicking the "+" icon when swiping right.

Long Standby Mode: To enter "Long Standby" mode, navigate to the menu, select the "Long standby" App, and click the confirmation button (✓). This mode extends battery life. To exit "Long Standby" mode and return to normal standby, press the power button for 3 seconds; the watch will restart.

Maintenance Features

Security Information:

Avoid using the watch in gas stations, chemical plants, or other prohibited areas.
Be aware that radio waves may affect implantable medical devices; consult the manufacturer if using such equipment.
Comply with airline requirements regarding electronic products during flight.
Use only approved power supplies, chargers, and batteries to prevent fire or explosion.
Use only accessories approved by the manufacturer for this model.
Operate the equipment within 0℃ – 35℃ and store accessories within -20℃ – +45℃ to prevent equipment failure due to extreme temperatures.
Do not expose the device to extremely high temperatures or heat sources (sunshine, heaters, microwave ovens, ovens, water heaters) to avoid battery explosion.
If the watch has a non-removable built-in battery, do not attempt to replace it yourself.
Before initial use, fully charge the watch. Battery accuracy improves after repeated charge and discharge cycles.

Troubleshooting (Common Problems):

Watch not connecting to phone:
1. Check if the watch's system settings are consistent with the mobile phone system.
2. Confirm that Bluetooth is enabled on both the watch and phone.
3. Reboot the device or restore factory settings.
Watch frequently disconnecting from phone:
1. Check if the phone is turning off the connection or if system management software is forcing wiiWatch to shut down.
2. Verify that the phone is not connected to other Bluetooth devices causing interference.
3. Restart the phone and smartwatch, or restore factory settings.
Watch not controlling phone music/camera:
1. The watch can only control native Android/iOS camera and music applications, not third-party apps.
2. Only the mobile phone's volume keys can take pictures; the watch controls the camera function.
Watch overheating:
1. Due to limited internal space and waterproofing, heat dissipation can be slow. If the device becomes hot, it is recommended to avoid using multiple applications simultaneously or to stop using Wi-Fi and other energy-intensive applications.
2. For further assistance, contact Kospet through their official forum, Facebook, or after-sales email.

Contact Information:

Forum: http://bbs.kospet.com
Facebook: @Kospet.official
After-sales email: after-sales@kospet.com
