INSTALLATION

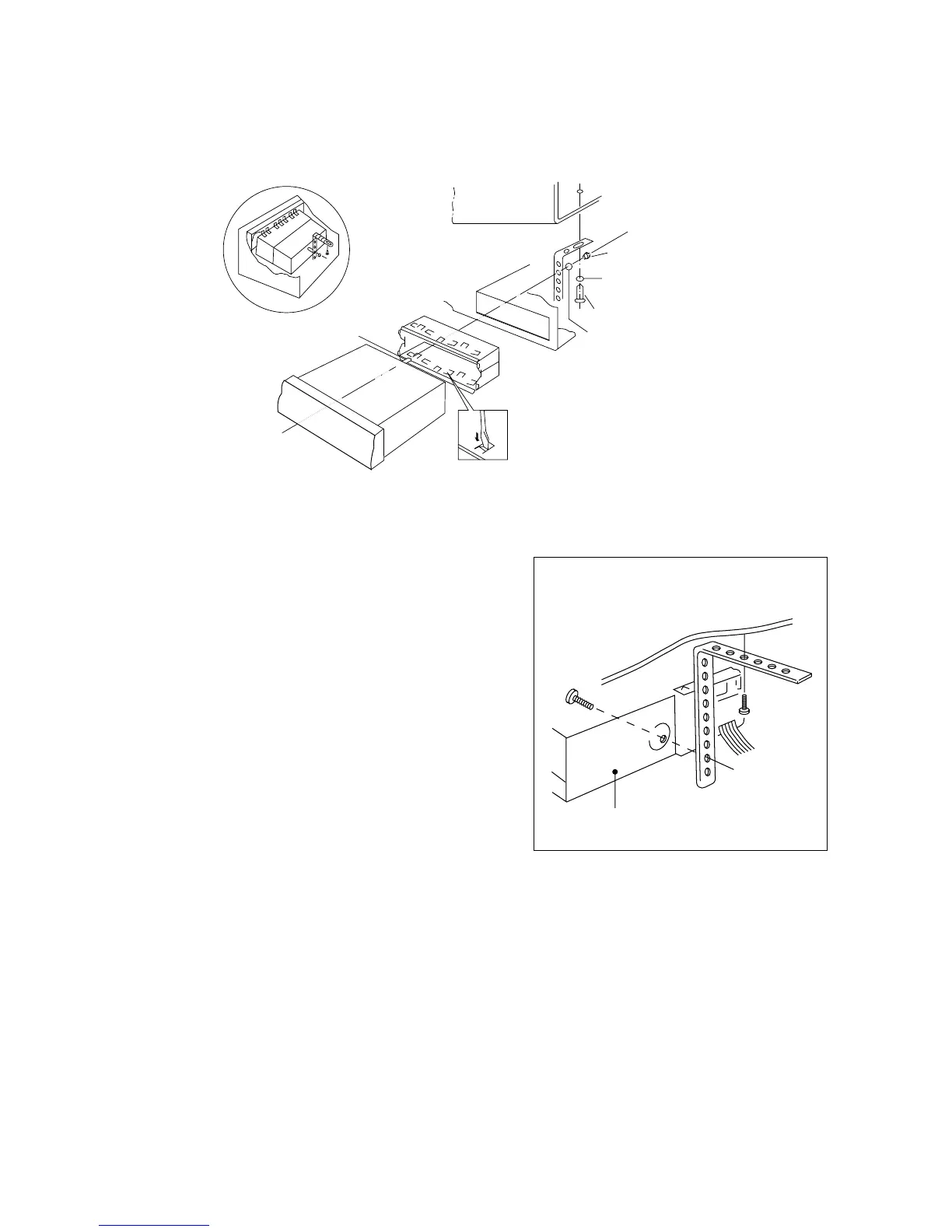

Here is the installation diagram.
Precautions
1. Choose the mounting location where the
unit will not interfere with the normal
driving functions of the driver.
2. Avoid installing the unit where it would
be subject to high temperature, such as
from direct sunlight, or from hot air, from
the heater, or where it would be subject
to dust, dirt or excessive vibration.
3. For safe installation, use the mounting
hardware provided by the manufacturer.
Bracket
Fire Wall
DASH BOARD
HEX NUT
SPRING WASHER
TAPPING SCREW
PLAIN WASHER
CONSOLE
MOUNTING HOUSING
METAL MOUNTING STRAP
HEX BOLT
To Next Page
