Parts Required:
page 10
12’x14’ assembly manual
H x4
G x4
#
9
#9
#9
G
H

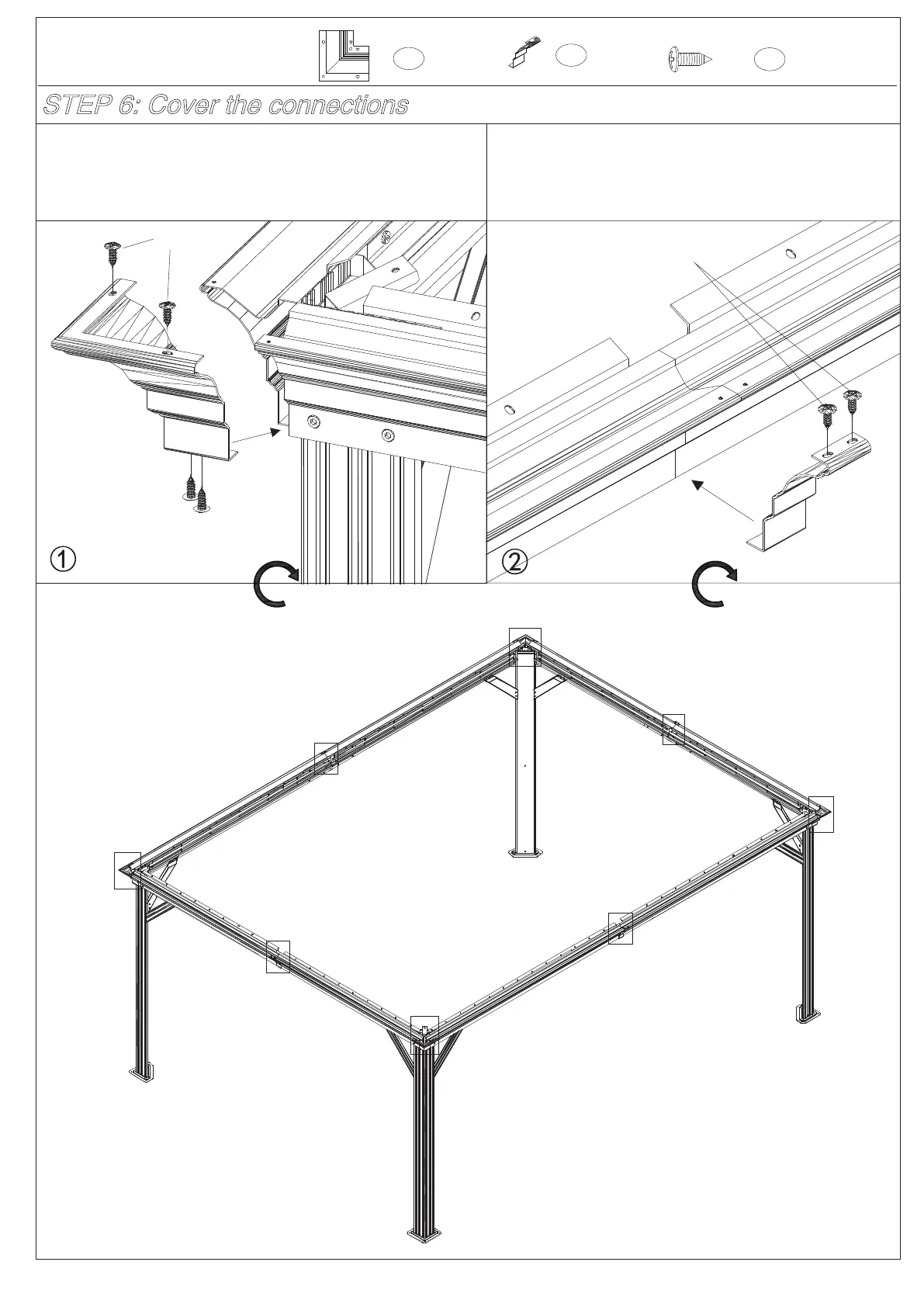

1. Finish connecting beams using Corner
Covers (Part G) and #9 screws as
shown in diagram.
STEP 6: Cover the connections
2. Affix middle beams using Joint
Covers (Part H) with #9 screws as
shown in diagram.
X4X4
#9 x24
