page 17
12’X14’ assembly manual
Snap Bracket (Part Z, Z1, Z2, Z3, Z4) to roof panel edges as shown in diagram.
(with snaps facing upwards)
V11
V12
V43
Z3
Z4
V44 V45 V46
X2
Parts Required:
V11
V43
Z
Z
Z
Z
Z
Z
Z3
Z4
Z1
Z1
Z2
Z2
V44
V45
V46
V12
H3 x1
1. Wearing protective gloves is recommended.
2. In order to avoid Z-Clips (plastic brackets) from sliding off prior to assembly, place
double-sided adhesive tape (Part H3) to the down side (bottom) edge of the roof panels
where the brackets (Part Z, Z1, Z2, Z3, Z4) are supposed to attach.
Z2
Z1
Z
Tip:

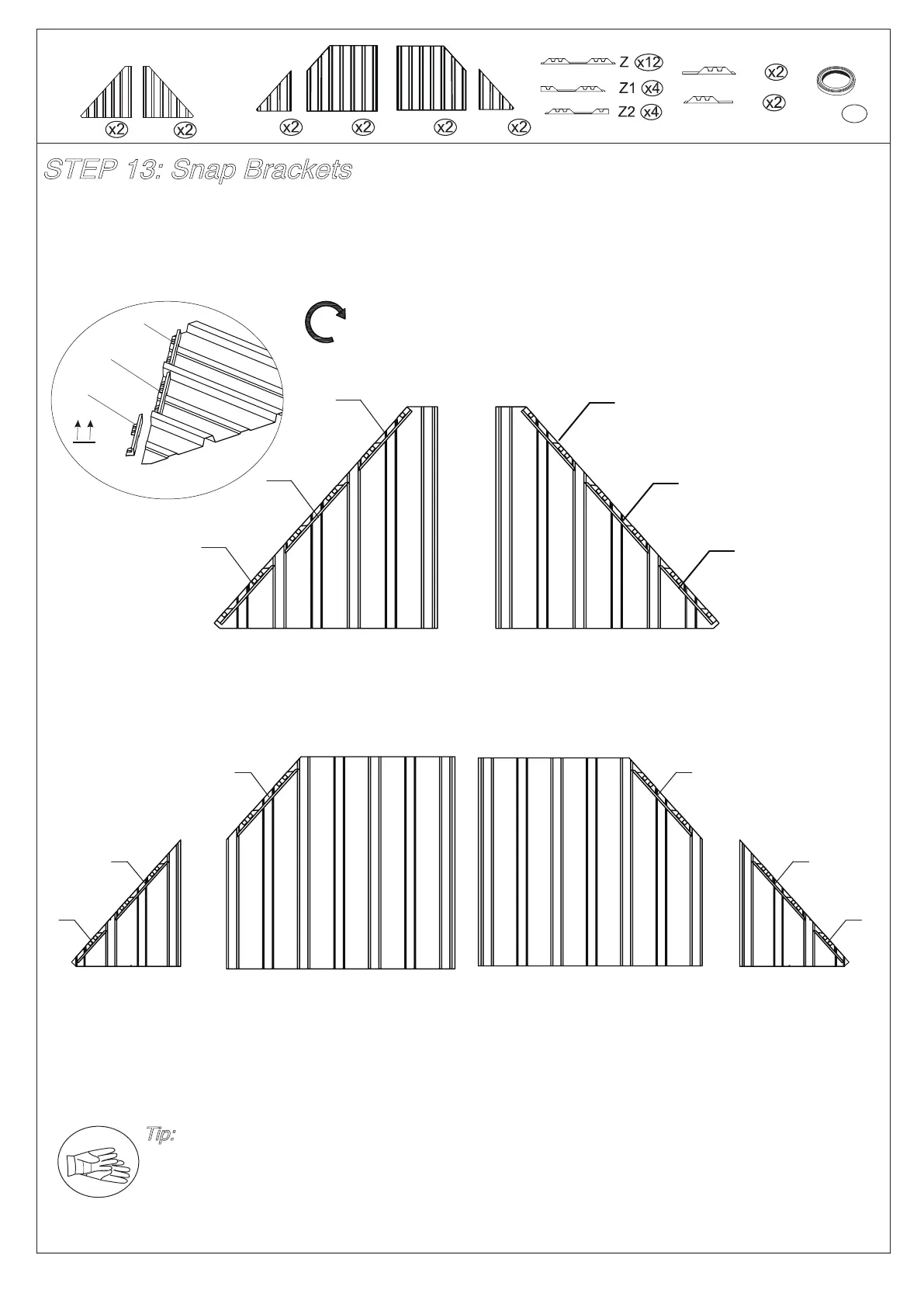

STEP 13: Snap Brackets
To Next Page
